Description
- Schneider TSXAEY1600 | Traceable Premium PLC Asset
Unboxing & Physical Snapshot
- Model & Brand: Schneider Electric TSXAEY1600
- Product Type: Modicon Premium Analog Input Module
- Application: PLC analog acquisition module for Modicon Premium automation platforms. The module provides 16 high-level analog inputs with 12-bit conversion capability for voltage and current measurement applications.
- Input Channels: 16 analog input channels
- Approximate Physical Dimensions (W × H × D):
- Estimated: 32 × 130 × 125 mm
- Standard Modicon Premium rack module format.
- Estimated Shipping Weight: Approximately 0.35–0.50 kg including ESD packaging.
- What’s in the Box:
- Schneider TSXAEY1600 analog input module
- Two 25-way SUB-D connector interfaces
- Identification label
- Protective anti-static ESD packaging
- Technical documentation when supplied with controlled inventory
Product Introduction
The TSXAEY1600 installs directly into the Schneider Modicon Premium PLC rack architecture, where it provides the analog measurement interface between field instruments and the CPU processing system. Designed for industrial monitoring applications, the module accepts standard voltage and current signals from transmitters, sensors, and instrumentation loops. (This type of I/O card is often retained in brownfield plants because validated PLC programs depend on its exact channel mapping.)
Treat this module as a controlled automation spare. Inspect the rack connector, SUB-D interfaces, housing condition, and PCB surfaces before installation. The module does not contain a user-accessible program, but configuration parameters and channel assignments must match the existing Premium PLC application to avoid commissioning errors.
Core Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Schneider Electric |
| Model Number | TSXAEY1600 |
| Product Family | Modicon Premium |
| Module Type | Analog Input Module |
| Number of Inputs | 16 analog inputs |
| Input Type | Voltage and current |
| Current Ranges | 0–20 mA, 4–20 mA |
| Voltage Ranges | 0–5 V, 1–5 V, 0–10 V, ±10 V |
| A/D Conversion | 12 bits |
| Conversion Accuracy | Up to 0.1% of full scale at 25°C (range dependent) |
| Nominal Read Cycle | 51 ms |
| Fast Read Cycle | 3 ms + 3 ms × number of channels used |
| Isolation | 1000 Vrms between channels/bus and channels/ground |
| Electrical Connection | Two 25-way SUB-D connectors |
| Power Supply | 5 VDC rack supply |
| Current Consumption | 270 mA at 5 VDC |
| Power Consumption | Approximately 1.35 W |
| Heat Dissipation | Low-power PLC rack module dissipation |
| Processor | Embedded signal processing electronics |
| Memory | Internal configuration storage |
| Firmware | Factory-installed module firmware |
| Mounting Method | Modicon Premium rack backplane |

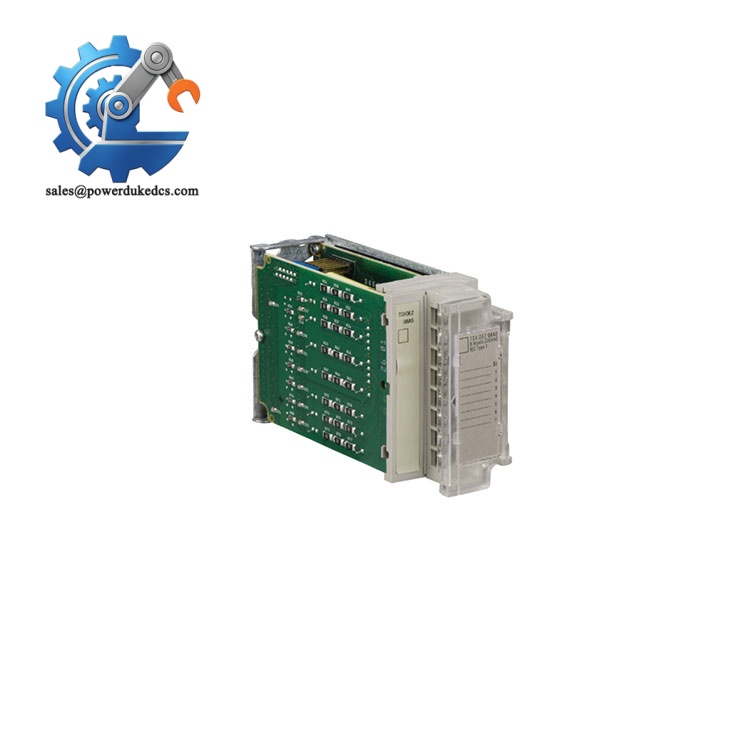

- Schneider TSXAEY1600
Global Compliance & Industry Certifications
Expected compliance considerations for the Schneider include:
- CE Mark
- RoHS compliance
- EMC compliance for industrial PLC installations
- UL/cUL Listed or Recognized status may apply depending on the complete control system configuration
- ATEX/IECEx generally does not apply to the module itself unless installed within a certified hazardous-area automation system.
- Marine approvals (DNV GL) are generally not applicable for standard Modicon Premium installations.
The CE marking is important because analog modules handle low-level measurement signals that can be affected by electromagnetic interference. Proper EMC compliance helps maintain reliable signal acquisition in industrial environments.
Verify specific lot certifications with OEM.
Long-Term Storage & Asset Preservation Guide
- Keep the inside its original anti-static ESD shielding bag. Protect the SUB-D connector pins from oxidation and contamination.
- Maintain warehouse humidity below 60% RH to protect PCB coatings and connector contacts.
- Store the module in a stable temperature environment and avoid repeated hot/cold cycling, which can create condensation inside sealed electronic assemblies.
Check the rack connector before installation.
For long-term spare inventory, record the hardware revision, serial number, and storage inspection date. Older Premium platform components often remain in service for decades, making traceability essential during maintenance audits.
Physical Installation Prerequisites
- Install only in a compatible Schneider Modicon Premium PLC rack.
- Confirm rack addressing and module position before replacement.
- Inspect the backplane connector for contamination or bent contacts.
- Secure the module locking mechanism before applying power.
- Verify field wiring through the correct SUB-D connector arrangement.
- Maintain cabinet ventilation and leave approximately 50 mm clearance above and below rack assemblies where cabinet design permits.
- Ensure PLC cabinet grounding is properly connected.
- Use grounded ESD protection when handling the module.
Buyer’s FAQ (Logistics & Compliance Focus)
Q: What HS Tariff Code is commonly reviewed for the Schneider ?
A: PLC input modules are commonly evaluated under HS 8538.90 as parts of electrical control equipment. Final classification depends on customs interpretation and the importing country’s regulations.
Q: Why does Country of Origin (COO) documentation matter for this PLC module?
A: COO supports customs clearance, maintenance traceability, and industrial asset records. The COO should match the commercial invoice, packing list, and module identification label.
Q: Is shipping insurance recommended for the ?
A: Yes. Although lightweight, the module contains precision analog conversion electronics and connector assemblies. Use ESD protection, impact-resistant packaging, and declared-value freight coverage.
Q: Does the include the latest firmware pre-loaded?
A: The module contains factory firmware, but the exact revision depends on production history. Verify firmware compatibility and PLC configuration before installation.
