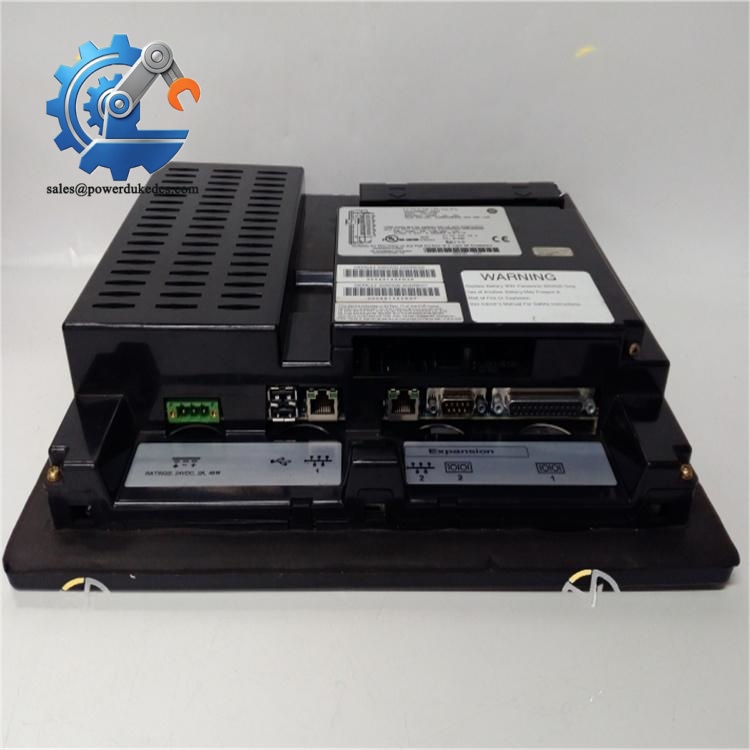

Schneider HMIGTO5310 | Original Harmony GTO Spare Unit

Description

1. Schneider HMIGTO5310 | Original Harmony GTO Spare Unit

Unboxing & Physical Snapshot

• Brand & Model: Schneider Electric HMIGTO5310
• Product Family: Harmony GTO / Magelis GTO Human Machine Interface (HMI).
• Product Type: 10.4-inch TFT color touchscreen operator terminal.
• Primary Function: Provides graphical operator visualization, machine control interface, alarm display, and communication access between operators and industrial controllers.
• Display Size: 10.4-inch TFT LCD.
• Resolution: 640 × 480 pixels (VGA).
• Internal Memory: 96 MB application memory.
• Approximate Physical Dimensions (W × H × D): 272.5 × 214.5 × 57 mm.
• Panel Cutout Dimensions: 259 × 201 mm; compatible panel thickness range approximately 1.6–5 mm.
• Estimated Shipping Weight: Approximately 2.0 kg for the main unit; packaged shipping weight varies with protective materials.
• Mounting Style: Flush panel mounting using four screw clamps.
• Mechanical Features:
  • Front touchscreen glass assembly
  • Industrial plastic enclosure
  • Rear communication ports
  • Mounting clamp points
  • Status indicator area
• Protection Rating:
  • Front panel: IP65 when properly installed in enclosure
  • Rear housing: IP20
• Cooling Method: Natural air circulation.
• What’s in the Box:
  • Schneider HMIGTO5310 HMI terminal
  • Mounting clamps
  • Protective packaging
  • Installation accessories when supplied
  • Documentation if included

Product Introduction

The Schneider HMIGTO5310 is installed directly into the operator panel of an automation cabinet, acting as the visual and control interface between plant personnel and the underlying PLC or machine controller. The unit communicates through industrial interfaces including Ethernet, RS-232C, RS-485, and USB connections (which is critical for machine diagnostics and controller integration during maintenance activities).

This HMI should be managed as a controlled electronic spare, not ordinary display equipment. Inspect the touchscreen surface, rear connectors, mounting clamps, and enclosure seals before installation. Check the storage date. LCD components, backlight assemblies, and connector contacts can degrade during extended warehouse storage even when the enclosure remains undamaged.

Core Technical Specifications

Schneider HMIGTO5310

Global Compliance & Industry Certifications

Expected regulatory approvals and compliance considerations for the Schneider HMIGTO5310 include:

• CE Mark — confirms compliance with applicable European EMC requirements for industrial electronic equipment.
• UL/cUL Recognition — supports use within approved industrial control installations.
• IEC 61131-2 Compliance — relates to programmable controller equipment environmental requirements.
• IEC 61000-6-2 Compliance — covers industrial electromagnetic immunity requirements.
• ATEX Considerations — hazardous-area installation requires a complete certified system approach, including enclosure and associated equipment approval.
• Marine Approvals (DNV GL) — require verification at the system level.

The IP65 front-panel rating matters because it helps protect the operator interface against dust and water exposure when installed correctly in a sealed cabinet environment.

Verify specific lot certifications with OEM.

Long-Term Storage & Asset Preservation Guide

• Keep the inside its original protective packaging. Shield the touchscreen surface from scratches, pressure marks, and chemical contamination.
• Maintain warehouse humidity below 60% RH. Moisture can affect LCD layers, connector contacts, and internal PCB assemblies.
• Store the HMI in a temperature-controlled area away from direct sunlight, vibration, and corrosive gases.
• Avoid stacking heavy components on the front display surface. Excess pressure may damage the touchscreen glass or internal display structure.
• Before installation, inspect the sealing gasket area, rear connectors, and mounting clamps.

Physical Installation Prerequisites

• Install the in a compatible industrial panel cutout:
  • Opening: approximately 259 × 201 mm
  • Panel thickness: 1.6–5 mm
• Allow sufficient cabinet clearance behind the unit for cable routing and natural airflow.
• Leave adequate space around ventilation areas to prevent heat accumulation.
• Connect functional grounding using the recommended grounding conductor size and resistance requirements.
• Use shielded communication cables where required by the installation environment.
• Confirm 24 VDC supply polarity before energizing.
• Tighten mounting clamps evenly to maintain the front-panel protection seal.

Buyer’s FAQ (Logistics & Compliance Focus)

Q: What HS Tariff Code is commonly used for Schneider ?

A: HMI operator panels are commonly classified under HS 8537 for electrical control apparatus or under display equipment classifications depending on customs interpretation. Some trade databases reference display-related HS categories such as 8528, but the final code should be confirmed by the importer’s customs broker.

Q: Why does Country of Origin (COO) matter for this HMI?

A: COO affects customs duty calculation, trade documentation, supplier qualification, and asset traceability. The COO should match the commercial invoice, packing list, and certificate of origin when required.

Q: Should shipping insurance be arranged for the ?

A: Recommended. The touchscreen assembly and LCD panel are sensitive to impact, vibration, and moisture exposure. Transit damage may not be visible until power-up testing.

Q: Does the include the latest firmware pre-loaded?

A: The unit contains factory-installed system firmware according to its production revision. The application project must be loaded or verified using the compatible Schneider configuration software before commissioning.
