Triconex 2401 | Safety System Module & Compliance

Unboxing & Physical Snapshot

• Model & Brand: Triconex 2401.
• Part Identity: 2401 is a Triconex hardware identifier associated with the Tricon safety-system product family; the exact functional variant should be confirmed from the physical nameplate and hardware revision.
• Physical Dimensions: Verify against the applicable OEM mechanical drawing. Do not use shipping-carton dimensions as the installed envelope.
• Estimated Shipping Weight: Allow approximately 0.5–1.5 kg gross for preliminary freight planning only. Actual packed weight should be measured before shipment.
• What’s in the Box: Triconex 2401 hardware and protective packaging when supplied as a standalone spare. Do not assume cables, termination panels, mounting hardware, or software/configuration media are included.
• Receiving Inspection: Photograph the part number, serial number, hardware revision, connector arrangement, status indicators, mechanical keying, and certification markings.

Product Introduction

Compliance Hook

Triconex equipment is used within fault-tolerant safety architectures, where an apparently minor material-number discrepancy can result in an incompatible replacement. For 2401, the controlled inventory record should therefore retain the exact part number together with the hardware revision and physical identification information.

Do not issue this spare solely because another Triconex component appears physically similar. The chassis position, electrical interface, firmware compatibility, and system configuration must all be reconciled before installation (particularly where the component participates in a safety-related function).

Do not infer missing electrical specifications from the number 2401. Without a verified OEM functional description, assigning voltage, channel count, protocol, memory capacity, or power consumption would create unreliable asset-master data.

For procurement, retain the distinction between part number, functional model, hardware revision, and system compatibility.

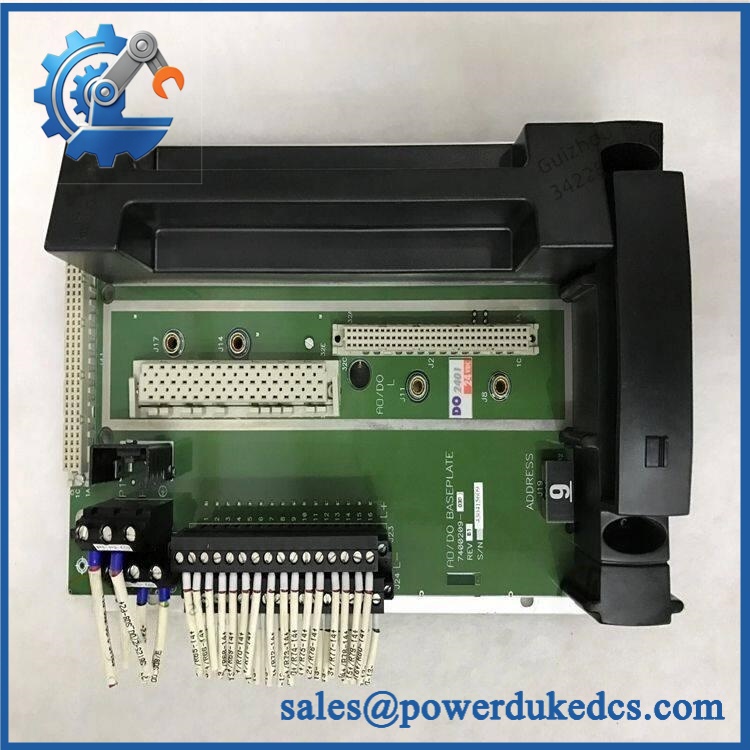

Triconex 2401

? Global Compliance & Industry Certifications

• CE Mark: Verify the applicable Triconex conformity documentation for the exact 2401 hardware revision.
• UL/cUL: Confirm UL/cUL status from the applicable Triconex system certification. Do not infer listing status from the brand alone.
• ATEX/IECEx: Do not assume hazardous-area approval. If used in a classified location, verify the complete certified architecture and installation arrangement.
• Marine Approvals: DNV, ABS, or Lloyd’s Register certification must be confirmed for the specific equipment configuration before offshore or marine deployment.
• Functional Safety: A Triconex component may form part of a safety-instrumented system, but the part itself does not independently establish SIL capability. The complete SIF must be evaluated.
• Traceability: Preserve serial number, hardware revision, supplier traceability, COO, and conformity documentation.
• Audit Control: If the exact function of 2401 has not been established, maintain the material in a verification-required inventory status.

Verify specific lot certifications with OEM.

? Long-Term Storage & Asset Preservation Guide

1. Keep the unit in ESD shielding. Store electronic Triconex hardware in its original antistatic bag whenever practical. Protect connector contacts from dust, fingerprints, and static discharge.
2. Maintain controlled humidity. A warehouse target below 60% RH is appropriate for long-term electronic storage. Avoid condensation and repeated temperature cycling around PCB assemblies and connector contacts.
3. Protect the identification label and connectors. Do not place adhesive inventory labels over the OEM identification plate. Retain connector caps and original packaging inserts where supplied.
4. Preserve configuration evidence. Record the serial number, hardware revision, original supplier, COO documentation, and any associated Tricon system information. This is especially important when an old spare may remain on the shelf for several years.

Physical Installation Prerequisites

• Chassis Compatibility: Confirm the exact Tricon chassis or assembly location before installation.
• Mechanical Keying: Check guide rails, keying features, retaining hardware, and connector alignment. Never force an assembly into position.
• Clearance: Maintain manufacturer-specified front and rear service clearance and keep cooling paths unobstructed.
• Grounding: Verify protective-earth continuity, chassis bonding, and cabinet grounding before energization.
• Electrical Interface: Confirm supply voltage, polarity, signal characteristics, terminal arrangement, and cable compatibility from the verified OEM documentation.
• Termination Equipment: Do not assume an external termination panel, system cable, or field connector is supplied with the 2401.
• Configuration: Verify hardware revision and software compatibility against the target Tricon system before commissioning.
• Testing: Perform the applicable diagnostic, I/O, communication, and safety-function tests required by the approved maintenance procedure.

Buyer’s FAQ

Q1. What HS tariff code should be used for Triconex 2401?

Do not assign an HS classification from the part number alone. The final tariff classification depends on the item’s confirmed technical function and the importing country’s tariff schedule.

Obtain the OEM functional description first, then have the customs broker validate the classification before the commercial invoice is issued.

Q2. Does Country of Origin affect this spare?

Yes. COO can affect duty rates, preferential tariff eligibility, origin declarations, and customs documentation.

Do not infer COO from the seller’s location or the manufacturer’s corporate headquarters. Confirm it from the physical product, OEM documentation, or a valid Certificate of Origin.

Q3. Should shipping insurance be purchased?

Evaluate insurance against the replacement value and operational consequences of losing the spare in transit. A small Triconex component can have a high economic impact when it is required for a critical process-control or safety system.

Use ESD shielding, rigid cushioning, and moisture protection. Photograph the part number, serial number, connectors, and packaging before dispatch.

Q4. Does Triconex 2401 include the latest firmware pre-loaded?

Do not assume it does. The part number alone does not establish firmware revision or compatibility with a particular Tricon system release.

At receiving inspection, record any firmware/hardware revision information available on the unit. Before installation, reconcile that revision against the target system’s approved configuration.

Asset-control note: Maintain TRICONEX 2401 as a controlled material number, with the exact functional description and electrical specifications subject to OEM/nameplate verification. For a safety-system spare, an explicitly documented unknown is safer than an attractive but unsupported specification.
