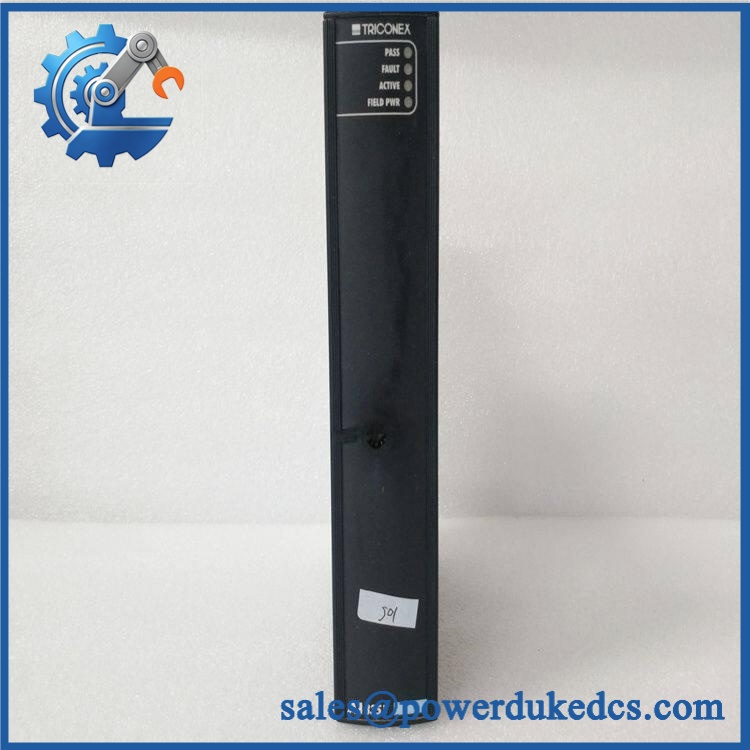

TRICONEX 3311S2 | 32 Point High Resolution Digital Input

Description

• Brand: TRICONEX

• Full Model Number: 3311S2
• System/Series Family: Tri-GP v2.x Safety Instrumented System
• One-Sentence Core Function: 32-point high-resolution digital input module for accurate sequence-of-events recording
• Top 3 Hardcore Specs: 32 input points; 24 VDC input; SOE resolution up to 1 ms
• Stock Status: New Surplus / Fully Tested Refurbished — verify Tri-GP version, termination hardware, and firmware compatibility before shipment

Module 3: Technical Product Introduction

When ordinary digital inputs only establish whether a contact is ON or OFF, the timing of that transition can be just as important as the state itself. The TRICONEX 3311S2 is the High-Resolution Digital Input (HRDI) module for Tri-GP systems, providing 32 independently configurable digital-input points and high-resolution sequence-of-events recording. Triconex configuration documentation specifies that the 3311S2 can record point transitions at resolutions of up to 1 ms.

The module is a 24 VDC commoned digital-input device within the Tri-GP v2.x architecture. Unlike the standard 3301S2 32-point DI module, the 3311S2 is intended for applications where precise event chronology matters. Schneider/Triconex documentation specifically states that the 3311S2 is compatible with Tri-GP v2.1 and later systems. The 32 input points can be configured independently for SOE recording, making accurate event-time reconstruction possible during trips, interlocks, and abnormal-process investigations.

Module 4: Application Scenarios & Field Realities

• In emergency-shutdown investigations, the 3311S2 is useful where the order of contact transitions determines which field event occurred first. A 1 ms SOE capability gives the control engineer substantially finer event timing than a conventional status-only DI arrangement.
• For turbine, compressor, and rotating-equipment protection, individual digital points can capture trips, permissives, auxiliary contacts, and alarm transitions. During post-event analysis, preserving the chronological relationship between these signals can be more valuable than simply knowing their final states.
• On a Tri-GP v2.1 or later installation, verify the controller generation before approving a spare. Triconex documentation explicitly limits 3311S2 compatibility to Tri-GP v2.1 and later. A 3311S2 should not be assumed interchangeable with the similarly numbered Trident 3311 module.
• During a cabinet replacement, distinguish the 3311S2 from the standard 3301S2. Both are 32-point, 24 VDC Tri-GP digital-input modules, but 3311S2 is specifically the high-resolution/SOE version. Replacing it with a standard DI module can remove the timing capability required by the application.

TRICONEX 3311S2

Module 5: Migration, Compatibility & Installation Traps

Replacement Matrix

⚠️ Field Traps — Watch Out

1. Do not substitute 3301S2 for 3311S2 when SOE timing is required.
The two modules are both 32-point, 24 VDC digital-input modules, but Triconex identifies 3311S2 specifically as the High-Resolution Digital Input module. Its purpose is accurate sequence-of-events recording, with point-transition resolution up to 1 ms.

2. Verify the controller generation.
The documented compatibility boundary is Tri-GP v2.1 and later for 3311S2. The Trident equivalent is 3311, not 3311S2. Do not cross-install the two based on similar model numbering.

3. Preserve channel assignments.
All 32 points are independently configurable for the HRDI/SOE function. Photograph the existing terminal assignments and software channel mapping before removal. Incorrect channel reconstruction can produce a technically healthy input module with completely misleading event records.

4. Verify the termination arrangement.
Tri-GP documentation lists a dedicated DI baseplate and external-termination options for the 3311S2. Confirm whether the existing installation uses direct or external termination before approving the replacement assembly.

Module 6: Quality Assurance SOP

1. OEM anti-counterfeit visual inspection — inspect TRICONEX identification, 3311S2 marking, labels, PCB revision, connectors, housing, mounting hardware, and visible manufacturing identifiers.
2. Exact part-number verification — confirm 3311S2 character-for-character against the purchase order and physical module label.
3. System-family verification — confirm the intended controller is Tri-GP v2.1 or later, rather than a Trident installation requiring the 3311 module.
4. Hardware-revision record — photograph the complete label, serial number, revision code, and any visible configuration identifiers before testing.
5. Mechanical inspection — examine the module housing, backplane connector, mounting points, terminal interface, and PCB surfaces for bent contacts, corrosion, contamination, cracks, or impact damage.
6. Power-on self-test (POST) — energize the module in an approved Tri-GP test environment using the documented 24 VDC input arrangement. Record startup diagnostics, status indications, current behavior, and abnormal temperature rise.
7. 32-point input simulation — apply controlled 24 VDC input transitions through an approved test fixture and verify the response of representative channels.
8. Full-channel verification — where the laboratory fixture permits, test all 32 input points independently. Record channel number, applied state, detected state, and diagnostic result.
9. SOE resolution verification — generate controlled input transitions with calibrated timing instrumentation and verify the configured event timestamp resolution against the documented up-to-1 ms capability.
10. TriStation communication handshake verification — connect the module through a compatible Tri-GP controller and verify module identification, configuration access, diagnostic status, and SOE data retrieval.
11. Sequence-of-events validation — execute a controlled multi-input event sequence and confirm that the recorded event order and timestamps correspond to the known test sequence.
12. Termination-path verification — confirm continuity and correct channel mapping between the module, DI baseplate or external termination assembly, and test field interface.
13. Final QC and packaging — document the exact model, revision, 32-channel test results, SOE timing test, diagnostic status, photographs, ESD protection, and packaging condition before shipment.

Engineering note: The strongest technical evidence identifies TRICONEX 3311S2 as a 32-point, 24 VDC High-Resolution Digital Input module for Tri-GP systems, with independently configurable points and SOE recording at resolution of up to 1 ms. Compatibility is specifically documented for Tri-GP v2.1 and later.
