Triconex 3481 | Trident 4 Point Analog Output Module

Description

• Brand Triconex / Invensys
• Full Model Number 3481
• System/Series Family Trident Safety Instrumented System
• Core Function TMR analog output generation for four commoned 4–20 mA field circuits
• Top 3 Hardcore Specs 4 output points | 4–20 mA controlled output | 12-bit resolution
• Stock Status New Surplus — verify hardware revision, baseplate, termination arrangement, and field-load requirements before shipment

Module 3: Technical Product Introduction

An analog output failure can affect the final control element even when the safety processor and input channels remain healthy. Triconex 3481 is the Trident Analog Output Module, providing four commoned 4–20 mA output points through a TMR architecture. Each output channel contains an isolated processing path and a digital-to-analog converter, while selector logic votes the three redundant channel signals before the selected output is applied to the field load. Triconex documentation identifies Model 3481 specifically as a four-point commoned analog output module.

The electrical specification is equally important during replacement. The module provides controlled 4–20 mA output with a 0–22 mA over-range, 12-bit resolution, and output accuracy below 0.25% of full-scale range from 0°C to 70°C. It supports external loop power up to 32 VDC, with 24 VDC nominal operation. Load capability depends on available loop voltage: the documented configuration supports 300 Ω at more than 16 VDC, 500 Ω at more than 20 VDC, and 700 Ω at more than 24 VDC.

Module 4: Application Scenarios & Field Realities

• In a process shutdown or control loop, the 3481 can provide a voted 4–20 mA command to a field actuator, positioner, or other analog final element. Because the output is part of a TMR architecture, a single internal channel fault can be diagnosed without automatically losing the complete output path.
• Where valve position commands must remain available during a controller fault, the module’s selector and shunt circuitry continuously evaluate the three redundant output paths before applying the selected signal to the load. That architecture is materially different from a conventional single-channel analog output card.
• For plants using HART-compatible field instrumentation, the standard 3481 can be installed with the 2483 HART baseplate or 2483A hazardous-location baseplate in the corresponding Trident configurations. The product guide lists 5483 and 5483A TriPaks using the 3481 module with these baseplates and a Triconex 4850 HART multiplexer.
• During loop troubleshooting, measure the field-load resistance before declaring the output module defective. A loop approaching 500–700 Ω requires sufficient external loop voltage; an apparently inaccurate or unloaded output may simply be operating outside the documented load-versus-voltage envelope.

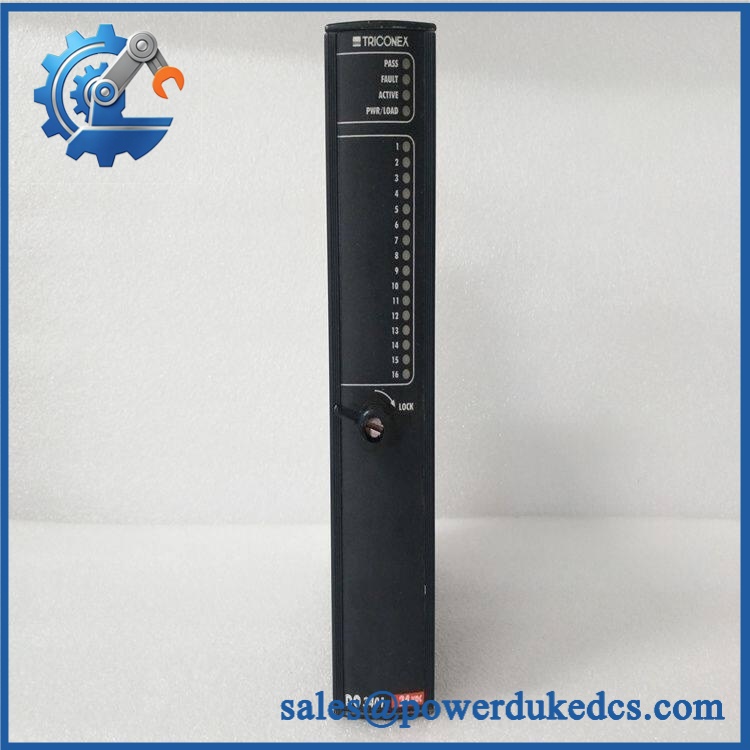

Triconex 3481

Module 5: Migration, Compatibility & Installation Traps

Replacement Matrix

⚠️ Field Traps: Watch Out

Do not confuse 3481 with 3482. Trident documentation identifies 3481 as four 4–20 mA commoned outputs, while 3482 is a high-current analog output module providing two 4–20 mA and two 4–40 mA outputs. They are different electrical architectures and should not be substituted by physical similarity alone.

Verify the baseplate. The standard configuration uses 2481, while HART installations can use 2483 or hazardous-location 2483A. The termination architecture determines the field interface and must match the installed system.

Check loop power before commissioning. The specified load capability changes with available external loop voltage. At 24 VDC, the documented configuration supports up to 700 Ω under the stated conditions; this should not be interpreted as an unrestricted 700 Ω load under every installation condition.

Do not evaluate the card using only an open-loop bench measurement. The 3481 is designed around a powered current loop. Output validation should use a controlled loop load and the correct external supply so that the DAC, loop current, and load behavior can be assessed together.

Module 6: Quality Assurance SOP

A surplus 3481 should be validated as a safety-related analog output module, with each output channel tested under controlled load conditions.

• OEM anti-counterfeit visual inspection: Verify Triconex/Invensys identification, exact 3481 marking, PCB revision, connector geometry, front-panel indicators, and manufacturing identifiers against controlled references.
• Part-number and traceability check: Record model number, hardware revision, serial number, date code, and associated baseplate/termination configuration.
• Mechanical inspection: Examine the backplane connector, enclosure, locking mechanism, PCB, output interface, and mounting hardware for bent contacts, corrosion, contamination, cracking, or unauthorized repair.
• Power-on self-test (POST): Install the module in an approved Trident test arrangement and confirm the expected PASS, FAULT, ACTIVE, and PWR/LOAD indications.
• 24 VDC loop-power verification: Apply controlled external loop power within the approved operating range and confirm stable module behavior.
• Four-channel output test: Exercise all four output channels independently using calibrated current measurement and representative loop loads.
• 4–20 mA accuracy test: Test representative points such as 4 mA, 12 mA, and 20 mA and compare measured output against the applicable accuracy specification.
• Over-range test: Where supported by the approved fixture, test controlled output values in the documented 0–22 mA range without exceeding the module or test equipment limits.
• Resolution verification: Confirm DAC behavior consistent with the documented 12-bit resolution using calibrated measurement equipment.
• Load-capability test: Verify representative 300 Ω, 500 Ω, and 700 Ω loop conditions only with the corresponding minimum external voltage requirements.
• Current-loop diagnostic test: Verify output readback and current/voltage loopback diagnostics on each channel using the approved Trident test procedure.
• TMR verification: Test all three internal processing paths and confirm that the module can identify a controlled single-channel fault while maintaining the expected voted output behavior.
• Isolation verification: Test the three redundant channel paths and field interface for unintended electrical continuity according to the applicable safety-module test procedure.
• Baseplate recognition test: Confirm correct module recognition and I/O data exchange through the installed 2481, 2483, or 2483A configuration, as applicable.
• Communication handshake verification: Confirm successful module-to-main-processor data exchange through the Trident I/O communication architecture. The 3481 itself is an analog output module, not a standalone Ethernet or Modbus interface.
• Field-load simulation: Where applicable, test a representative valve positioner or actuator load and verify stable current regulation through the complete loop.
• Extended-run test: Operate representative channels under continuous load while monitoring output stability, diagnostic events, supply current, and abnormal temperature rise.
• Final QC record: Document hardware revision, four-channel output readings, accuracy results, load conditions, diagnostic behavior, TMR validation, baseplate compatibility, extended-run observations, traceability, and packaging status.

Technical Identification Note: Trident documentation identifies Model 3481 as a four-point commoned 4–20 mA analog output module with TMR architecture, 12-bit resolution, 0–22 mA over-range, and less than 0.25% full-scale output accuracy over the specified temperature range. The standard matching baseplate is 2481, with 2483/2483A used for HART-related configurations.
