HIMA F35 982200416 | HIMatrix Safety Controller with Integrated I/O

Description

• Brand: HIMA
• Full Model Number: F35 982200416 / F35 01
• System/Series Family: HIMatrix compact safety controller
• Core Function: Integrated safety controller combining digital inputs, analog inputs, counter inputs, digital outputs, fieldbus interfaces, and SafeEthernet communication
• Top 3 Hardcore Specs: 24 digital inputs; 8 analog inputs; 8 digital outputs + 2 counter inputs
• Stock Status: Verify current New Surplus, Factory Sealed, or Fully Tested Refurbished condition before order

Module 3: Technical Product Introduction

A compact safety controller is often selected when the control cabinet cannot justify a larger modular rack but the application still requires mixed signal processing and safety-rated logic. The HIMA F35 982200416, identified in the HIMA documentation as the HIMatrix F35, combines 24 digital inputs, 8 analog inputs, 2 counter inputs, and 8 digital outputs in one compact controller. HIMA’s own certification records place the F35 within the HIMatrix compact PES family and identify SIL 3, Category 4, PL e, and CENELEC SIL 4 certification scope for the applicable F35 variants.

The useful engineering advantage comes from signal density and integrated communications rather than raw CPU performance. The F35 documentation identifies an integrated 4-port 100 Base-T switch with safeethernet, three fieldbus interfaces, 24 VDC operation, and firmware/hardware revision information carried on the type label. For part number 982200416, the published type-label example specifically shows a 24 VDC / 9 A designation. This is a materially different architecture from a conventional PLC CPU that requires separate I/O and communications cards. For legacy installations, that integration can reduce the number of cabinet components—but exact firmware and fieldbus configuration still need to match the existing project.

Module 4: Application Scenarios & Field Realities

• For compact SIS or machine-safety cabinets, the F35 makes sense where mixed discrete, analog, and counting signals must be handled within one enclosure. The 24 digital inputs and eight analog inputs provide a relatively high signal count without adding a separate I/O rack. HIMA’s certification documentation specifically identifies the F35 as a compact safety system with this integrated I/O arrangement.
• On rotating-equipment monitoring applications, the two integrated counter inputs can be used where pulse or frequency information must enter the safety controller without adding another counting module. The actual signal conditioning and configured application logic should be checked against the installed F35 variant before commissioning.
• When distributed safety nodes communicate over an industrial Ethernet network, the integrated four-port 100 Base-T switch and SafeEthernet capability become important. HIMA lists the F35 with three fieldbus interfaces in addition to its Ethernet switching capability, so network migration is not just a matter of matching an RJ45 connection.
• For brownfield replacement of an aging F35, the type label is a critical checkpoint. HIMA states that the label carries the product name, part number, production year, hardware revision, firmware revision, operating voltage, and conformity markings. A replacement with the same base F35 designation but a different firmware or hardware revision should be reviewed against the installed project before being placed into service.

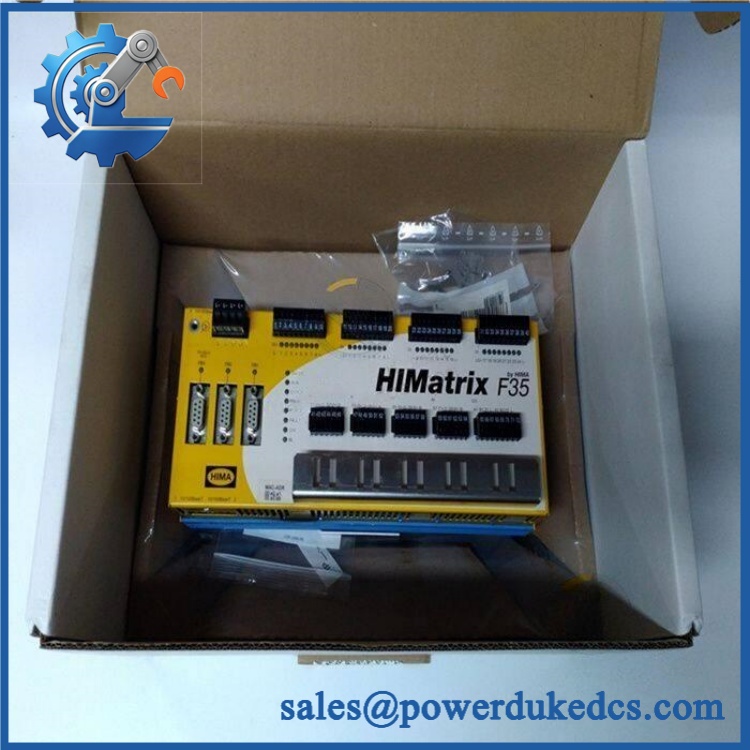

HIMA F35 982200416

Module 5: Migration, Compatibility & Installation Traps

Replacement Matrix

Exact F35 982200416 / F35 01 configuration: Drop-in Replacement
For an existing installation using the same F35 hardware variant, compatible firmware, identical field wiring, and matching communication configuration, the replacement is normally a direct hardware exchange. Application logic remains in the controller project rather than in the physical I/O wiring itself.

Different F35 hardware or firmware revision: Software Compatible / Verification Required
HIMA’s type-label structure explicitly identifies hardware and firmware revision indexes. Before replacement, compare the installed HW-REV and FW-REV against the approved project baseline.

Different HIMatrix controller family: Hardware Modification Required
F30, F31, F35, and other HIMatrix families have different integrated I/O configurations and communication interfaces. HIMA’s certification documentation distinguishes these device types separately; physical enclosure similarity is not proof of functional interchangeability.

⚠️ Field Traps (Watch Out)

Firmware/project mismatch: The F35 is not just an I/O block. Its safety application, firmware revision, communication configuration, and fieldbus assignments are part of the installed system. Record the original firmware revision from the type label before removing the existing controller, then verify the replacement against the approved project baseline.

Power-rating confusion: Some third-party listings incorrectly publish generic or contradictory AC/DC values for this model. The HIMA type-label example for part number 982200416 identifies 24 VDC / 9 A, so the cabinet power supply should be checked against the actual nameplate rather than a reseller database.

Module 6: Quality Assurance SOP

Pre-Shipment QA Protocol for HIMA F35 982200416

• Step 1 — Identity Verification: Confirm HIMA marking, F35 designation, part number 982200416, production information, hardware revision, firmware revision, operating-voltage marking, and conformity labels.
• Step 2 — OEM Anti-Counterfeit Visual Inspection: Inspect the HIMA label, barcode, enclosure, PCB markings where accessible, connectors, status LEDs, fasteners, and housing finish for inconsistencies or evidence of unauthorized modification.
• Step 3 — Mechanical Inspection: Check the compact metal enclosure, mounting points, terminal interfaces, Ethernet ports, fieldbus connectors, and ventilation areas for cracks, deformation, corrosion, or connector damage.
• Step 4 — Supply Verification: Confirm the laboratory supply is configured for the specified 24 VDC input and that current capacity is appropriate for the test fixture.
• Step 5 — Power-On Self-Test: Energize under controlled conditions and verify normal startup, controller status, fault indications, and expected LED behavior.
• Step 6 — Digital Input Test: Exercise all 24 digital inputs with controlled field-level signals and record state recognition and diagnostic behavior.
• Step 7 — Analog Input Test: Apply calibrated test signals across all 8 analog inputs within the approved signal range and verify acquisition values against the test reference.
• Step 8 — Counter Input Test: Apply controlled pulse signals to both counter channels and verify pulse recognition, counting behavior, and diagnostic status.
• Step 9 — Digital Output and Communication Test: Exercise all 8 digital outputs with controlled loads, then verify Ethernet communication and the applicable fieldbus interfaces using a controlled test network.
• Step 10 — Final QC Record: Record complete model number, hardware and firmware revisions, I/O test results, communication results, visual inspection, power-test observations, test date, and final QC disposition before packaging.

Technical Verification Note: HIMA’s current certification documentation identifies the HIMatrix F35 as a compact safety controller with 24 digital inputs, 8 analog inputs, 2 counter inputs, 8 digital outputs, an integrated 4-port 100 Base-T SafeEthernet switch, and three fieldbus interfaces. HIMA also lists applicable F35 variants within SIL 3 / Category 4 / PL e / CENELEC SIL 4 certification documentation. The technical type-label documentation for part number 982200416 shows a 24 VDC / 9 A rating and requires recording hardware and firmware revisions during identification.
