HIMA Z7116 | 16 LED Digital Input Connection Cable Plug

Description

• Brand: HIMA
• Full Model Number: Z7116
• System/Series Family: HIMA F-Series safety control system I/O interface
• Core Function: Cable-plug assembly for digital input modules with field-side indication and shunt-resistor circuitry
• Top 3 Hardcore Specs: 16 LED indicators; DI application; shunt resistor configuration
• Typical Associated Assembly: Z7116/3236/C5
• Cable Configuration: Factory-wired cable assembly; 5 m version documented for Z7116/3236/C5
• Stock Status: New Surplus or Fully Tested Refurbished; exact configuration must be confirmed

Module 3: Technical Product Introduction

When a HIMA digital-input channel is being maintained, the field connection assembly can be just as important as the I/O electronics behind it. Z7116 is documented in the HIMA spare-parts market as a cable-plug assembly rather than a standalone 16-channel DI electronics module. The closely associated Z7116/3236/C5 is identified as a connection cable for a DI module, with 16 LED indicators and a shunt-resistor arrangement. This distinction matters during procurement because several third-party listings incorrectly describe Z7116 itself as a complete digital-input module.

The practical role is therefore at the wiring and indication layer. /3236/C5 references a factory-wired cable assembly, with one current listing specifying a 5 m cable, while another technical listing identifies the assembly as a DI connection cable with 16 LEDs and shunt resistors. The exact cable length, termination, and suffix configuration should be checked against the installed F3236 arrangement before replacement — especially where multiple HIMA connection variants are present in the same cabinet.

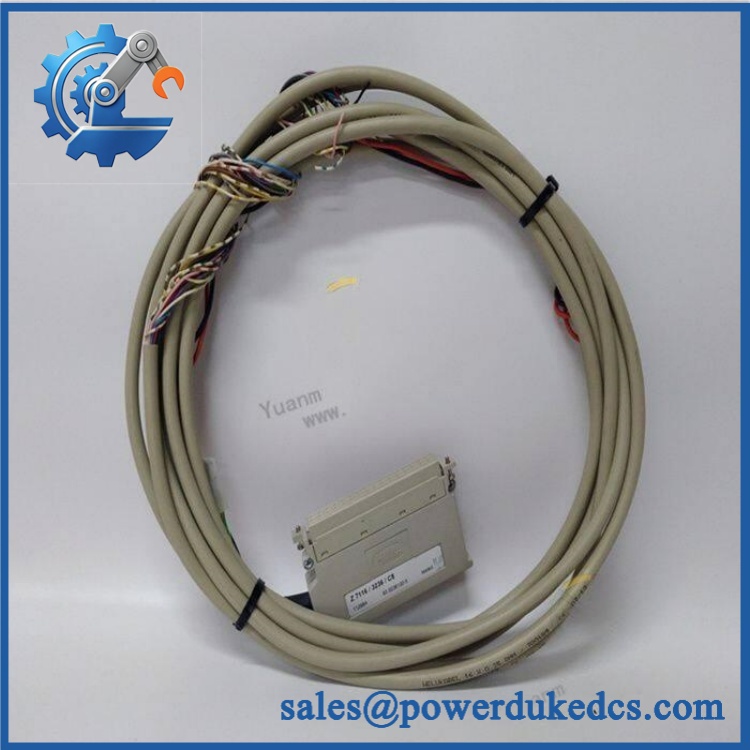

HIMA Z7116

Module 4: Application Scenarios & Field Realities

• On HIMA F3236 digital-input cabinets, the connection assembly provides the physical interface between field wiring and the DI electronics. A commonly documented variant, /3236/C5, is explicitly listed as a DI plug with a shunt resistor.
• Where operators need local channel indication, the 16-LED arrangement provides a direct visual reference for the associated input points. That is useful during loop checks because the technician can observe channel activity at the interface rather than relying exclusively on central-system diagnostics.
• During SIS cabinet maintenance, the cable assembly becomes a replacement item in its own right. A procurement error involving a similar-looking connector can leave the correct DI module installed but create wiring, indication, or termination problems at the field interface.
• For long cable runs or cabinet rebuilds, verify the exact cable length and termination before ordering. One documented /3236/C5 configuration uses a 5 m cable, so the suffix should not be treated as cosmetic.

Module 5: Migration, Compatibility & Installation Traps

Replacement Matrix

Replacement classification: Drop-in Replacement only when the replacement matches the existing configuration and the associated DI module, connector arrangement, cable length, and resistor configuration.

Software compatibility: No software change normally required. is an interface/cabling assembly, not a programmable controller module.

Cross-model replacement: Hardware matching required. A connector that fits mechanically is not automatically electrically equivalent. Verify the associated DI module, pin assignment, LED arrangement, cable length, and shunt-resistor configuration before installation.

Field Traps — Watch Out

1. Do not confuse with a complete DI module. Current market references are inconsistent: some listings describe as an I/O or digital-input module, while more specific references identify /3236/C5 as a DI connection cable / cable plug. For procurement, the suffix and associated F3236 module should be treated as decisive identifiers.

2. Verify the shunt-resistor configuration before energizing the circuit. The documented /3236/C5 assembly is specifically described as a DI connection cable with shunt resistor. Substituting a visually similar cable without the correct resistor arrangement can change the field input behavior and produce misleading channel diagnostics.

3. Match the cable variant, not just the base number. /3236/C5 is a more specific identifier than alone. Confirm the complete ordering code printed on the existing assembly before placing a replacement order.

Module 6: Quality Assurance SOP

Pre-Shipment Inspection Protocol for HIMA

• OEM identity inspection: Verify HIMA marking, designation, complete ordering suffix where applicable, cable identification, connector style, and associated module reference.
• Visual inspection: Examine cable jacket, connector housings, locking hardware, LED panel, labels, contacts, and strain relief for cracking, corrosion, contamination, or mechanical damage.
• Pin-assignment verification: Compare connector pinout and termination against the applicable HIMA wiring documentation for the installed DI module.
• Cable-length verification: Measure the supplied cable against the ordered configuration; documented /3236/C5 examples use a 5 m cable.
• LED inspection: Energize the appropriate test arrangement and verify all 16 channel indicators respond correctly to representative DI states.
• Shunt-resistor verification: Where the configuration includes the resistor network, measure the relevant resistance values against the applicable assembly documentation before shipment.
• Continuity test: Check every required conductor from connector to termination point, recording open-circuit, short-circuit, and unexpected resistance findings.
• Insulation check: Perform an appropriate insulation-resistance test where permitted by the connector and assembly documentation.
• Connection simulation: Connect the assembly to a suitable F3236-compatible test setup and perform a channel-by-channel DI response check.
• Final QC record: Record full part number, cable length, connector configuration, LED results, continuity measurements, resistor verification, inspection date, and inspector approval.
• ESD and mechanical protection: Package the connector and cable to prevent electrostatic exposure, pin deformation, bending stress, moisture ingress, and impact during shipment.

Procurement note: For the base designation , the evidence is not sufficiently consistent to treat it as a standalone DI electronics module. The strongest matching references identify it with the /3236/C5 DI connection-cable assembly, including 16 LED indication and a shunt resistor.
