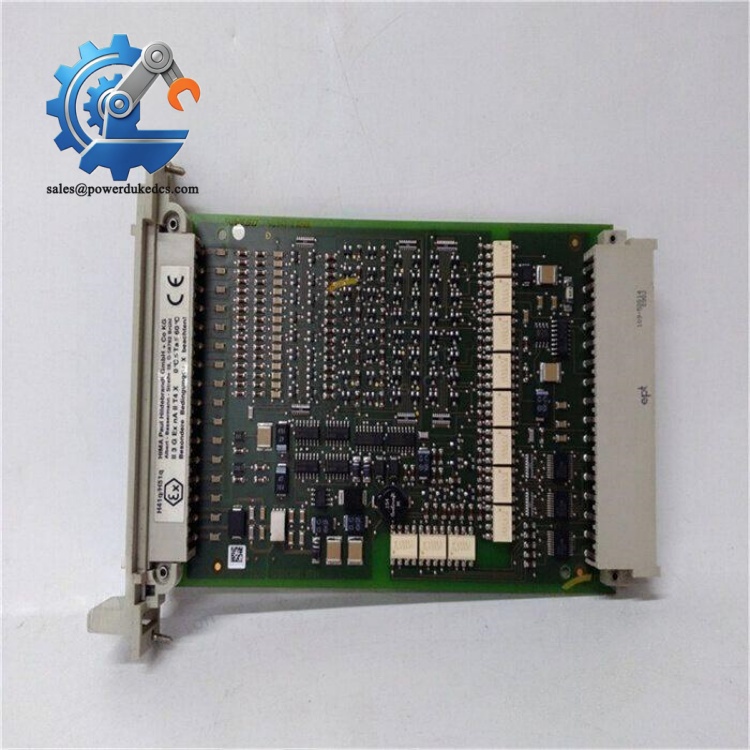

- HIMA F3236 | Industrial SIS Digital Input Board
2. Unboxing & Physical Snapshot
- Model & Brand: HIMA F3236
- Product Type: Safety-related 16-channel digital input module for HIMA safety instrumented systems (SIS). The module accepts 1-signal inputs or mechanical contact inputs and is designed for safety isolation applications in AK 1–6 classes.
- Approximate Physical Dimensions (W × H × D):
- Compact modular design
- Approximately 100 × 75 × 20 mm module body dimensions (varies by terminal/cable assembly configuration).
- Requires 4 TE rack space within the HIMA mounting system.
- Estimated Shipping Weight: Approximately 0.1-0.5 kg depending on terminal plug, packaging, and accessories.
- What’s in the Box:
- HIMA F3236 safety input module
- Front connection plug (if supplied)
- Module identification label
- Anti-static (ESD) protection bag
- Protective packaging
- Original documentation when available
3. Product Introduction
The HIMA F3236 is installed inside a safety controller rack where it monitors discrete field signals and transfers validated input states into the safety logic system. Its physical role is straightforward: collect safety-related signals while maintaining electrical isolation and diagnostic supervision (which is critical for emergency shutdown, burner management, and process protection applications).
This module is maintained as a controlled safety spare because replacing an input module requires verification of channel configuration, terminal wiring, firmware compatibility, and proof-test documentation. The F3236 provides 16 input channels, automatic operational testing, and diagnostics including input cross-talk checks and filter capacitor monitoring. Check the rack slot assignment before installation.
4. Core Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | HIMA |
| Model | F3236 |
| Module Type | Safety-related 16-channel digital input module |
| Application | Safety Instrumented System (SIS) input processing |
| Input Channels | 16 channels |
| Input Type | 1-signal input, 6 mA or mechanical contact 24 V input |
| Safety Class | AK 1–6 application range |
| Switching Time | Approximately 8 ms |
| Operating Voltage | 5 V DC / 24 V DC |
| Current Consumption at 5 V DC | Approximately 120 mA |
| Current Consumption at 24 V DC | Approximately 200 mA |
| Processor | Intel 386EX |
| Processor Frequency | 25 MHz |
| Flash Memory | Approximately 1 MB |
| SRAM | Approximately 1 MB |
| Rack Space Requirement | 4 TE |
| Diagnostic Functions | Channel testing, cross-talk monitoring, filter capacitor testing |
| Isolation | Safety isolation between field signals and control electronics |
| Mounting Method | HIMA rack/module carrier system |
| Heat Dissipation | Low-power I/O module design; heat generated mainly by logic electronics and input conditioning circuits |

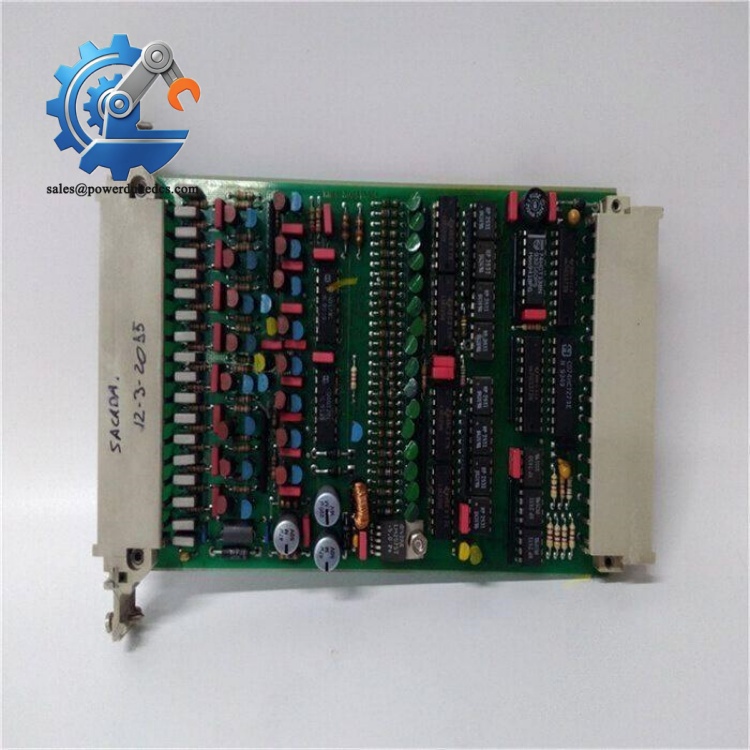

HIMA F3236
5. ? Global Compliance & Industry Certifications
Expected regulatory considerations for the HIMA F3236 include:
- CE Mark: Applicable for the complete HIMA safety system installation when EMC and low-voltage requirements are satisfied.
- IEC 61508 Functional Safety: The module is designed for safety-related applications and is associated with HIMA safety system architectures. Verify the exact certification scope by hardware revision.
- TÜV Safety Approval: HIMA safety modules are commonly supplied within TÜV-assessed safety system platforms. Verify certificate references for the exact module revision.
- UL/cUL Recognition: May apply depending on system certification and regional installation requirements.
- ATEX / IECEx: Not a standalone hazardous-area device. Hazardous-area use requires the complete certified system arrangement, including barriers and field devices.
- Marine Approvals (DNV GL): Only applicable when integrated into approved marine safety control equipment.
For safety inventory control, maintain the module serial number, hardware revision, application configuration, and proof-test history. A physically identical replacement without matching documentation can create compliance gaps.
Verify specific lot certifications with OEM.
6. ? Long-Term Storage & Asset Preservation Guide
Keep the HIMA F3236 inside its original anti-static shielding bag during storage. Protect the edge contacts, connector pins, and exposed electronic components from electrostatic discharge and contamination.
Maintain warehouse humidity below 60% RH. Moisture exposure can degrade connector surfaces and create intermittent signal faults after years of storage.
Inspect stored safety modules every 12-24 months. Check connector condition, label readability, terminal accessories, and PCB condition. Before installation into a live SIS rack, perform a controlled inspection and confirm the stored configuration matches the approved spare record.
7. Physical Installation Prerequisites
- Install the HIMA F3236 only in the approved HIMA safety controller rack.
- Confirm the correct rack slot and module addressing before insertion.
- Verify terminal wiring against the approved loop drawings.
- Ensure the module connector is fully seated and retaining hardware is engaged.
- Maintain cabinet environmental conditions within the approved operating range.
- Provide adequate cabinet airflow to prevent localized heat accumulation.
- Confirm protective earth bonding of the control cabinet.
- Verify field signal isolation requirements before energizing.
- Perform required safety validation tests after replacement.
HIMA F3236
8. Buyer’s FAQ (Logistics & Compliance Focus)
Q: What HS Tariff Code is commonly used for a HIMA F3236 shipment?
A: Safety I/O modules are commonly reviewed under electronic control module classifications, often within HS 8538 categories for parts of electrical control equipment. Final classification depends on customs interpretation, declared function, and regional tariff rules.
Q: Does Country of Origin (COO) documentation matter for the HIMA F3236?
A: Yes. COO records support customs clearance, maintenance traceability, and safety asset documentation. HIMA modules are commonly associated with German manufacturing origins, but verify the actual label and shipping documents for each unit.
Q: Should the F3236 ship with insurance coverage?
A: Recommended. Safety modules contain precision connectors and electronic input circuits that may be affected by impact, vibration, or moisture during transport. Use ESD packaging and shock protection.
Q: Does the HIMA F3236 include the latest firmware pre-loaded?
A: The module contains its operating firmware memory, but the installed revision depends on manufacturing version and service history. Verify firmware compatibility, hardware revision, and SIS configuration database records before replacement.
