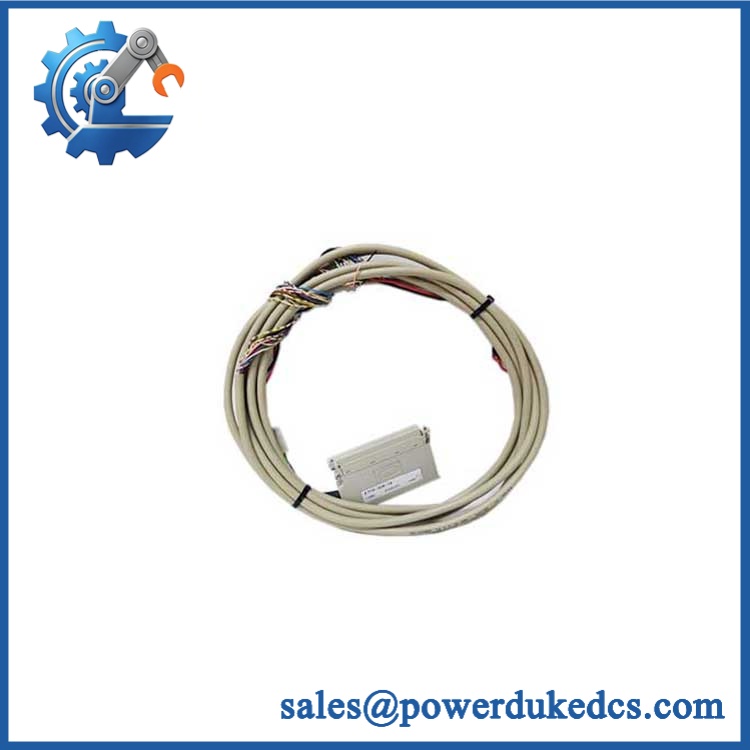

HIMA Z7116/3236/C5 | DI Connection Cable Plug

• Brand: HIMA
• Full Model Number: Z7116/3236/C5
• System/Series Family: HIMA F3236 Digital Input System
• One-Sentence Core Function: 16-channel LED connection cable plug for the F3236 DI module, with shunt resistors
• Top 3 Hardcore Specs: 16 LED indicators; 5 m cable; DI connection with shunt resistor
• Stock Status: New Surplus / Factory Original — verify exact packaging condition before PO release

The part is consistently identified in available product records as a cable/plug assembly for HIMA DI applications, rather than as an independent CPU or I/O processing module. One procurement specification also pairs Z7116/3236/C5 directly with the HIMA F3236 DI module as a DI plug.

Module 3: Technical Product Introduction

When a HIMA digital-input channel needs field wiring terminated through the F3236 architecture, the connection assembly becomes part of the signal path—not a cosmetic accessory. The HIMA Z7116/3236/C5 is identified as an LED cable plug for DI applications, providing a wired interface for the F3236 digital-input module. The documented configuration includes 16 LED indicators, a 5 m cable, and a shunt-resistor arrangement.

For maintenance teams, the practical advantage is replacement accuracy. Rather than adapting an unspecified cable assembly in a safety-related cabinet, this part preserves the intended F3236 connection arrangement. The available documentation identifies it as a 16-LED DI connection cable with shunt resistor; one current listing gives a shipping weight around 0.60 kg, while other suppliers quote approximately 1–2 kg depending on packaging. Treat those shipping figures as logistics data, not the engineering mass of the cable itself.

Module 4: Application Scenarios & Field Realities

• On HIMA digital-input cabinets, the Z7116/3236/C5 provides the cable-plug interface used for DI field wiring. The 16-LED arrangement gives technicians a local visual indication point during cabinet troubleshooting—particularly useful when a channel appears healthy at the field device but fails to reach the safety controller.
• During shutdown replacement work, a preconfigured 5 m cable assembly can reduce wiring rework compared with fabricating a replacement harness in the field. That matters when cabinet access is limited and every additional termination creates another opportunity for an incorrect channel assignment.
• For spare-parts planning around installations, the part should be stocked by exact part number rather than treated as a generic DI cable. HIMA procurement documentation specifically lists Z7116/3236/C5 as the DI plug associated with , alongside the DI module itself.
• Where cabinet diagnostics depend on visible channel status, the 16 LED indicators are useful during fault isolation. They do not, however, replace electrical loop testing; an illuminated indication alone cannot prove that the upstream field contact, termination, or safety logic is functioning correctly.

HIMA Z7116/3236/C5

Module 5: Migration, Compatibility & Installation Traps

Replacement Matrix

⚠️ Field Traps — Watch Out

1. Do not confuse the plug with the input module.
The is the DI module; /3236/C5 is the associated connection/cable assembly. Procurement records explicitly distinguish the two. Ordering the module when the failed item is the cable plug will not solve a cabinet wiring fault.

2. Verify cable variant and termination before installation.
The C5 version is documented with a 5 m cable, while the HIMA family includes other cable variants and lengths. Do not substitute a visually similar assembly without checking the complete suffix, cable length, connector arrangement, and shunt-resistor configuration.

3. Treat the shunt-resistor arrangement as functionally significant.
This is not simply an extension lead. Product records specifically identify the assembly as a DI connection cable with shunt resistor. Preserve the original wiring topology and terminal/channel mapping during replacement.

Module 6: Quality Assurance SOP

Before shipment, the /3236/C5 should be handled as a safety-system connection component, with identification and wiring integrity checked before packing:

1. OEM anti-counterfeit visual inspection — inspect HIMA markings, part-number label, connector construction, cable jacket, molded components, and visible manufacturing identifiers.
2. Part-number verification — confirm the complete /3236/C5 designation against the sales order and photographed nameplate/label.
3. Cable configuration check — verify the documented 5 m cable configuration, connector condition, strain relief, and physical integrity.
4. 16-channel LED inspection — check the complete LED section for damaged lenses, loose components, cracked housings, or abnormal physical wear.
5. Shunt-resistor verification — inspect the relevant termination arrangement against the applicable wiring documentation; do not substitute an assembly with an unverified resistor configuration.
6. Continuity verification — perform point-to-point continuity checks across the cable assembly using a controlled test procedure and documented channel mapping.
7. Connector inspection — check pins, sockets, locking features, insulation, and contact surfaces for oxidation, deformation, or contamination.
8. Communication handshake verification — not applicable as a standalone cable test. Where practical, perform an installed-system verification with the compatible HIMA architecture rather than claiming an independent network handshake test.
9. Functional cabinet verification — after installation, confirm the expected DI channel indications and perform the site’s approved safety-system I/O test procedure.
10. Final QC and packaging — record inspection results, photograph the verified part number, protect connectors against mechanical damage, use suitable ESD protection where required, and seal the assembly for shipment.

Procurement note: Several online records identify this exact part as a connection cable / LED cable plug, and one established industrial parts listing marks it as discontinued by the manufacturer. That makes exact suffix verification especially important before approving an alternative.
