Description
- Brand: HIMA
- Full Model Number: B9302 997009302
- System/Series Family: H41q / H51q
- One-Sentence Core Function: 21-slot K1406 I/O rack assembly for HIMA H41q/H51q safety systems
- Top 3 Hardcore Specs: K1406 rack; 19-inch, 4-U construction; slots 1–16 reserved for I/O modules
- Stock Status: Availability and assembly-kit configuration to be confirmed
Module 3: Technical Product Introduction
A failed I/O rack is a mechanical and system-integration problem, not simply a missing circuit board. HIMA B9302 997009302 is the assembly kit associated with the K1406 I/O rack for H41q/H51q systems. HIMA’s own revision documentation identifies B9302 as an EA assembly rack for the H41q/H51q platform, with revision 02 listed as valid under the referenced safety certificate.
The published B9302 documentation specifies a 19-inch, 4-unit-high K1406 rack, with 16 I/O positions and an integrated cable tray. The standard assembly also includes an F7553 coupling module installed in slot 17 and an BV7032 flat cable, with standard cable lengths of 0.5 m or 1 m; the documented maximum total bus length is 30 m. Optional F7133 power-distribution modules can occupy slots 18 through 21.
Module 4: Application Scenarios & Field Realities
- During an H51q rack replacement, the important detail is the complete assembly rather than the sheet-metal frame. The B9302 kit documentation ties the K1406 rack to an F7553 coupling module and BV7032 bus cable, so verify that all required components are present before scheduling the shutdown.
- For distributed H41q/H51q I/O installations, slots 1 through 16 are reserved for I/O modules. Slot 17 is assigned to the F7553 coupling module in the documented B9302 configuration, while slots 18 through 21 can accommodate F7133 fused power-distribution modules. That slot allocation should be compared with the cabinet drawings before moving existing modules.
- Where the I/O bus extends between cabinets or rack assemblies, cable length becomes a practical commissioning constraint. The documentation lists 0.5 m and 1 m standard BV7032 cable options and states a maximum total bus length of 30 m. Do not substitute a cable purely because its connector appears identical.
- For lifecycle support of older H41q/H51q installations, revision control matters. HIMA’s current published revision list identifies as an EA assembly rack, revision 02, with valid status under the referenced certification report. Match the rack revision and associated system documentation before installation.

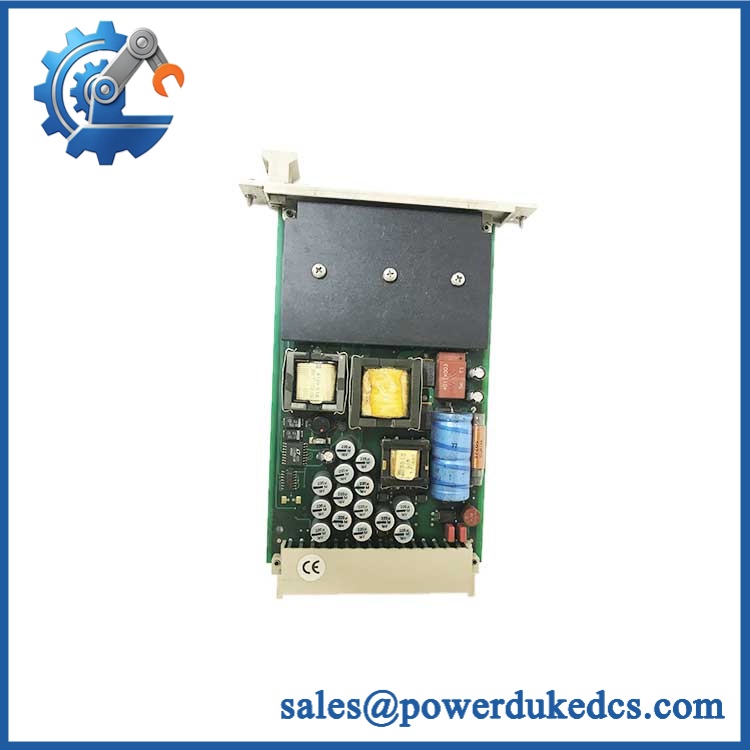

HIMA B9302 997009302
Module 5: Migration, Compatibility & Installation Traps
Replacement Matrix
Replacement Classification: Drop-in Mechanical Replacement — System Configuration Verification Required
For an H41q/H51q installation designed around the documented /K1406 architecture, the rack itself is intended to replace the corresponding rack assembly without redesigning the cabinet concept. However, that does not mean every -looking rack is interchangeable. Confirm the exact ordering code, rack revision, F7553 coupling-module arrangement, BV7032 cable length, and installed I/O population before release to the field.
No firmware recompile should normally be required for a purely mechanical rack replacement. Configuration-dependent items remain critical, particularly the rack population, bus connection, power-distribution arrangement, and installed coupling hardware.
⚠️ Field Traps — Watch Out
1. Incomplete assembly-kit replacement: is documented as an assembly kit, not merely an empty rack. The standard kit includes the rack, F7553 coupling module, and BV7032 flat cable. Receiving only the rack frame when the application requires the complete kit can create a commissioning delay.
2. Slot and bus configuration errors: Slots 1–16 are assigned to I/O modules, while slot 17 is used for F7553 in the documented kit. Optional F7133 modules occupy slots 18–21. Record the existing rack population and cable routing before dismantling; moving modules into an apparently free position can create an incorrect hardware configuration.
Module 6: Quality Assurance SOP
The should be inspected as a complete rack assembly when the order requires the documented kit configuration.
- OEM identification visual inspection: Verify HIMA markings, designation, 997009302 ordering code, rack identification, revision markings, and associated component labels.
- Mechanical inspection: Check the 19-inch rack frame, 4-U structure, mounting hardware, backplane/connector interfaces, integrated cable tray, and hinged label holder for deformation or mechanical damage.
- Assembly verification: Confirm the presence and identification of the coupling module in the expected slot 17 position and verify the BV7032 flat-cable assembly against the ordered cable length.
- Slot inspection: Check all 21 positions for damaged guides, connectors, foreign material, bent contacts, or evidence of forced insertion.
- Power-distribution inspection: Where F7133 modules are supplied, verify their location and condition in the applicable slots 18–21.
- Bus continuity verification: Using an approved HIMA-compatible test setup, confirm continuity through the applicable rack and coupling path before shipment.
- I/O mounting verification: Fit representative compatible I/O modules where the test procedure permits and verify mechanical seating, connector engagement, and retention.
- Configuration record: Photograph rack revision, installed , cable identification, slot population, and any F7133 distribution modules.
- Final QC record: Retain serial or identification markings, inspection photographs, continuity results, assembly checklist, and QC approval with the shipment record.
The key identification point is clear: HIMA 997009302 corresponds to the H41q/H51q I/O rack assembly, rather than an individual CPU or I/O electronics module. HIMA’s own documentation lists as an EA assembly rack, while the detailed documentation defines the associated rack, coupling module, cable, and optional F7133 distribution modules.
