HIMA H6200A | Safety Analog Isolator Power Supply

Description

• Brand: HIMA
• Full Model Number: H 6200A
• System/Series Family: HIMA Safety-Related Analog Interface / HIMax field interface ecosystem
• Core Function: Safety-related analog repeater power supply and isolator for 4-20 mA field signals
• Top 3 Hardcore Specs: 4-20 mA analog signal; (Ex)i hazardous-area interface; HART-compatible, 2- or 3-wire transmitter support
• Safety Rating: SIL 3 / Category 4 PL e capability under applicable certified conditions
• Hazardous Area Rating: Class I, Division 2, Groups A-D; T4A, -20°C to +60°C under FM-approved conditions
• Stock Status: Current inventory confirmation required; New Surplus or Fully Tested Refurbished availability subject to batch

Module 3: Technical Product Introduction

When an intrinsically safe transmitter is feeding a safety-related analog input, the interface device becomes part of the measurement chain. The HIMA H6200A is an analog repeater power supply designed for safety-related 4-20 mA process signals, providing isolation and transmitter power for 2- or 3-wire applications. HIMA documentation identifies it as an (Ex)i, HART-capable interface, and HIMA safety documentation shows the H 6200A used as an isolation amplifier between Zone 1 field transmitters and safety-related analog input modules.

For safety applications, the certification basis is more important than a generic signal-isolator label. HIMA’s current TÜV certificate identifies the H 6200A as a safety-related Analog Repeater Power Supply for 4-20 mA process-control and machinery applications, with a defined safe state below 0.5 mA and capability up to SIL 3 and Category 4 / PL e under the specified conditions. The current certificate is valid through July 11, 2030.

Module 4: Application Scenarios & Field Realities

• In an ESD loop serving a hazardous process area, the H6200A provides the isolation and transmitter-power interface needed between an intrinsically safe field device and the safety-related analog input. HIMA documentation specifically illustrates its use for Ex protection in Zone 1 installations.
• For refinery or petrochemical pressure, temperature, and flow transmitters, the critical issue is not simply converting a current signal. The interface must preserve the safety architecture while maintaining a usable 4-20 mA measurement path and HART communication capability. The H 6200A is documented for 2- and 3-wire, 4-20 mA applications with HART.
• Where a safety PLC or HIMax analog input is connected to Zone 1 instrumentation, the H 6200A can be placed on the field-interface side rather than relying on the input module’s internal transmitter supply. HIMA documentation notes that the transmitter supply of the analog input is not used when an external power-supply isolator such as the H 6200A is wired.
• In machinery or burner-management safety functions, certification scope matters during engineering review. The latest HIMA-related TÜV certification explicitly covers process-control and machinery applications and recognizes use up to SIL 3 / PL e when the certified conditions are satisfied.

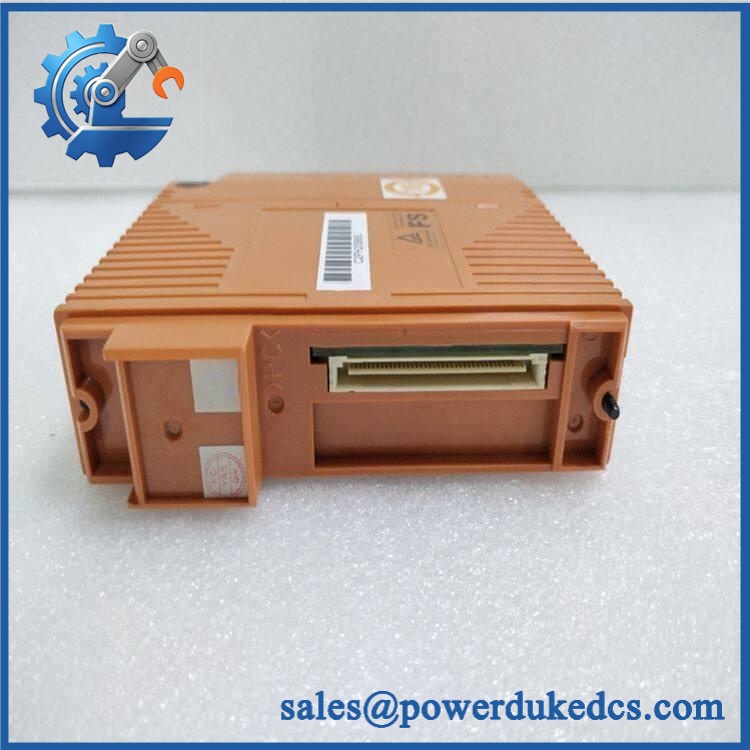

HIMA H6200A

Module 5: Migration, Compatibility & Installation Traps

Replacement Matrix

Replacement classification: Direct replacement only when the existing device is specifically HIMA H 6200A and the replacement matches the required hardware/revision, hazardous-area approval, wiring arrangement, and project safety documentation.

Software compatibility: No routine application-program recompile should be assumed for the isolator itself; however, the connected safety input configuration, signal scaling, diagnostic behavior, and project safety documentation must still be checked before commissioning.

Cross-model replacement: Not a universal drop-in replacement for other HIMA interface devices such as H 4007, H 4012, or H 4135A. Their functions and electrical roles differ.

Field Traps — Watch Out

1. Ex protection is a system-level calculation. The H 6200A being certified for (Ex)i service does not automatically make every transmitter loop compliant. Entity parameters, barrier/interface selection, cable characteristics, grounding, and the actual hazardous-area classification must be checked against the project documentation and applicable approval conditions. HIMA documentation specifically places the H 6200A in the Zone 1 Ex-protection signal path.

2. Do not judge compatibility from the 4-20 mA terminals alone. HART communication, 2-wire versus 3-wire transmitter wiring, loop power requirements, and the connected analog input architecture all matter. During replacement, verify terminal assignment and loop topology before energizing the circuit (especially where the existing input module previously supplied transmitter power).

Module 6: Quality Assurance SOP

Pre-Shipment Inspection Protocol for HIMA H6200A

• OEM identity inspection: Verify HIMA product marking, model designation, nameplate information, manufacturing identifiers, and physical construction against available HIMA documentation.
• Visual condition check: Inspect enclosure, terminals, connectors, mounting hardware, labels, and safety markings for cracks, deformation, corrosion, contamination, or evidence of unauthorized modification.
• Certification marking review: Confirm that the unit’s identification and applicable certification information are consistent with the intended application; HIMA publishes current H 6200A ATEX and IECEx documentation.
• Electrical continuity check: Verify accessible terminals and interface paths against the applicable wiring documentation before functional testing.
• Power-on verification: Apply the appropriate test supply under controlled laboratory conditions and monitor the unit for abnormal current draw, overheating, visible faults, or unstable operation.
• Analog-loop verification: Exercise the 4-20 mA signal path across representative test points and confirm predictable signal transfer through the isolator.
• HART verification: Where the test setup supports HART, perform a communication handshake and confirm that the digital communication path is preserved as expected.
• Safety-function verification: Confirm output behavior against the documented safety concept, including the certified safe-state definition below 0.5 mA where applicable.
• Final QC record: Record model, hardware identification, test date, measured results, inspection status, and packing condition before release.
• ESD-controlled packaging: Protect the tested unit against electrostatic discharge, mechanical impact, moisture, and terminal damage during storage and shipment.
