Description
- Brand HIMA
- Full Model Number K7214 996721402
- System/Series Family HIQuad / H41q / H51q Safety System Power Distribution
- Core Function Fusing and current distribution for 24 VDC safety-system loads
- Top 3 Hardcore Specs 120 A total current | 18 circuit-breaker slots | 24 VDC distribution
- Stock Status New Surplus — verify condition, revision, and availability before order
Module 3: Technical Product Introduction
A failed distribution board can remove power from several safety-system circuits even when the upstream power supply is still healthy. The HIMA K7214 996721402 is a dedicated fusing and current-distribution assembly intended for 24 VDC applications. HIMA documentation identifies the K7214 as a 120 A distribution unit with 18 circuit-breaker slots, placing it within the power-supply and current-distribution section of the approved HIQuad X equipment.
For maintenance planning, the 18-way circuit allocation matters as much as the 120 A total rating. Each branch must remain within the installed protection scheme, while the aggregate load must stay within the distribution assembly’s specified capacity. The K7214 is therefore not a programmable module and does not provide a field communication protocol; its value is electrical distribution, branch protection, and orderly fault isolation. Exact rack, cabinet, fuse, and breaker configuration should be checked against the original HIMA engineering drawings before replacement.
Module 4: Application Scenarios & Field Realities
- In a HIMA safety cabinet carrying numerous 24 VDC consumers, the K7214 provides separate protected branch circuits so one downstream short circuit can be isolated without taking every connected load offline. HIMA’s approved equipment schedule specifically defines 18 circuit-breaker positions for the K7214.
- When a plant expands its safety-system cabinet, the 18-position arrangement becomes useful for maintaining individually protected feeder paths rather than adding improvised external fuse holders. The overall distribution requirement still has to remain within the documented 120 A capacity.
- During a control-room outage investigation, technicians can work from the branch-protection structure instead of tracing every load back to a common supply terminal. That reduces diagnostic ambiguity when multiple 24 VDC loads share the same upstream power source.
- For H41q or H51q maintenance work, part-number accuracy is important because HIMA documents as a fusing/current-distribution component within the wider HIQuad family. It should be treated as cabinet infrastructure, not as an interchangeable PLC I/O card.

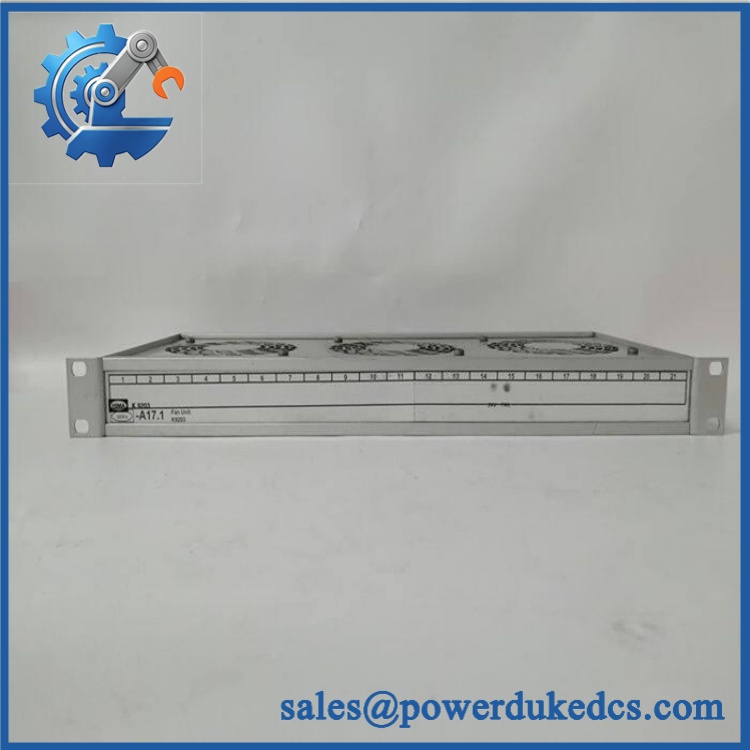

HIMA K7214 996721402
Module 5: Migration, Compatibility & Installation Traps
Replacement Matrix
| Replacement Status | Engineering Assessment |
|---|---|
| Drop-in Replacement | Yes, for a like-for-like 996721402 replacement in an existing approved HIMA cabinet with the same wiring and protection configuration. |
| Software Compatible | Not applicable. is a passive electrical distribution and protection assembly rather than a programmable module. |
| Hardware Modification Required | Normally no for exact-part replacement. Modification may be required when changing cabinet architecture, branch-protection design, conductor sizing, or the associated power-supply arrangement. |
⚠️ Field Traps: Watch Out
Total current is not branch current. HIMA identifies as a 120 A distribution unit with 18 circuit-breaker slots. That 120 A figure should not be interpreted as permission to load every individual branch to the same value. The breaker or fuse fitted to each circuit remains the controlling protection element.
Verify the exact cabinet wiring before disconnecting the old unit. A distribution board can look electrically simple, yet incorrect transfer of a branch conductor can move a safety-system load onto the wrong protected circuit. Record every terminal, fuse/breaker position, conductor size, and external supply path before removal.
Do not substitute on physical appearance alone. Public product listings sometimes describe with conflicting current figures; HIMA’s approval schedule specifies 120 A and 18 circuit-breaker slots for 24 VDC, which should take precedence when determining the engineering baseline.
Module 6: Quality Assurance SOP
A should leave inventory only after the distribution paths and physical protection hardware have been checked against the expected cabinet configuration.
- OEM anti-counterfeit visual inspection: Verify HIMA branding, exact identification, 996721402 reference, enclosure construction, terminal arrangement, labels, and visible revision information against available HIMA references.
- Part-number verification: Record 996721402 exactly and capture all available serial, revision, and manufacturing markings.
- Mechanical inspection: Examine mounting hardware, terminal interfaces, fuse or circuit-breaker positions, insulating barriers, covers, and enclosure surfaces for impact, corrosion, contamination, or unauthorized modification.
- Conductor-path inspection: Confirm that the distribution paths are mechanically secure and that no terminal shows discoloration, overheating evidence, looseness, or damaged insulation.
- Protection-position verification: Inspect all 18 circuit positions and document the installed protective devices where the unit is supplied populated or configured for a specific cabinet. HIMA specifies 18 circuit-breaker slots.
- 24 VDC distribution test: With a controlled laboratory setup, energize the applicable input and verify correct voltage distribution at representative branch outputs.
- Load verification: Apply an appropriate controlled load and monitor voltage stability, connection temperature, and protective-device behavior without exceeding the documented distribution rating.
- Branch isolation test: Verify that each protected branch can be isolated as intended and that a test fault on one branch does not unintentionally energize or interrupt unrelated branch circuits.
- Polarity and continuity check: Confirm correct positive/negative routing and continuity for the intended distribution paths before shipment or cabinet installation.
- Diagnostic check: is a distribution/protection assembly rather than a programmable CPU or communication module; therefore, a software POST or protocol handshake is not the appropriate acceptance test.
- System-level acceptance: After installation, verify the associated HIMA power supplies, branch voltages, breaker states, and downstream safety-system loads as a complete cabinet circuit.
- Final QC record: Record visual inspection results, terminal checks, branch-voltage measurements, protection-device configuration, traceability information, and packaging status.
Technical Identification Note: HIMA’s classification documents identify as a fusing and current-distribution unit rated at 120 A with 18 circuit-breaker slots for 24 VDC. This manufacturer-referenced description is preferable to unverified third-party specifications when preparing a replacement or procurement record.
