Description
- HIMA F8650X | Traceable Industrial Safety Module
Unboxing & Physical Snapshot
- Model & Brand: HIMA F8650X
- Product Type: Safety-Related Central Module / CPU Module
- Application: Central processing module for HIMA PES H51q-MS, H51q-HS, and H51q-HRS safety systems. The F8650X is designed for safety-related applications up to SIL 3 according to IEC 61508.
- Approximate Physical Dimensions (W × H × D):
- Width: approximately 40 mm
- Height: approximately 160 mm
- Depth: approximately 144 mm
- Installation requirement: approximately 8 SU (European standard rack units)
- Estimated Shipping Weight: Approximately 0.8–1.0 kg including ESD packaging and protective materials.
- What’s in the Box:
- HIMA F8650X central module
- Front diagnostic display section
- Backplane connection interface
- Battery-backed memory assembly
- ESD shielding bag
- Protective transport packaging
- Documentation when supplied with controlled inventory
Product Introduction
The HIMA F8650X is installed as the central processing unit within a HIMA PES safety rack architecture. It occupies a defined rack position and communicates through the internal backplane with I/O and communication modules. The module contains dual clock-synchronized processors, safety monitoring functions, diagnostic display hardware, and isolated communication interfaces (which is critical for certified safety applications where fault detection and controlled shutdown behavior must be maintained).
This module should be handled as a safety lifecycle component, not as a standard PLC spare. Replacement requires verification of firmware version, safety configuration, rack compatibility, and approval records. Inspect the front display PCB, connector pins, retaining mechanism, and battery condition before installation. A physically correct replacement can still create validation issues if the safety program environment does not match.
Core Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | HIMA |
| Model Number | F8650X |
| Product Type | Safety Central Module / CPU |
| Compatible Systems | HIMA PES H51q-MS, H51q-HS, H51q-HRS |
| Safety Integrity Level | SIL 3 according to IEC 61508 |

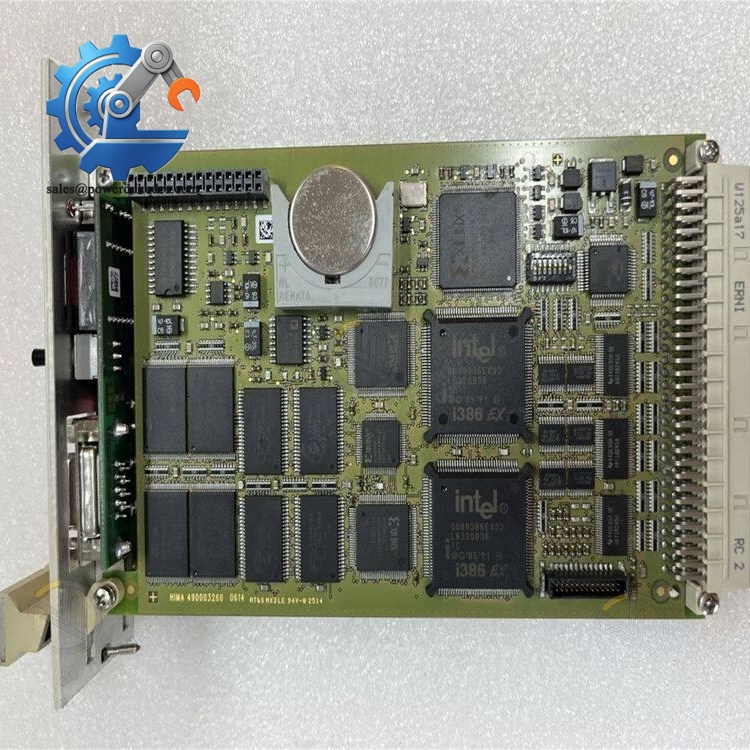

| Processor Type | Two clock-synchronized Intel 386EX 32-bit processors |
| Processor Frequency | 25 MHz |
| Operating System Memory | 1 MB Flash-EPROM per processor |
| User Program Memory | 1 MB Flash-EPROM per processor |
| Data Memory | 1 MB SRAM per processor |
| Serial Communication | 2 × electrically isolated RS-485 interfaces |
| Diagnostic Display | Four-digit matrix display |
| Fault Monitoring | Safety watchdog output |
| Watchdog Output | 24 VDC, up to 500 mA, short-circuit protected |
| Battery Backup | CR2477N buffer battery |
| Rack Space Requirement | 8 SU |
| Power Supply | 5 VDC |
| Power Consumption | Approximately 2 A at 5 VDC |

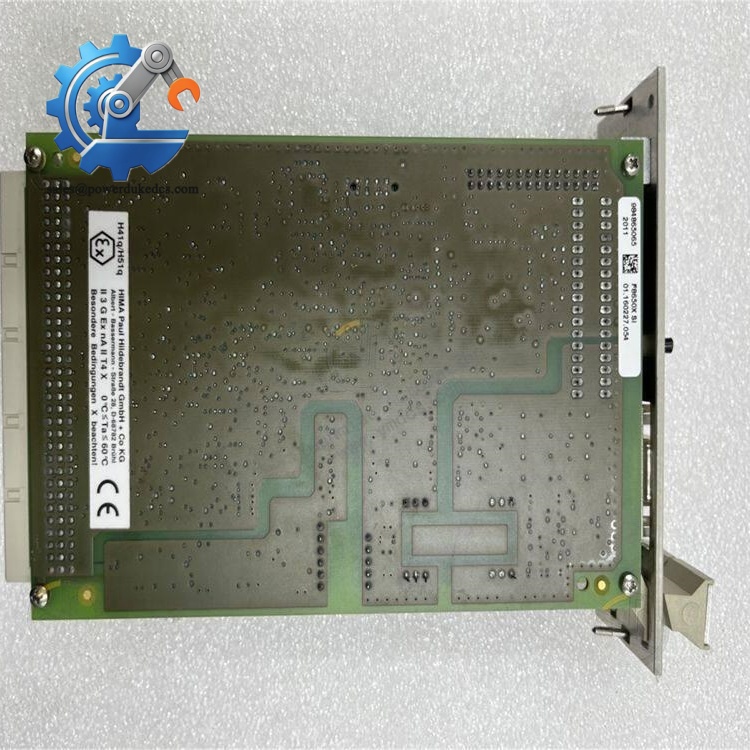

| PCB Construction | Two European standard PCBs plus diagnostic display PCB |
| Operating Temperature | Approximately 0°C to +50°C |
| Storage Temperature | Approximately -40°C to +85°C |
HIMA F8650X
Global Compliance & Industry Certifications
Expected compliance considerations for the HIMA safety controller include:
- CE Mark for applicable EMC and electrical safety requirements.
- IEC 61508 SIL 3 capability for safety-related programmable electronic systems.
- UL/cUL Listed or Recognized status depending on the certified system configuration.
- ATEX/IECEx consideration when installed within a complete hazardous-area safety system.
- Marine approvals such as DNV GL when incorporated into approved offshore or vessel automation packages.
IEC 61508 SIL 3 capability is significant because it defines requirements for reducing dangerous failure probability in safety instrumented functions. The certification applies within the validated HIMA safety architecture, including approved hardware, software, and installation practices.
Verify specific lot certifications with OEM.
Long-Term Storage & Asset Preservation Guide
- Keep the inside the original anti-static (ESD) shielding bag during storage. Protect the backplane contacts and diagnostic display components from contamination.
- Check the backup battery condition before installation. The CR2477N battery has a limited service life and should be replaced according to maintenance procedures or battery status indication (which is critical for preserving retained safety data).
- Maintain warehouse humidity below 60% RH to protect PCB coatings, connector surfaces, and internal electronic components.
Check the date code. Store the firmware revision, safety configuration records, and serial information with the physical spare.
Physical Installation Prerequisites
- Install only into the approved HIMA PES H51q rack configuration.
- Verify rack slot assignment and module addressing before insertion.
- Ensure the backplane connector is clean and free of oxidation.
- Maintain cabinet airflow and leave adequate clearance around the rack for heat removal.
- Provide stable 5 VDC system power according to HIMA rack requirements.
- Verify protective earth bonding of the cabinet.
- Use ESD protection when handling the module.
- Confirm safety application parameters, firmware version, and validation records before returning the system to operation.
