HIMA F-PWR02 | HIQuad X Safety Power Buffer Module

Description

• Brand HIMA
• Full Model Number F-PWR02
• System/Series Family HIQuad X H51X
• Core Function 24 VDC buffer supply for I/O processing modules in H51X extension-rack architectures
• Top 3 Hardcore Specs 24 VDC buffered output | 4 A nominal current | Up to 20 ms voltage-failure compensation
• Stock Status New Surplus — final availability and condition confirmation required

Module 3: Technical Product Introduction

A failed auxiliary supply path in an H51X architecture can take otherwise healthy remote I/O out of service. The HIMA F-PWR02 is an optional watchdog buffer supply module for the HIQuad X H51X system. It is used to provide buffered 24 VDC to the I/O processing level when the upstream power arrangement cannot adequately compensate for short voltage interruptions. HIMA documentation identifies F-PWR02 specifically for H51X extension-rack applications and places the buffer modules in the H51X base rack, with slot 6 associated with LS1+ and slot 7 with LS2+.

The important specification is not a large power rating; it is controlled ride-through behavior. Technical documentation describes the F-PWR02 as a buffer module with a nominal 24 VDC operating output and 4 A rated current, intended to compensate voltage dropouts up to 20 ms when the external power supply does not satisfy that requirement. In redundant I/O arrangements, separate F-PWR02 modules can serve the corresponding rack groups, so replacement should preserve the existing LS1+/LS2+ allocation.

Module 4: Application Scenarios & Field Realities

• On a large installation with multiple extension racks, the F-PWR02 is used when the plant power architecture cannot provide the required short-duration voltage-failure compensation. The module keeps the I/O processing supply buffered rather than treating every brief upstream disturbance as a system event.
• Where I/O redundancy is divided by rack ID, slot assignment matters. HIMA documentation shows the buffer module in slot 6 supplying one side of the buffered I/O arrangement while slot 7 serves the other, allowing redundant I/O levels to be maintained across the corresponding extension racks.
• During a brownout-prone plant power event, this module becomes useful when the external supply cannot guarantee the required ride-through interval. The design target is specifically short voltage interruptions up to 20 ms; it should not be treated as a substitute for an appropriately engineered plant DC source.
• For maintenance on an aging system, F- is a specialized spare rather than a generic 24 VDC power supply. The replacement must match the rack architecture, buffered-voltage wiring, and intended redundancy arrangement (a visually similar supply module is not an electrical equivalent).

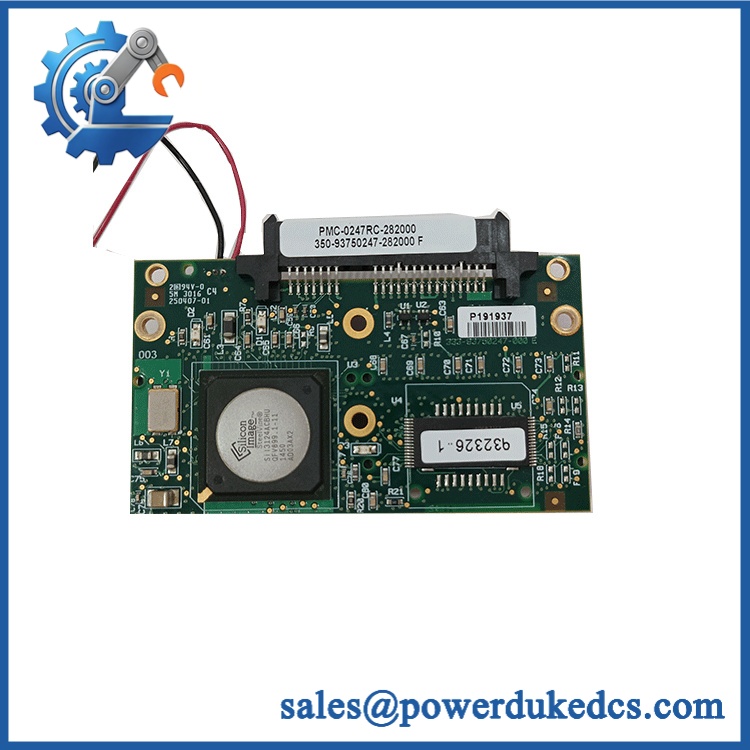

HIMA F-PWR02

Module 5: Migration, Compatibility & Installation Traps

Replacement Matrix

⚠️ Field Traps: Watch Out

LS1+/LS2+ allocation is critical. The backplane documentation identifies the buffered supply paths associated with F-, with slot 6 supplying LS1+ and slot 7 supplying LS2+. Installing the spare in the wrong position or transferring the wiring incorrectly can defeat the intended redundant I/O power structure.

Do not confuse F- with F-PWR01. F-PWR01 is the HIQuad X power supply module providing 24 VDC/5 VDC at 50 W, while F- is an optional watchdog buffer module for the extension-rack power architecture. They are not interchangeable simply because both appear in the same HIQuad X system.

Module 6: Quality Assurance SOP

Before shipment, each HIMA F- unit should pass a documented inspection sequence rather than relying on exterior appearance alone.

• OEM anti-counterfeit visual inspection: Verify HIMA identification markings, model designation, connector arrangement, mechanical construction, labels, and visible board or enclosure details against known reference documentation.
• Part-number verification: Confirm the exact designation and record serial or traceability information where available.
• Mechanical inspection: Check the enclosure, mounting interfaces, terminal areas, connectors, retaining hardware, and evidence of impact, corrosion, contamination, or unauthorized repair.
• Electrical power-path verification: Apply the controlled test voltage required by the applicable test setup and verify the buffered 24 VDC output remains within the expected operating range under test conditions.
• Current-path check: Verify the module can support the specified nominal 4 A buffer-current requirement without abnormal heating or instability.
• Ride-through test: Where the available test fixture permits, introduce a controlled short-duration supply interruption and verify the buffered output behavior against the expected compensation requirement, with special attention to the 20 ms design criterion.
• Diagnostic inspection: Record all available module and rack diagnostic indicators. Do not assume a CPU-style ERR/RUN LED scheme applies directly to F-; the actual indicator behavior must be checked against the relevant HIMA documentation.
• System-level communication handshake verification: Because F- is a power/buffer module rather than a communications interface, verify the downstream I/O architecture through the associated processor, I/O processing, and extension-rack diagnostics after installation. The objective is to confirm that buffered power does not introduce rack-level faults or loss of I/O availability.
• Redundancy check: For systems using both buffer positions, confirm that the LS1+/LS2+ allocation and corresponding extension-rack distribution remain consistent with the original engineering design.
• Final QC record: Attach the inspection result, measured values, visual inspection status, traceability data, and packing confirmation to the shipment record.

Engineering Note: HIMA identifies the F- as an optional HIQuad X component for extension-rack buffering, not as a general-purpose 24 VDC power supply. The HIMA technical documentation specifically lists it as the watchdog supply module for extension racks.
