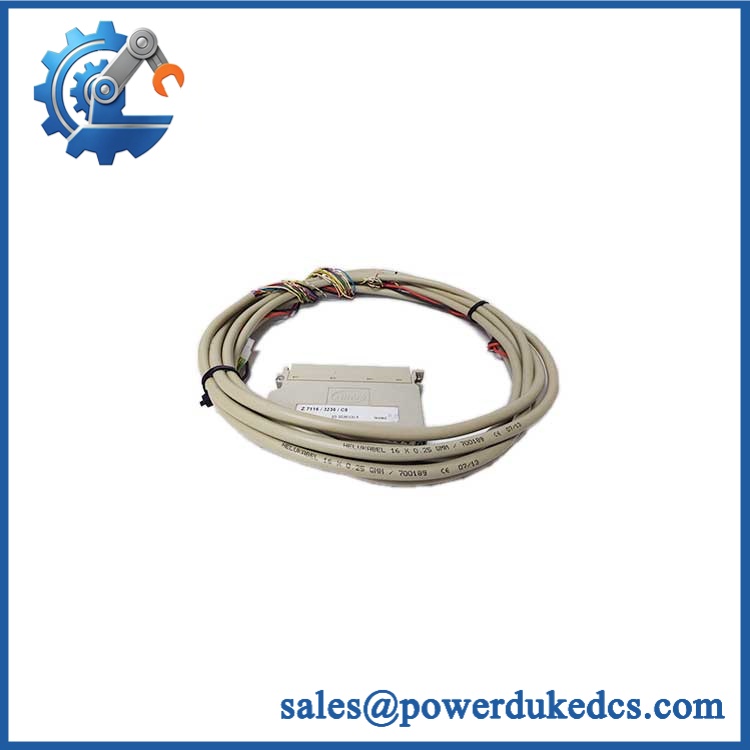

HIMA Z7126 | Signal Connector Adapter Assembly | F6705

Description

• Brand: HIMA
• Full Model Number: Z7126
• System/Series Family: HIMA F-Series / HIQUAD I/O Interface Components
• One-Sentence Core Function: Module-specific connector or terminal-adapter assembly used to interface compatible HIMA I/O hardware with field wiring
• Top 3 Hardcore Specs: Configuration-dependent part number; connector/interface assembly; compatible module family must be verified from the complete suffix
• Stock Status: New Surplus / Factory Original — confirm complete designation and connector variant before shipment

Module 3: Technical Product Introduction

A Z7126 should not automatically be purchased or cataloged as a standalone digital-input card. HIMA’s own certification documentation shows the designation in compound configurations such as Z 7126/6705/.., where it is associated with F6705, and supplier records identify Z7126 as a connector or interface component rather than an independent CPU or I/O processing module.

The engineering issue is the complete suffix. A commercial HIMA spare-parts listing identifies Z7126/6208/C5/U10V specifically as a connector, while other records associate Z7126 with F6705 equipment. That means the base designation alone does not establish connector pinout, cable length, terminal arrangement, or the supported target module. Before replacement, match the complete Z7126 configuration against the cabinet drawing, removed part, and module designation.

Module 4: Application Scenarios & Field Realities

• When replacing an HIMA F-Series I/O interface, Z7126 may be the physical connection element between the rack-mounted module and the field-side wiring. The exact target module must be confirmed; HIMA certification records explicitly use the Z7126 designation together with F6705.
• During brownfield cabinet maintenance, the connector assembly is often removed from an otherwise serviceable electronics card. Photograph the original plug orientation, cable routing, and terminal identification before disconnecting anything. Connector families can look almost identical while carrying different channel assignments.
• For spare inventory control, store the complete ordering designation rather than booking the item simply as “Z7126.” One documented HIMA listing specifies Z7126/6208/C5/U10V as a connector, showing why the suffix is operationally significant.
• Where an I/O module has been replaced but field signals remain unavailable, inspect the mating connector and terminal-adapter assembly before suspecting the new electronics. A damaged contact, incorrect mating position, or wrong connector variant can interrupt otherwise healthy field circuits.


  HIMA Z7126

Module 5: Migration, Compatibility & Installation Traps

Replacement Matrix

⚠️ Field Traps — Watch Out

1. The base number is not enough.
Do not approve a Z7126 replacement based solely on the six-digit designation. HIMA documentation uses Z7126 in compound part numbers, and commercial records show variants such as Z7126/6208/C5/U10V. The complete suffix defines the actual connection arrangement.

2. Do not confuse the connector with the I/O module.
HIMA’s certification documentation identifies F6705 as the module in the configuration Z7126/6705/... The Z7126 designation therefore cannot safely be interpreted as the electronic I/O module itself.

3. Pin mapping must be checked before energization.
Even a mechanically compatible connector can be electrically incorrect if the terminal or cable variant differs. Verify every conductor against the approved HIMA wiring diagram before commissioning.

Module 6: Quality Assurance SOP

1. OEM anti-counterfeit visual inspection — inspect HIMA markings, connector housing, cable jacket, terminal hardware, labels, and manufacturing identifiers.
2. Exact part-number verification — record the complete visible designation, including every slash, suffix, and configuration code.
3. Target-module verification — identify the mating HIMA module and compare it against the cabinet BOM and original connector arrangement.
4. Mechanical inspection — check connector locks, keying features, contacts, insulation, strain relief, housing, and cable termination for damage or deformation.
5. Pinout verification — perform point-to-point continuity checks against the approved wiring documentation. Record channel-by-channel results.
6. Contact-resistance inspection — where the applicable test method permits, check for abnormal contact resistance or intermittent connection at the connector interface.
7. Mating test — verify correct mechanical engagement with the intended HIMA module without excessive insertion force or evidence of mis-keying.
8. Field-wiring verification — compare every terminal position and conductor identification against the original installation records before installation.
9. Communication handshake verification — not applicable as an independent connector test. Any system communication check should be performed after the verified assembly is installed with its compatible HIMA electronics.
10. Final QC and packaging — photograph the complete designation, record continuity-test results, protect connector contacts against contamination and mechanical impact, and package the assembly for shipment.

Procurement note: Public evidence supports treating Z7126 as a configuration-dependent HIMA connection/interface designation, not as a generic standalone I/O module. HIMA’s own certification documentation is the strongest available evidence and shows Z7126 used in compound configurations with specific modules such as F6705.
