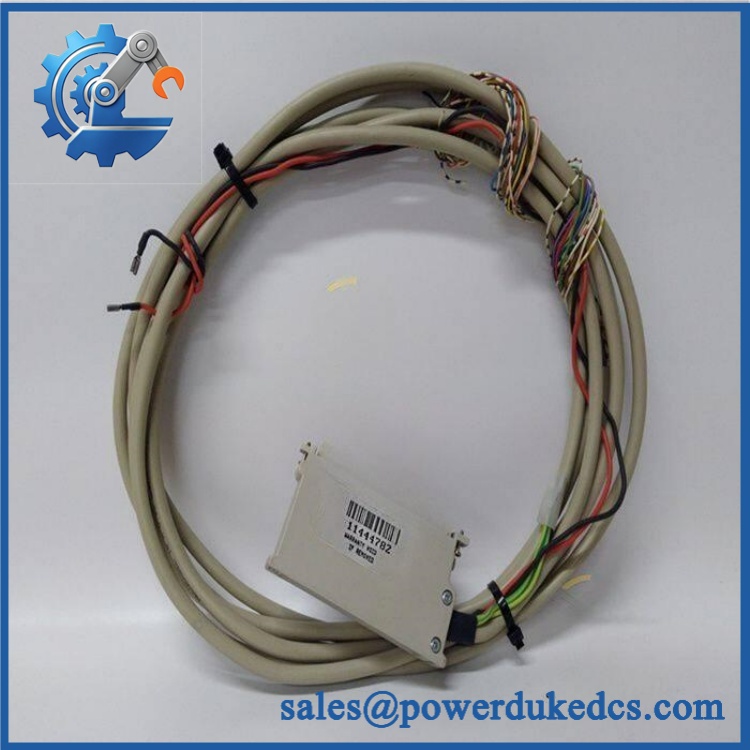

HIMA Z1006 | HIQuad X Redundant Cable Plug Assembly

Description

• Brand: HIMA
• Full Model Number: Z1006
• System/Series Family: HIQuad X / HIMA Safety Systems
• One-Sentence Core Function: Redundant cable plug assembly for maintaining dual-path field connections in safety-related HIMA systems
• Top 3 Hardcore Specs: Redundant cable connection; up to 24 VDC / 2 A; −40°C to +85°C operating range
• Stock Status: Exact variant and physical condition to be confirmed

Module 3: Technical Product Introduction

A damaged connection interface can take a healthy safety I/O circuit out of service even when the controller and field device are operating normally. HIMA Z1006 is identified in available technical and product references as a redundant cable plug used for safety-system connections. Its purpose is connection integrity rather than signal processing: the assembly provides a dual-path connection arrangement so that the associated safety circuit can retain a redundant wiring path. Current product references associate Z1006 with HIMA safety platforms including HIQuad X and other HIMA systems.

Available references specify an operating range of approximately −40°C to +85°C and an electrical capability of up to 24 VDC / 2 A for the cable-plug configuration. A separate current listing describes Z1006 as a redundant cable plug rather than a conventional digital I/O module. This distinction is important: despite several reseller pages labeling Z1006 as an input or control module, the more specific product references consistently identify the part as a cable plug / redundant connection interface.

Module 4: Application Scenarios & Field Realities

• When a redundant safety connection is being restored after cable or connector damage, Z1006 is relevant as the connection hardware between the field wiring and the associated HIMA system. Verify the mating connector and complete cable arrangement before removing the existing assembly; the correct plug body alone does not prove wiring compatibility.
• On HIQuad X installations, redundant connection hardware is used where maintaining signal availability is important to the safety architecture. Product references specifically identify as a redundant cable plug for HIMA HIQuad X systems.
• In hot or cold plant areas, the cited −40°C to +85°C operating range gives useful installation guidance, but actual cabinet temperature should still be measured. Connector heating can also become significant when the circuit approaches the stated current capability.
• During an emergency spare replacement, treat as a configured connection component rather than an electronic I/O card. Photograph the original connector, cable routing, pin assignment, and any revision marking first. This is especially important because some commercial listings incorrectly categorize the part as a digital input or SIS control module.

HIMA Z1006

Module 5: Migration, Compatibility & Installation Traps

Replacement Matrix

Replacement Classification: Drop-in Replacement Only When the Connector and Wiring Configuration Match

A replacement can be treated as a direct hardware exchange when the existing installation uses the same connection arrangement, mating hardware, cable termination, and system architecture. No firmware flash or software recompilation is normally associated with replacing a passive cable plug. Compatibility depends on the physical connection, electrical rating, redundancy arrangement, and approved system wiring.

The manufacturer identification should also be verified before procurement. Available references consistently identify as a HIMA cable plug, while several generic product pages incorrectly describe it as an input or control module. For a safety-system spare, the physical nameplate and original engineering documentation should take precedence over a generic online category.

⚠️ Field Traps — Watch Out

1. Misclassification as an I/O module: Do not configure cabinet software or replace a failed electronic I/O card simply because a supplier page calls an “input module.” The more specific references identify as a redundant cable plug. Treat it as connection hardware unless the physical part and OEM documentation establish otherwise.

2. Redundancy wiring mismatch: Both connection paths must follow the approved cabinet and field wiring diagram. Before energization, verify conductor continuity, pin-to-pin assignment, shielding/grounding requirements, and the mating interface. A connector can fit mechanically while still carrying an incorrect circuit assignment.

Module 6: Quality Assurance SOP

The should be released as a connection assembly only after mechanical, electrical, and identification checks are complete.

• OEM identification visual inspection: Verify HIMA branding, designation, complete label information, connector markings, cable identification, and visible revision information.
• Variant verification: Compare the supplied unit with the customer’s original assembly and approved wiring documentation. Record all visible option or revision markings.
• Mechanical inspection: Examine the connector housing, locking mechanism, pins or contacts, cable entry, strain relief, seals, and mounting hardware for deformation, corrosion, contamination, or impact damage.
• Cable continuity test: Perform pin-to-pin continuity verification against the approved wiring diagram for both redundant paths.
• Insulation verification: Where permitted by the system documentation, perform insulation-resistance testing using an appropriate test method while protecting connected electronic equipment from the test voltage.
• Redundant-path verification: Confirm that the two connection paths remain electrically independent where the approved safety architecture requires separate paths.
• Power-path verification: Where the supplied assembly is part of a powered circuit, verify the applicable 24 VDC supply path and maximum expected current against the approved circuit design.
• Mating-interface test: Confirm correct mechanical engagement, locking, retention, and connector orientation with the intended HIMA mating hardware.
• Environmental inspection: Check cable jacket condition and sealing surfaces, particularly for installations expected to operate near the cited −40°C to +85°C range.
• Final QC record: Retain photographs of the complete part marking, connector condition, continuity readings, wiring verification, revision information, and final QC approval.

For , accurate product classification is the first purchasing control. The strongest available references identify the part as a redundant cable plug, with published specifications including redundant connection, up to 24 VDC / 2 A, and an operating range of −40°C to +85°C. Do not represent it as a digital input module without confirming the exact physical variant and OEM documentation.
