HIMA Z7138 | F3330 F3331 Eight Channel Cable Plug Assembly

Description

• Brand HIMA
• Full Model Number Z7138
• System/Series Family H41q / H51q safety system
• Core Function 8-channel cable plug and field-wiring interface for HIMA F3330/F3331 digital output modules
• Top 3 Hardcore Specs 8 channels | 2-pole wired connection | Yellow LED channel indication 01–08
• Stock Status New Surplus — verify exact cable configuration before shipment

Module 3: Technical Product Introduction

A replacement output module is only useful when its field connection is correctly matched. HIMA Z7138 is an 8-channel cable plug/interface associated with the H41q/H51q digital-output architecture and is used with compatible output modules such as F3330 and F3331. Available technical listings identify Z7138 as a cable-plug assembly with pre-fabricated wiring and yellow channel indicators, providing the physical connection between the safety output hardware and field wiring.

The important distinction is that Z7138 is not the safety output electronics itself. It is the connection hardware. Listings identify eight channels, 2-pole wired connections, and yellow LED indicators numbered 01 through 08; variant suffixes can change the mating module and cable configuration. For example, Z7138/3330/C5 is documented as a wired 2-pole cable plug for F3330 with a 5 m cable. That suffix must be checked before ordering a replacement.

Module 4: Application Scenarios & Field Realities

• When replacing an F3330 digital output module in an H41q/H51q cabinet, Z7138 provides the associated eight-channel wiring interface. The plug should be treated as part of the termination arrangement rather than as a generic connector.
• For cabinets using LED-assisted channel diagnostics, the yellow indicators numbered 01–08 provide a local visual reference for the associated output channels. During troubleshooting, channel numbering should be cross-checked against the cabinet drawings before concluding that an output module itself has failed.
• On installations using prewired cable assemblies, the exact suffix matters. A base designation does not by itself establish the cable length, mating module, or complete assembly configuration. /3330/C5, for example, is specifically documented for F3330 with a 5 m cable.
• During shutdown maintenance, keeping the original cable routing and channel numbering is important. A physically compatible connector installed with crossed channels can create a field-device mapping error even though the connector itself fits correctly.

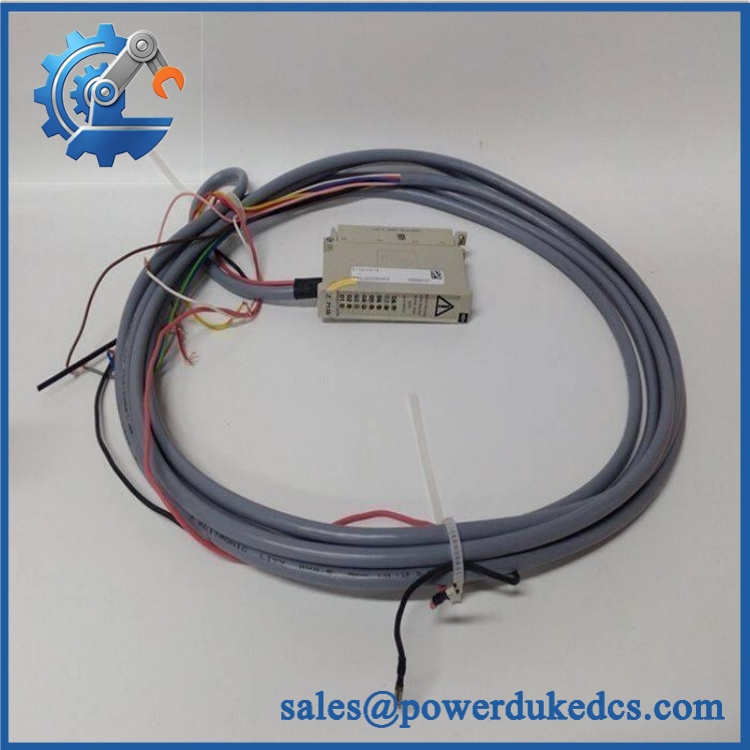

HIMA Z7138

Module 5: Migration, Compatibility & Installation Traps

Replacement Matrix

⚠️ Field Traps: Watch Out

The designation alone may be insufficient for procurement. Associated variants include configurations such as /3330/C5, where the suffix identifies the mating F3330 application and a 5 m cable. Check the complete part number on the existing assembly before issuing a replacement PO.

Do not confuse with . is the safety-related digital output module; is the cable/connection assembly associated with that output hardware. Replacing one with the other is not an equivalent substitution.

Verify channel order before reconnection. The eight-channel arrangement and LED numbering make the assembly easy to identify, but field conductors should still be transferred one channel at a time against the approved wiring diagram. A connector that is mechanically correct can still be electrically miswired.

Module 6: Quality Assurance SOP

should be inspected as a safety-system connection assembly, with particular attention to connector integrity, wiring identity, and variant matching.

• OEM anti-counterfeit visual inspection: Verify HIMA branding, identification, connector geometry, molded or marked part references, cable construction, and LED arrangement against controlled reference information.
• Part-number verification: Record the complete designation, including any suffix such as /3330/C5 or /3331, rather than recording only .
• Mechanical inspection: Examine connector housings, locking features, cable jackets, strain relief, conductor exits, and LED components for cracks, deformation, corrosion, contamination, or unauthorized repair.
• Channel identification check: Verify all eight channel positions and confirm that LED indicators 01–08 correspond to the expected physical channel order.
• Continuity test: Check each conductor from the module-side connection to the designated field-side termination using a controlled multimeter test.
• Polarity verification: Confirm the intended two-pole wiring arrangement for every channel before applying external power.
• Insulation check: Verify there is no unintended continuity between adjacent conductors, shielding elements where applicable, or connector contacts.
• LED indication test: Where the available test fixture supports it, energize representative channels and confirm that the corresponding yellow LED indications respond correctly.
• Mating verification: Test-fit the assembly with the designated HIMA output module and confirm proper mechanical engagement without excessive force.
• Cable-length and variant check: For assemblies supplied with cable, verify physical length and mating-module designation against the purchase specification; /3330/C5, for example, is specified with a 5 m cable for .
• Communication handshake verification: Not applicable to the passive cable plug itself. Acceptance should instead confirm correct signal continuity through the associated /F3331 output hardware.
• Final QC record: Document the exact part suffix, channel continuity results, polarity checks, LED test results, cable condition, traceability information, and packing status.

Technical Identification Note: Public technical references consistently identify as a cable plug / connection assembly associated with HIMA digital output hardware, particularly and F3331. Some secondary listings incorrectly categorize as an output module, so the physical part description and complete suffix should be verified before procurement.
