1. HONEYWELL FC-SDO-0824 | TÜV UL Certified Digital Output Unit

2. At-A-Glance Executive Brief

• Model: HONEYWELL FC-SDO-0824
• Brand: Honeywell
• Series: Safety Manager (SM) Safety I/O System
• Part Type: Safe Digital Output Module
• Core Function: Provides safety-rated 24 VDC digital outputs for controlling field actuators, solenoids, contactors, and other final control elements in Safety Instrumented Systems (SIS).
• Primary Use: Emergency shutdown systems, burner management systems, process safety applications, and high-integrity industrial control cabinets.
• Key Specifications:
  • 8 safe digital output channels
  • 24 VDC solid-state outputs
  • Maximum output current: 550 mA per channel
  • Short-circuit protected outputs
  • Conformal coated version for harsh environments
  • Safety approvals including CE, TÜV, UL, CSA, and FM (verify specific lot certification)

3. Product Introduction

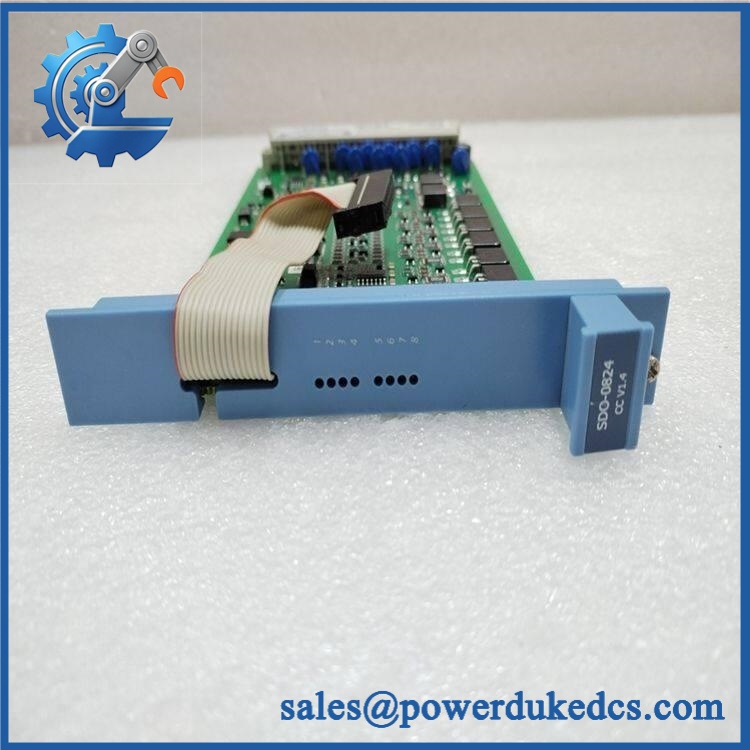

The Honeywell FC-SDO-0824 is installed within a Safety Manager chassis as the final output interface between the safety logic solver and field equipment. Its eight output channels provide controlled 24 VDC switching for safety-related devices such as shutdown valves, relays, and alarm actuators.

In field deployments, this module is treated as a safety-critical spare because a single failed output path can affect a protective function. The conformal coating version (the “FC” designation) adds protection against environmental contamination, which is important in locations with humidity, dust, or corrosive process atmospheres. Confirm the exact revision, terminal assembly, and Safety Manager configuration before replacement.

4. Core Technical Specifications

Parameter	Value
Manufacturer	Honeywell
Model Number	FC-SDO-0824
Product Type	Safe Digital Output Module
System Platform	Honeywell Safety Manager
Output Channels	8 channels
Output Voltage	24 VDC
Output Type	Solid-state source output
Maximum Output Current	550 mA per channel
Maximum Load Power	Approx. 13 W per channel
Output Protection	Short-circuit proof
Load Types	Resistive and inductive loads
Inductive Load Protection	Integrated suppression diode
Output Grouping	Two groups of four channels
Internal Power Supply	5 VDC / 24 VDC system supply
External 24 VDC Current	Approx. 70 mA without output load
Space Requirement	4 TE, 3 HE (4 HP, 3U)
Coating	Conformal coated
Approvals	CE, TÜV, UL, CSA, FM
Operating Temperature	-5°C to +70°C (load dependent)
Mounting	Safety Manager rack/chassis

HONEYWELL FC-SDO-0824

5. Application Scenarios & Pain Points

Safety output modules are judged by their ability to force equipment into a defined safe condition when normal control is unavailable.

• Emergency shutdown systems: The FC-SDO-0824 drives shutdown devices such as solenoid valves where output reliability affects plant protection functions.
• Oil and gas facilities: Installed in SIS cabinets controlling process isolation equipment in environments requiring certified safety hardware.
• Chemical plants: Used for safety interlocks and actuator control where incorrect output behavior can create hazardous operating conditions.
• Power generation systems: Supports protective functions requiring dependable 24 VDC switching.
• Offshore installations: The conformal-coated construction helps protect electronics against moisture and contamination exposure (environmental qualification must be verified for the installation site).

6. Common Error Codes & Diagnostic Symptoms

Symptom/Code: Output Channel Fault / Channel Diagnostic Alarm
→ Diagnosis: Possible short circuit, excessive load current, failed output driver, or field wiring issue.
→ Action: Check actuator wiring and load current, then replace the FC-SDO-0824 if the channel electronics fail.

Symptom/Code: Safety Output Cannot De-Energize
→ Diagnosis: Possible output switching fault, secondary de-energization path problem, or module internal failure.
→ Action: Verify safety logic diagnostics and replace the module if output shutdown capability is compromised.

Symptom/Code: Module Not Healthy / Rack Diagnostic Fault
→ Diagnosis: Possible backplane connection issue, hardware failure, or incompatible module revision.
→ Action: Check rack status and replace the module after configuration verification.

7. Cross-Reference & Lifecycle Migration

• Related Models:
  • FS-SDO-0824 — standard Safe Digital Output Module
  • FC-SDO-0824 — conformal coated Safe Digital Output Module
• Compatibility Notes:
  • Confirm Honeywell Safety Manager platform.
  • Verify firmware release compatibility.
  • Match module revision and safety certification requirements.
  • Confirm Field Termination Assembly (FTA) compatibility.
• Firmware Requirements:
  The FC-SDO-0824 is an I/O module and does not contain application logic. Compatibility depends on Safety Manager firmware and hardware configuration.
• Lifecycle Status: Active / Mature Safety System Component
  • Installed across many Honeywell Safety Manager systems.
  • Recommended spare strategy: maintain tested replacement modules for safety loops.
• Migration Strategy:
  Migration to newer Honeywell safety platforms may require safety validation, cabinet modifications, and application re-certification.

8. Field Engineer’s Tech Notes (Anti-Pitfall Guide)

1. Do not exceed the 550 mA channel limit.
   A valve solenoid may appear acceptable during commissioning but create thermal stress during continuous operation. Measure actual current draw before installation.
2. Do not replace an FC version with an FS version without environmental review.
   The conformal coating difference matters in humid or corrosive areas (the protection layer is part of the hardware selection decision).

9. Strict QA & Testing SOP

Step 1 — Incoming Inspection

• Verify Honeywell FC-SDO-0824 label.
• Record serial number and hardware revision.
• Confirm conformal coating condition.
• Inspect connectors and housing.

Step 2 — Electrical Inspection

• Check output terminals.
• Inspect for corrosion, contamination, or overheating.
• Verify connector pin condition.

Step 3 — Rack Recognition Test

• Install in compatible Safety Manager test chassis.
• Confirm module identification.
• Verify diagnostic indicators.

Step 4 — Functional Output Test

• Apply 24 VDC supply.
• Test all eight output channels.
• Verify load switching.
• Confirm short-circuit protection response.

Step 5 — Safety Verification

• Test de-energization capability.
• Verify diagnostic reporting.
• Confirm output status feedback.

Step 6 — Packaging Control

• Use ESD protective packaging.
• Protect connector surfaces.
• Add moisture barrier packaging for international transport.

Test videos are available for verified inspection records.

10. Buyer’s FAQ (Dynamic Q&A)

Q: Can the Honeywell FC-SDO-0824 be hot-swapped?

A: Do not assume live replacement is allowed. Safety output modules are connected to protective functions, so replacement must follow the approved Safety Manager maintenance procedure.

Q: How can I confirm this is an original FC-SDO-0824?

A: Check the Honeywell identification label, conformal coating condition, revision marking, serial information, and functional test documentation.

Q: Does the FC-SDO-0824 include safety firmware?

A: No. The module provides hardware output functions. Safety application logic and configuration remain within the Safety Manager system.

Q: What warranty information should be confirmed before purchase?

A: Confirm warranty duration, output channel testing coverage, inspection records, and whether the unit is New Original, New Surplus, or refurbished. For SIS output hardware, documented functional testing is important before installation.
