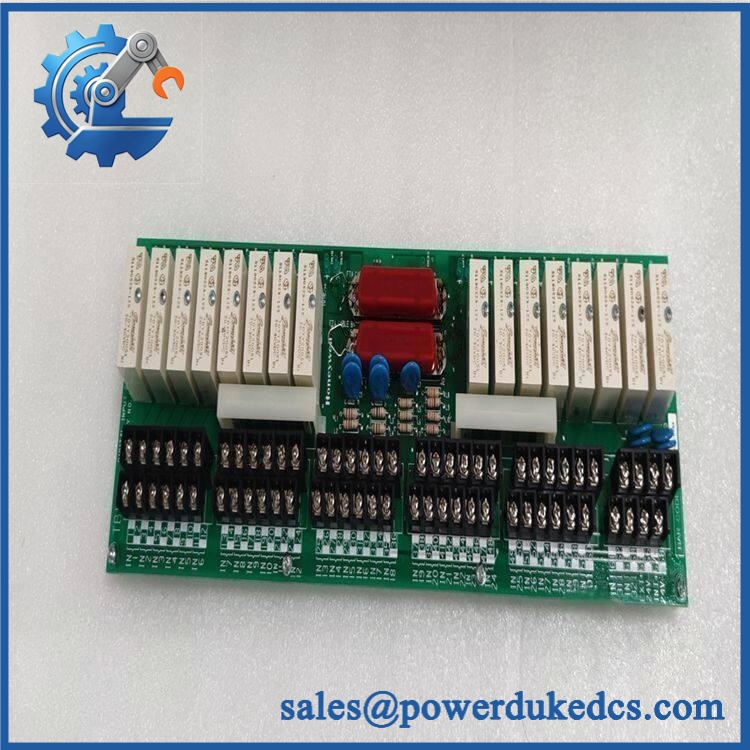

HONEYWELL MC-TAIH22 | OEM TPS DCS Replacement Hardware

Description

• Model: HONEYWELL MC-TAIH22
• Order Number: 1204170-250
• Series: Honeywell TotalPlant Solution (TPS) DCS
• Part Type: High-Level Analog Input Module
• Core Function: Acquires industrial analog process signals from field transmitters and transfers measurement data into the Honeywell TPS control system.
• Key Specifications:
  • 16-channel high-level analog input capability.
  • Supports common process signals including 4–20 mA and voltage inputs.
  • Designed for Honeywell TPS distributed control environments.
  • Used for pressure, temperature, flow, and level measurement loops.
  • Industrial DCS spare module for legacy process control systems.

Product Introduction

Within a Honeywell TotalPlant Solution (TPS) cabinet, the MC-TAIH22 High-Level Analog Input Module serves as the measurement gateway between field instruments and the DCS processing layer. A failed analog input module can remove visibility from multiple process loops at once, leaving operators without reliable values for pressure, flow, temperature, or level. In field deployments, technicians normally verify transmitter output, loop wiring, termination points, and module diagnostics before replacing the hardware (many AI faults originate outside the module).

The MC-TAIH22 is designed for high-level analog signal acquisition in Honeywell TPS systems. It provides multiple input channels for connecting industrial transmitters and instrumentation signals, supporting process monitoring applications where accurate analog conversion is required. This module is typically maintained as a controlled spare in older TPS installations where a complete control system migration is not practical.

Core Technical Specifications

HONEYWELL MC-TAIH22

Application Scenarios & Pain Points

At refinery process units, the MC-TAIH22 collects transmitter signals from critical loops where inaccurate measurement can affect operating decisions.

For chemical production systems running continuous batches, reliable analog acquisition supports monitoring of reactor temperature, pressure, and material flow.

During TPS maintenance activities, maintaining tested analog input modules reduces downtime when aging I/O hardware fails unexpectedly.

Inside utility plants, the module supports monitoring of pumps, compressors, and auxiliary equipment instrumentation.

Without a functioning analog input module, field instruments may continue generating signals while the DCS loses the ability to display or control based on those measurements.

Common Error Codes & Diagnostic Symptoms

Symptom/Code: AI Channel Bad Quality / Invalid Process Value
→ Diagnosis: Possible input circuit failure, incorrect transmitter wiring, signal range mismatch, or damaged input electronics.
→ Action: Verify field signal and replace the MC- module if internal failure is confirmed.

Symptom/Code: Multiple Channels Showing Fault Status
→ Diagnosis: Possible module power issue, rack communication problem, or internal hardware failure.
→ Action: Check rack condition and replace the analog input module.

Symptom/Code: Signal Value Frozen or Unstable
→ Diagnosis: Possible A/D conversion issue, poor field grounding, shielding problems, or degraded module electronics.
→ Action: Test loop quality and replace module if instability remains.

Cross-Reference & Lifecycle Migration

• Compatible Platform:
  • Honeywell TotalPlant Solution (TPS) DCS.
• Related Hardware:
  • Honeywell TPS analog input module family.
  • Honeywell process I/O cards with similar high-level analog input functions.
• Replacement Considerations:
  • Confirm exact order number: 1204170-250.
  • Verify TPS cabinet type.
  • Confirm field termination assembly compatibility.
  • Check channel configuration database.
  • Verify engineering documentation before replacement.
• Firmware Requirement:
  The MC- is an I/O hardware module and normally does not contain user application logic. System configuration and channel parameters are maintained within the TPS engineering database.
• Lifecycle Status: Legacy / Controlled Spare.
  • Maintain tested inventory for operating TPS installations.
  • Preserve cabinet drawings and loop documentation with spare modules.

Field Engineer’s Tech Notes (Anti-Pitfall Guide)

1. Do not replace the module before checking the transmitter loop.
   A failed transmitter, broken shield, or incorrect polarity can create the same symptoms as a defective AI card.
2. Record every channel assignment before removal.
   TPS analog modules may support many process loops, and incorrect channel mapping can create misleading readings after installation.
3. Protect the card edge connector during storage.
   Dust and oxidation on contacts can cause intermittent communication faults after years on the shelf.

Strict QA & Testing SOP

Step 1 — Incoming Inspection

• Verify Honeywell identification label.
• Confirm model MC- and order number 1204170-250.
• Record serial number and hardware revision.
• Photograph module condition.

Step 2 — Physical Examination

• Inspect PCB housing.
• Check terminal connections.
• Verify rack connector condition.
• Inspect for corrosion or mechanical damage.

Step 3 — Electrical Inspection

• Apply compatible TPS rack power.
• Verify startup indication.
• Check supply stability.
• Measure operating current.

Step 4 — Functional Testing

• Install in compatible Honeywell TPS test environment.
• Apply simulated analog signals.
• Verify channel conversion accuracy.
• Confirm DCS communication.

Step 5 — Packaging Control

• Place module inside ESD shielding packaging.
• Protect connectors.
• Include inspection records.

Test videos are available for verification procedures when required.

Buyer’s FAQ (Dynamic Q&A)

Q: Can the Honeywell MC- be replaced while the TPS system is energized?

A: Follow the approved Honeywell TPS maintenance procedure. Replacement requirements depend on the installed cabinet design and site safety rules.

Q: How can I verify an original Honeywell 1204170-250 module?

A: Check the Honeywell label, complete part number, hardware revision, connector condition, and functional test documentation.

Q: Does the MC- contain TPS control logic?

A: No. The module performs analog signal acquisition only. Control strategies, alarms, and process logic remain in the TPS controller and database.

Q: What information is needed before ordering this spare?

A: Confirm TPS system type, cabinet location, channel requirements, termination compatibility, module revision, testing status, and warranty conditions.

Procurement Note: The Honeywell MC- (1204170-250) should be stored as a controlled TPS DCS spare. Keep loop drawings, channel assignments, cabinet references, and inspection records with the module to reduce recovery time during process instrumentation failures.
