- ICS Triplex T9802 | OEM Safety System Interface Part
Unboxing & Physical Snapshot
- Model & Brand: ICS Triplex T9802 Digital Input Termination Assembly. This unit is part of the AADvance safety controller platform and provides a dual termination interface for 16 isolated digital input channels, supporting dual redundant arrangements of T9401/T9402 digital input modules.
- Approximate Physical Dimensions (W × H × D): Approximately 132 × 42 × 84 mm (5.2 × 1.65 × 3.3 in.) based on the AADvance termination assembly format.
- Estimated Shipping Weight: Approximately 0.14–0.3 kg (0.3–0.7 lb) including ESD shielding, terminal protection, and transport packaging.
- What’s in the Box:
- ICS Triplex T9802 Digital Input Termination Assembly
- Terminal interface assembly
- Fuse protection components (installed)
- Mounting accessories when supplied
- Anti-static (ESD) shielding bag
- Protective carton inserts
- Documentation when available
Product Introduction
The ICS Triplex T9802 mounts into the AADvance T9300 I/O base architecture, providing the physical connection point between field wiring and dual digital input modules. Correct installation depends on matching the termination assembly with the intended module arrangement. Confirm wiring drawings before termination. The terminal blocks, fuse holders, and connector alignment must be checked carefully (which is critical during SIL-rated maintenance activities).
This termination assembly supports dual-channel isolated digital input configurations for safety applications. The T9802 is paired with two T9401/T9402 input modules in redundant architectures, providing isolation between field circuits and controller electronics. Inspect the screw terminals, fuse condition, mounting clips, and enclosure surface before returning a stored spare to service.
Core Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ICS Triplex / Rockwell Automation |
| Model Number | T9802 |
| Product Type | Digital Input Termination Assembly |
| System Platform | AADvance Safety Controller |
| Channel Capacity | 16 digital input channels |
| Configuration | Dual isolated input termination |
| Compatible Input Modules | 2 × T9401 or T9402 Digital Input Modules |
| Input Voltage | 24 VDC nominal |
| Input Range | 18–32 VDC |
| Channel Isolation | ±1.5 kVDC maximum withstand for 1 minute |
| Input Channel Fuse | 50 mA, 125 V Type T fuse |
| Channel Load | 5.125 kΩ ±0.2% |
| Measurement Resolution | 5 mV, 13-bit |
| Maximum Field Loop Dissipation | 0.2 W per field loop |
| Wiring Capacity | Maximum 1.31 mm² (16 AWG) |
| Mounting Method | AADvance T9300 base unit |
| Protection Rating | IP20 |
| Power Consumption | Approx. 6.5 VA system requirement |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -25°C to +70°C |
| Relative Humidity | 10–95% RH, non-condensing |
| Dimensions | Approx. 132 × 42 × 84 mm |
| Weight | Approx. 140 g |

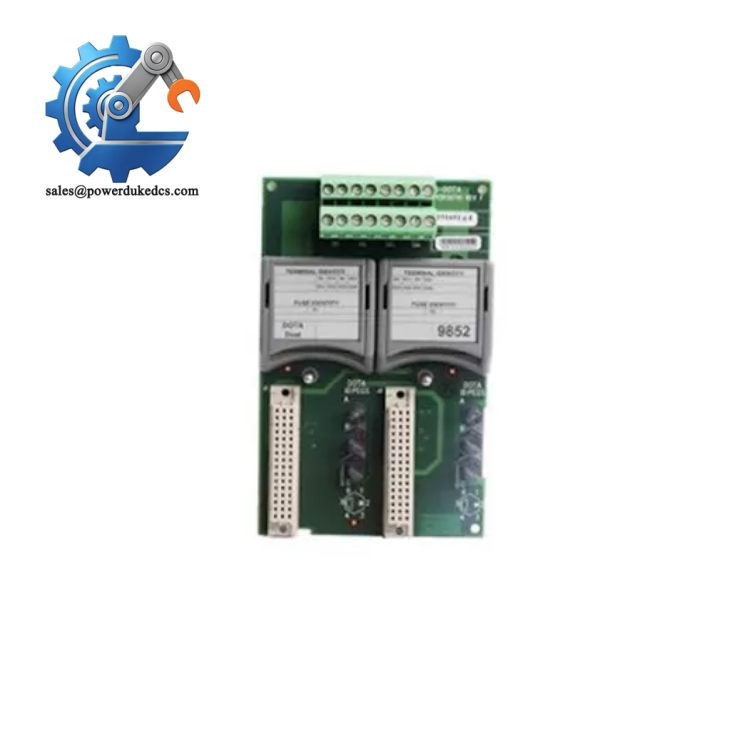

ICS Triplex T9802
Global Compliance & Industry Certifications
Expected regulatory approvals and compliance considerations for the ICS Triplex include:
- CE Mark compliance for applicable AADvance system installations
- UL/cUL Listed status where applicable to the complete controller assembly
- IEC 61508 SIL 3 capability when installed within a validated AADvance safety architecture
- ATEX/IECEx suitability only when integrated into an approved hazardous-area control system
- Marine approvals such as DNV GL only for specifically certified equipment packages
- Industrial EMC compliance according to the final cabinet installation
The SIL 3 capability is important because termination assemblies form part of the safety signal path. Incorrect field wiring, improper fuse selection, or unsuitable replacement hardware can affect the validated safety function.
Verify specific lot certifications with OEM.
Long-Term Storage & Asset Preservation Guide
Keep the inside the original anti-static (ESD) shielding bag during storage. The terminal contacts, fuse holders, and connector surfaces should not be exposed to warehouse dust or humidity.
Maintain storage humidity below 60% RH to reduce oxidation risk on conductive surfaces. Avoid storage near chemical cabinets, battery charging stations, or areas with corrosive vapors.
Before installation, inspect the terminal screws, fuse holders, PCB surface, and mounting points. Record the part number, hardware revision, and storage inspection date in the spare inventory system.
Physical Installation Prerequisites
- Install only within the approved AADvance T9300 I/O base system.
- Confirm compatibility with T9401/T9402 digital input modules.
- Verify field wiring polarity and channel assignment before energization.
- Ensure cabinet protective earth grounding is correctly bonded.
- Maintain cabinet ventilation around the I/O assembly.
- Leave at least 50 mm clearance above and below rack ventilation paths where practical.
- Confirm fuse ratings match the approved application design.
- Secure terminal connections according to site maintenance procedures.
Buyer’s FAQ (Logistics & Compliance Focus)
Q: What HS Tariff Code is commonly used for the ICS Triplex ?
A: Industrial termination assemblies are commonly evaluated under HS 8537 classifications for electrical control equipment. The final tariff code depends on customs interpretation and the declared function of the equipment.
Q: Does Country of Origin affect importing the ?
A: Yes. COO affects customs clearance, duty assessment, supplier records, and safety-system traceability. Confirm the origin from the product label, commercial invoice, and supplier documentation before shipment.
Q: Should shipping insurance be included for the ?
A: Recommended. Although the assembly is compact, damaged terminal blocks, fuse holders, or mounting features can prevent installation. Use ESD packaging, impact protection, and receiving inspection records.
Q: Does the include the latest firmware pre-loaded?
A: No. The is a termination assembly and does not contain application firmware. Firmware resides in the compatible AADvance processor and I/O modules. Verify the complete hardware configuration before commissioning.
