ICS Triplex TC-301-02-2M0 | Traceable TMR Communication Spare

1. ICS Triplex TC-301-02-2M0 | Traceable TMR Communication Spare

Unboxing & Physical Snapshot

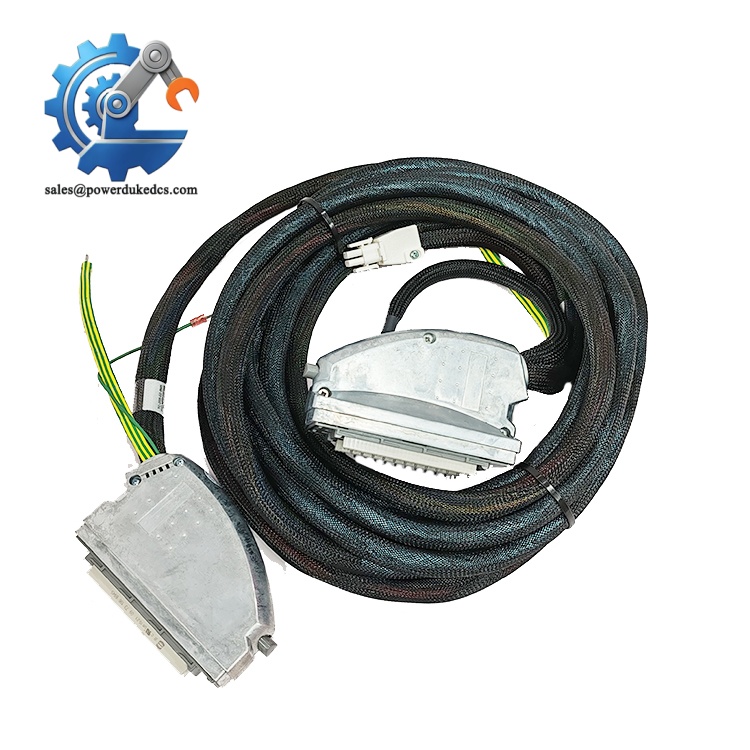

• Model & Brand: ICS Triplex TC-301-02-2M0
• Product Type: Trusted TMR Local Expansion Cable Assembly
• Application: Communication cable assembly for the ICS Triplex Trusted™ TMR safety system. The TC-301-02 series is used as a Local Expansion Cable connecting the Expander Interface Adapter (T8312) to the Expander Processor (T8310). The -02 suffix indicates a low smoke zero halogen (LSZH), flame-retardant cable construction, and 2M0 indicates a 2.0 m cable length.
• Approximate Physical Dimensions:
  • Cable Length: 2.0 m
  • Cable Diameter: approximately 6–10 mm (dependent on construction)
  • Connector Assembly Length: varies by connector revision
• Estimated Shipping Weight: Approximately 0.4–0.6 kg including protective packaging.
• What’s in the Box:
  • ICS Triplex TC-301-02-2M0 cable assembly
  • Factory-installed connectors
  • Connector protective covers (when supplied)
  • Cable identification label
  • Anti-static protective packaging
  • Documentation when included with controlled inventory

Product Introduction

The TC-301-02-2M0 provides the electrical communication path between Trusted expansion hardware, allowing additional chassis configurations while maintaining the Trusted TMR architecture. Installed between the Expander Interface Adapter and Expander Processor, the cable carries the local expansion connection required for distributed Trusted chassis arrangements.

This cable is a safety-system infrastructure item, not a general-purpose patch cable. Inspect the LSZH outer jacket, connector locking features, strain relief sections, and identification markings before installation. A cable can pass a basic continuity check and still fail later due to mechanical damage, poor routing, or excessive bending stress (especially in cabinets exposed to vibration).

Core Technical Specifications

ICS Triplex TC-301-02-2M0

Global Compliance & Industry Certifications

Expected compliance considerations for the ICS Triplex TC-301-02-2M0 include:

• CE Mark consideration when installed as part of an approved Trusted safety system.
• IEC 60332-3 Category A flame-retardant performance associated with the LSZH cable construction.
• UL/cUL cable approval consideration applies to specific cable variants; the -03 cable suffix is typically associated with UL-certified versions.
• IEC 61508 relevance through integration within the Trusted TMR safety architecture.
• ATEX/IECEx consideration when the complete safety system is installed in hazardous areas.
• Marine approvals such as DNV GL where the complete automation system requires offshore certification.

The LSZH construction is important in enclosed control rooms because it reduces smoke and corrosive gas generation during a fire event, protecting personnel and sensitive electronics.

Verify specific lot certifications with OEM.

Long-Term Storage & Asset Preservation Guide

• Keep the TC-301-02-2M0 in its original protective packaging. Cover connector ends to prevent dust contamination and oxidation of contact surfaces.
• Maintain warehouse humidity below 60% RH. Moisture exposure can degrade connector plating and accelerate corrosion on metallic components.
• Store the cable in a controlled coil radius. Avoid sharp bends, crushing pressure, or heavy items placed on the cable jacket.

Check the cable jacket before installation. Small cuts or compression marks may become hidden reliability issues later.

Physical Installation Prerequisites

• Install only within the approved ICS Triplex Trusted expansion architecture.
• Confirm the cable connection path:
  • T8312 Expander Interface Adapter
  • T8310 Expander Processor
• Maintain the recommended bend radius during cabinet routing.
• Avoid routing parallel with high-voltage power cables or high-noise equipment.
• Secure the cable using appropriate cabinet supports without crushing the LSZH jacket.
• Leave approximately 50 mm clearance around rack assemblies where required for cabinet airflow.
• Verify connector engagement and locking hardware before system startup.
• Maintain grounding practices according to the installed Trusted cabinet design.

Buyer’s FAQ (Logistics & Compliance Focus)

Q: What HS Tariff Code is commonly reviewed for the ICS Triplex TC-301-02-2M0?
A: Communication cable assemblies are commonly evaluated under HS 8544 categories. Final classification depends on conductor design, connector type, insulation material, and destination-country customs requirements.

Q: Why does Country of Origin (COO) documentation matter for this cable assembly?
A: COO records support customs clearance, supplier qualification, and safety system traceability. Ensure the cable label, invoice, packing list, and receiving records contain matching identification information.

Q: Is shipping insurance recommended for the TC-301-02-2M0?
A: Yes. The cable has a lower physical value than active modules, but incorrect handling can damage connectors or cable insulation. Use protective packaging and declared-value freight coverage.

Q: Does the TC-301-02-2M0 include firmware pre-loaded?
A: No. This is a passive communication cable assembly. It contains no processor, memory, or firmware. Firmware management applies to connected Trusted controller modules such as the T8310 or related interface hardware.
