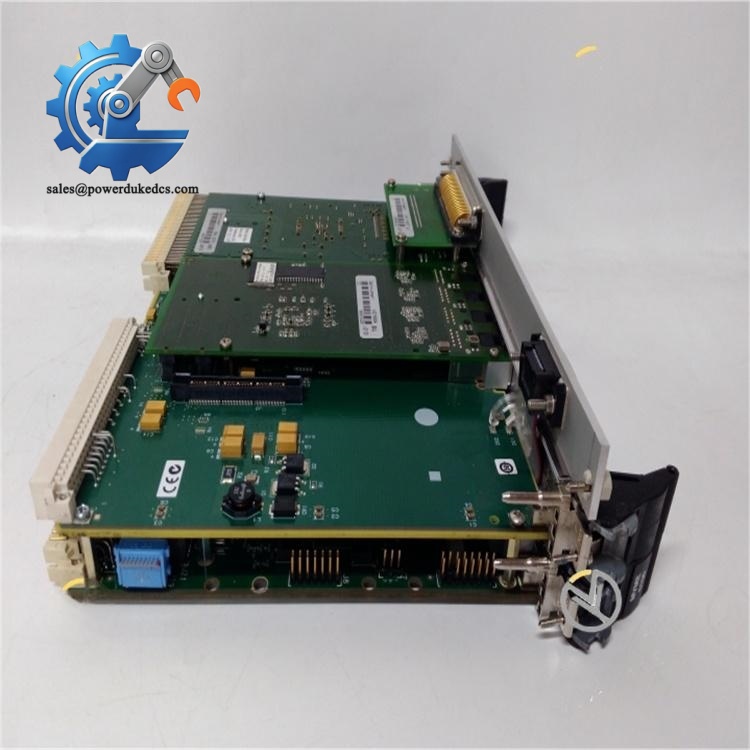

1. Motorola MVME6100-0163 | ECC Memory VME Module

2. Unboxing & Physical Snapshot

• Brand & Model: Motorola MVME6100-0163
• Product Family: Motorola MVME6100 Series VME Single Board Computer.
• Product Type: 6U VME64x single-board computer designed for embedded industrial computing, control platforms, and long-life automation systems.
• Primary Function: PowerPC-based processing module providing VMEbus control, memory resources, Ethernet communication, and PMC expansion capability.
• Processor Architecture: Motorola MPC7457 PowerPC processor.
• System Controller: Marvell Discovery MV64360 system controller.
• Approximate Physical Dimensions: 233 × 160 × 20 mm (9.2 × 6.3 × 0.8 in), 6U VME, 4HP width.
• Estimated Shipping Weight: Approximately 1.0–1.5 kg (2.2–3.3 lb) including ESD shielding and transport packaging.
• Mounting Style: Single-slot 6U VME64x rack installation using VME backplane connectors.
• Board Construction:
  • Multi-layer PCB assembly
  • Aluminum front panel
  • VME P1/P2/P0 connectors
  • Processor heatsink assembly
  • PMC expansion interfaces
• Memory Configuration:
  • Up to 1 GB ECC-protected DDR SDRAM supported
  • Flash memory up to 128 MB depending on configuration
• Communication Interfaces:
  • Dual Gigabit Ethernet
  • Serial communication interfaces
  • VMEbus interface
  • PMC/PCI-X expansion support
• Cooling Hardware:
  • Processor heatsink
  • Forced rack airflow requirement
  • Chassis cooling dependency (critical for high-temperature operation)
• What’s in the Box:
  • Motorola MVME6100-0163 CPU board
  • Anti-static ESD shielding bag
  • Protective foam packaging
  • Documentation when supplied

3. Product Introduction

The Motorola MVME6100-0163 mounts directly into a 6U VME64x chassis as the primary computing resource for embedded industrial systems. The architecture combines an MPC7457 PowerPC processor, ECC memory support, VME bridge technology, dual Gigabit Ethernet, and PMC expansion locations for demanding rack-based applications. (This design approach is common in systems where replacing the entire computing platform would require extensive software validation.)

Handle this module as a controlled spare asset. Inspect the VME connector fingers, front-panel ejector handles, processor heatsink, and battery-backed components before installation. Check the date code. Long-stored VME boards frequently fail because of connector oxidation, battery aging, or environmental exposure rather than normal processing load.

4. Core Technical Specifications

Parameter	Value
Manufacturer	Motorola
Model Number	MVME6100-0163
Product Type	VME64x Single Board Computer
Form Factor	6U VME, 4HP width
Processor	MPC7457 PowerPC
System Controller	Marvell MV64360
Memory Type	ECC DDR SDRAM
Maximum Memory	Up to 1 GB
Flash Memory	Up to 128 MB
VME Bridge	Tsi148 VME Bridge ASIC
VME Interface	VME64x / 2eSST capable
Ethernet Interfaces	Dual Gigabit Ethernet
PMC Expansion	Two PCI/PCI-X capable PMC sites
Front I/O	Supported through PMC and rear I/O options
Operating Voltage	+5 VDC, +12 VDC, -12 VDC
Typical Power Consumption	Approximately 42 W at +5 VDC
Maximum Power Consumption	Approximately 51 W at +5 VDC
Cooling Requirement	Forced air cooling
Operating Temperature	0°C to +55°C
Storage Temperature	-40°C to +85°C
Humidity Range	5% to 90% RH non-condensing

Motorola MVME6100-0163

5. Global Compliance & Industry Certifications

Expected regulatory considerations for the Motorola MVME6100-0163 include:

• CE Mark — applicable when installed inside a compliant VME chassis meeting EMC and safety requirements.
• UL/cUL Recognition — normally evaluated at the complete equipment level rather than the individual processor board.
• RoHS Compliance — depends on manufacturing revision and production date.
• IEC Industrial Equipment Requirements — relevant when integrated into industrial automation, test, or control platforms.
• ATEX/IECEx — the board itself does not automatically qualify for hazardous locations; certification requires evaluation of the complete enclosure and system design.
• Marine approvals (DNV GL, ABS, or LR) — applicable only when incorporated into a certified marine computing system.

For high-speed embedded computing systems, EMC control is important because processor clocks, Ethernet interfaces, and VME signaling can introduce interference if cabinet grounding and shielding are inadequate.

Verify specific lot certifications with OEM.

6. Long-Term Storage & Asset Preservation Guide

• Keep the MVME6100-0163 inside the original anti-static (ESD) shielding bag during storage. The VME connector contacts and processor circuitry require protection from electrostatic discharge.
• Maintain warehouse humidity below 60% RH. Moisture exposure can accelerate oxidation on connector surfaces and reduce insertion reliability.
• Inspect the battery-backed clock area before deployment. Replace aging batteries when required to prevent electrolyte leakage near PCB traces.
• Store the board horizontally with support under the PCB. Avoid mechanical stress on the front panel, ejector handles, and VME connector edge.
• Record hardware revision, serial number, firmware image, and inspection history in the spare asset database.

7. Physical Installation Prerequisites

• Install the MVME6100-0163 only in a compatible 6U VME64x chassis.
• Confirm VME slot assignment before applying power.
• Inspect P1/P2/P0 connectors for contamination, corrosion, or bent contacts.
• Verify chassis protective earth grounding.
• Provide forced airflow through the rack. Approximately 400 LFM airflow is recommended for operation near the upper temperature range.
• Leave at least 50 mm clearance above and below the rack assembly where cabinet airflow paths require open space.
• Confirm cooling fan operation before extended operation.
• Avoid touching gold-plated connector surfaces directly.
• Verify firmware and application compatibility before commissioning.

8. Buyer’s FAQ (Logistics & Compliance Focus)

Q: What HS Tariff Code is commonly used for the Motorola MVME6100-0163?

A: VME single-board computers are commonly evaluated under HS classifications related to electronic computing assemblies, often within 8471 categories. Final classification depends on the importing country’s customs interpretation and declared product function.

Q: Does Country of Origin affect import clearance for the MVME6100-0163?

A: Yes. Country of Origin (COO) information supports customs documentation, supplier qualification, warranty tracking, and controlled asset records. Maintain the board label, serial number, and commercial documents together.

Q: Should shipping insurance be included for this VME processor board?

A: Recommended. The module contains high-value processor electronics, ECC memory devices, and precision VME connectors. Shock, moisture, or ESD exposure during transport may create failures that appear only during startup testing.

Q: Does the MVME6100-0163 include the latest firmware pre-loaded?

A: The board includes factory boot firmware support, but the operational software image depends on the target VME system configuration. Verify MOTLoad version, application image, and hardware compatibility before installation.
