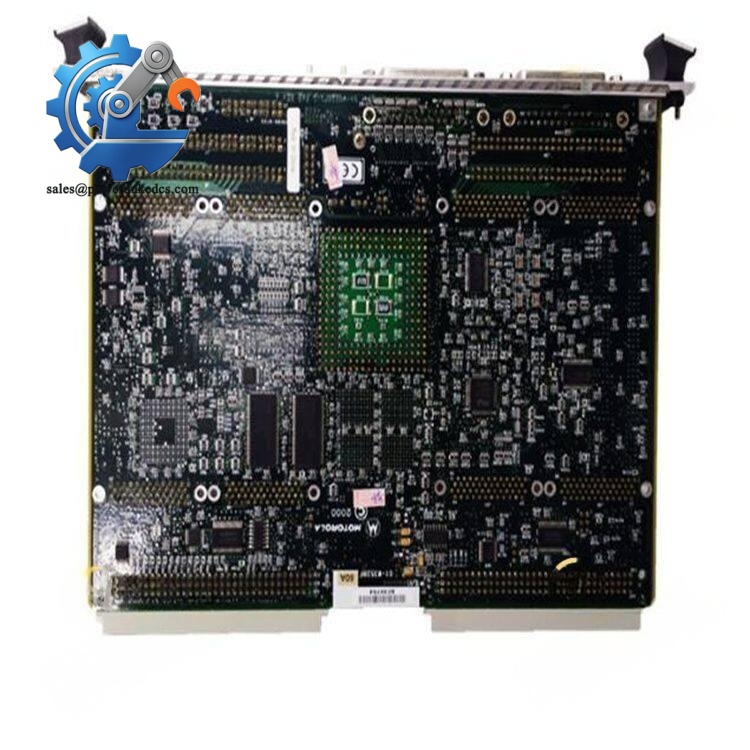

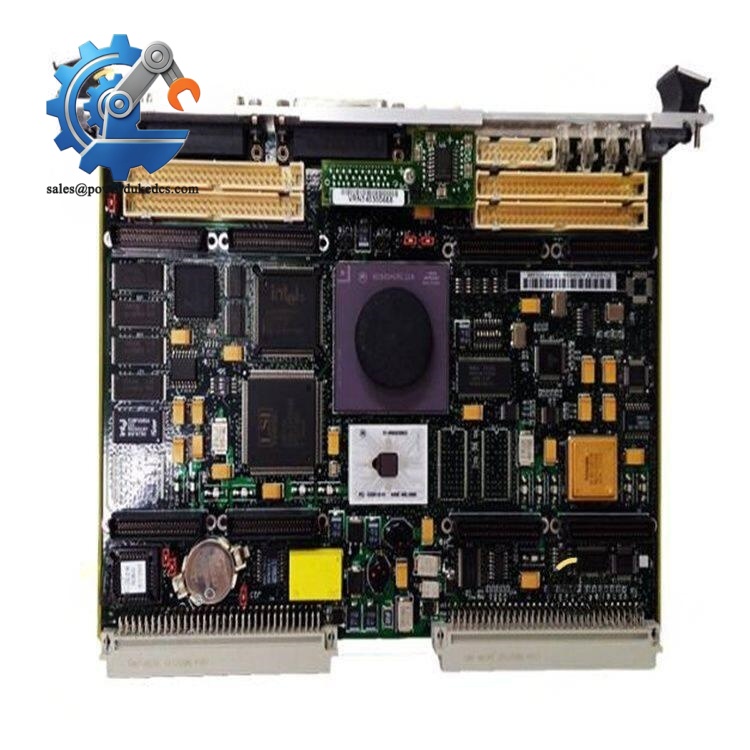

Motorola MVME162-010A | Authentic Embedded Controller

Description

1. Motorola MVME162-010A | Authentic Embedded Controller

Unboxing & Physical Snapshot

• Brand & Model: Motorola MVME162-010A
• Product Type: 6U VMEbus single-board computer (SBC) designed for industrial computing, embedded control, and legacy automation systems. The MVME162 family uses Motorola 68040/MC68LC040 processor architecture with VMEbus interfaces and industrial I/O functions.
• Physical Dimensions (Approximate W × H × D):
  • Board format: 6U VME single-board computer
  • PCB only: approximately 233.35 × 160 × 16.77 mm
  • With connectors/front panel: approximately 261.85 × 188 × 20.32 mm
• Estimated Shipping Weight: Approximately 1.0–1.5 kg including anti-static packaging, protective foam, and export carton.
• What’s in the Box:
  • Motorola MVME162-010A VME controller board
  • Front panel assembly
  • VME backplane connectors
  • Memory configuration as installed
  • ESD shielding bag
  • Protective packaging
  • Documentation when available

Product Introduction

Structure B — Architecture Hook

The Motorola MVME162-010A mounts directly into a standard VMEbus chassis as an embedded controller module, forming the processing core of a larger industrial computer architecture. The board communicates through the VME backplane while providing local processing, memory, serial interfaces, and optional peripheral connections required by the host system.

This hardware is commonly found in long-life industrial installations where replacement compatibility matters more than age. Verify the exact CPU variant, memory size, PROM/Flash configuration, and installed mezzanine options before deployment. Inspect the VME edge connectors, front panel indicators, and battery-backed components carefully (—especially on boards that have remained stored for many years).

Core Technical Specifications

Motorola MVME162-010A

Specifications should be verified against the installed board revision because configurations were produced with different memory, I/O, and VME options.

? Global Compliance & Industry Certifications

Expected regulatory approvals and compliance considerations for the Motorola -010A include:

• CE Mark — may apply depending on the complete equipment enclosure and system certification.
• UL/cUL Recognition — may apply when integrated into approved industrial computer systems.
• FCC Compliance — relevant for electromagnetic emissions requirements of computing equipment.
• RoHS Compliance — dependent on manufacturing date and original production revision.
• IEC EMC Compliance — applicable when installed in industrial environments with sensitive control electronics.
• ATEX/IECEx Compatibility — not a standalone hazardous-area certified device; applicability depends on the complete enclosure and system design.
• Marine Approvals (DNV GL) — only applicable when included in certified marine automation equipment.

EMC compliance is important for VME computer boards because processor clocks, communication interfaces, and backplane signals can generate electrical noise that affects nearby control electronics.

Verify specific lot certifications with OEM.

? Long-Term Storage & Asset Preservation Guide

Store trola inside the original anti-static (ESD) shielding bag. The VME connector fingers and exposed PCB areas should never be left uncovered on warehouse shelves.

Inspect the battery-backed components before installation. The onboard battery system supporting SRAM and clock functions can degrade over decades; leakage from aging batteries may damage nearby PCB traces.

Maintain storage humidity below 60% RH. Moisture exposure can oxidize connector surfaces and reduce reliability when the board is returned to service after extended storage.

Before installation, perform a controlled inspection:

• Check electrolytic capacitors for swelling or leakage.
• Verify memory modules and socketed devices are seated correctly.
• Inspect the VME connector pins and front panel hardware.

Motorola MVME162-010A

Physical Installation Prerequisites

• Install only into a compatible 6U VME chassis.
• Confirm VME backplane slot requirements before insertion.
• Provide forced-air cooling through the chassis airflow system.
• Maintain adequate cabinet clearance around the chassis ventilation openings.
• Verify +5 VDC supply capacity before installation.
• Confirm chassis protective grounding continuity.
• Avoid touching connector contacts during handling.
• Secure the front panel screws before system power-up.

Do not insert or remove the board while the chassis is energized unless the VME system specifically supports hot-swap operation.

Buyer’s FAQ (Logistics & Compliance Focus)

Q1. What HS Tariff Code is commonly used for trola ?

A: The final Harmonized System classification depends on the importing country’s customs interpretation and the declared function of the equipment. Embedded computer boards are commonly reviewed under electronic processing equipment or control board categories. Confirm the final HS code with your customs broker before shipment.

Q2. Does Country of Orfect import documentation?

A: Yes. COO information can affect customs clearance, duty calculations, and customer audit records. Maintain the board label, serial number, supplier documentation, and historical asset records.

Q3. Is shipping insurance recommended for this VME controller board?

A: Recommended. The board contains exposed connectors, socketed components, and aging electronic assemblies that can be damaged by impact, moisture, or electrostatic discharge. Use ESD protection and replacement-value insurance.

Q the include the latest firmware pre-loaded?

A: Firmware depends on the installed PROM, Flash contents, and previous system configuration. The board may contain monitor software such as 162Bug, but verify the actual firmware revision before integrating it into an operational system.
