HIMA B5233-2 997205233 | Redundant Safety System Rack

Description

• Brand: HIMA
• Full Model Number: B5233-2 / 997205233 / H51q-HRS
• System/Series Family: HIQuad H51q-HRS modular safety system
• Core Function: Complete redundant central rack assembly for the H51q-HRS safety controller architecture
• Top 3 Hardcore Specs: 19-inch 5U K1412A rack; 3 × F7126 24 V/5 V 10 A power modules; 2 × F8650 central processing modules
• Stock Status: Verify current New Surplus, Factory Sealed, or Fully Tested Refurbished configuration before order

Module 3: Technical Product Introduction

A failure in the central rack of a legacy H51q installation can affect power distribution, central processing, bus redundancy, and the physical I/O backplane at the same time. B5233-2 / 997205233 is the HIMA H51q-HRS assembly kit, rather than a standalone CPU card. HIMA’s revision list identifies B5233-1/-2 as modular H51q-HS/HRS safety-related assemblies, while the detailed assembly documentation identifies B5233-2 specifically with H51q-HRS. The documented assembly uses a K1412A 19-inch, 5U central rack with integrated cable tray and associated rear-side power, fan, and watchdog-distribution hardware.

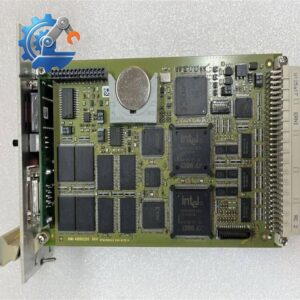

The B5233-2 configuration is built around redundancy at several levels. The published assembly data lists three F7126 power-supply modules, each rated 24 V/5 V and 10 A, one F7131 supply-monitoring module, and two F8650 central modules. The same documentation identifies separate central and bus sections for the H51q-HRS architecture, with B5233-2 corresponding to the redundant HRS configuration. HIMA’s official revision list places B5233-2 within the valid H41q/H51q safety-related assembly portfolio.

Module 4: Application Scenarios & Field Realities

• Inside legacy H51q-HRS SIS cabinets, functions as the central hardware assembly around which the redundant safety architecture is built. It is more than a chassis: the assembly integrates the rack, power modules, monitoring hardware, central processors, and associated bus hardware.
• For brownfield replacement after a rack-level fault, verify the complete configuration rather than ordering a generic H51q rack. The assembly documentation distinguishes B5233-1 for H51q-HS from for H51q-HRS, so the redundant-bus configuration must match the installed cabinet.
• When troubleshooting intermittent safety-controller resets, inspect the entire power path. Three F7126 modules, decoupling/fusing assemblies, fan monitoring, and supply monitoring are part of the documented arrangement; a fault in one supporting circuit can present as a processor or system-rack problem.
• For maintenance inventory planning, record and 997205233 as the assembly identity and keep the installed submodule identifiers with the stock record. The assembly is configuration-sensitive, so a physically similar H51q rack without the same rear-side hardware should not automatically be released as an equivalent.

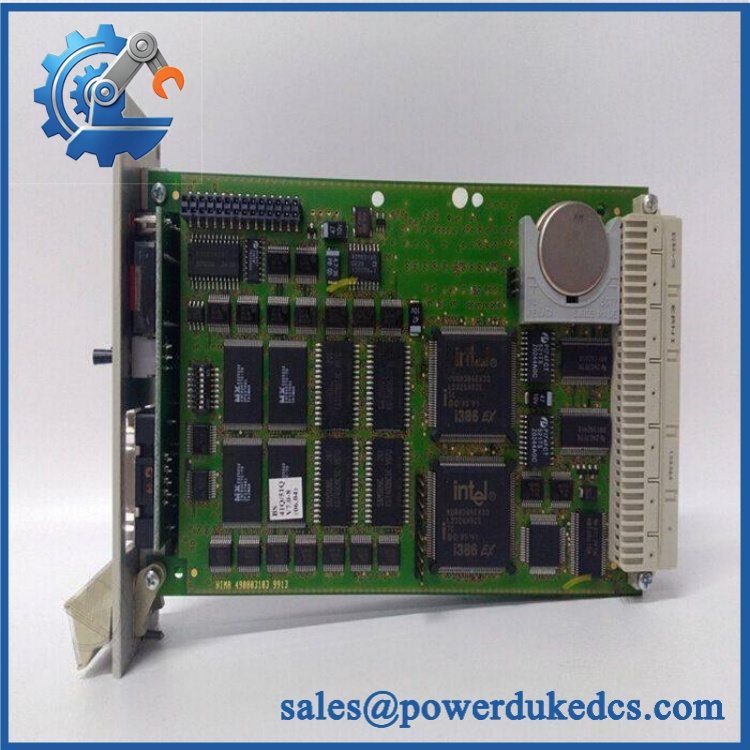

HIMA B5233-2 997205233

Module 5: Migration, Compatibility & Installation Traps

Replacement Matrix

Exact / 997205233 H51q-HRS assembly: Drop-in Replacement
When the replacement matches the installed architecture, K1412A rack, central modules, power arrangement, bus configuration, and rear-side assemblies, it can generally be treated as a direct hardware replacement. The approved cabinet documentation remains the final authority.

B5233-1 substituted for : Hardware Modification Required
HIMA’s own revision documentation differentiates B5233-1/-2 as H51q-HS and H51q-HRS system assemblies. is the HRS redundant configuration; B5233-1 should not be assumed interchangeable simply because the rack family is similar.

Different H51q central-rack configuration: Software Compatible / Hardware Verification Required
A replacement rack may physically fit while differing in central-module population, bus architecture, power arrangement, or rear-side termination. Verify the complete assembly BOM and application configuration before energization.

⚠️ Field Traps (Watch Out)

HS versus HRS confusion: The B5233 family designation covers both H51q-HS and H51q-HRS assemblies, but is specifically the H51q-HRS version. HIMA’s official revision list confirms this distinction.

Incomplete assembly problem: A listing identified only as “” may not include every component expected in the complete assembly. The documented kit includes the K1412A rack, three Z6011 decoupling/fusing modules, one Z6012 fan module, two Z6013 supply-distribution modules, three F7126 power modules, one F7131 monitoring module, and two F8650 central modules. Compare the delivered hardware with the cabinet BOM before installation.

Address versus manufacturer confusion: D-68782 is not a HIMA product model or electrical specification; it is associated with HIMA’s Brühl, Germany corporate address. HIMA’s official FM documentation identifies the manufacturer as HIMA Paul Hildebrandt GmbH + Co KG, D-68782 Brühl, Germany.

Module 6: Quality Assurance SOP

Pre-Shipment QA Protocol for HIMA 997205233

• Step 1 — Identity Verification: Confirm HIMA marking, designation, 997205233 order number, H51q-HRS identification, and all visible rack and submodule labels.
• Step 2 — Manufacturer Verification: Treat D-68782 as manufacturer-address information, not as a product number. Cross-check the physical HIMA nameplate and documentation against the purchase specification.
• Step 3 — OEM Anti-Counterfeit Visual Inspection: Inspect HIMA labels, rack markings, barcode information, module labels, connector hardware, PCB markings where accessible, and assembly workmanship for inconsistencies or unauthorized modification.
• Step 4 — Mechanical Inspection: Check the K1412A 19-inch, 5U rack, mounting flanges, integrated cable tray, card guides, rear connectors, and structural hardware for deformation, corrosion, cracks, or impact damage.
• Step 5 — Power-Module Verification: Identify the three expected F7126 modules and inspect their labels, connectors, cooling condition, and visible electrical components for abnormal discoloration or overheating.
• Step 6 — Power Monitoring Verification: Confirm the F7131 module is present where supplied as the complete assembly and inspect its connectors and monitoring interfaces.
• Step 7 — Fan and Auxiliary Circuit Check: Inspect the Z6012 fan module and associated fan-run/fuse monitoring circuitry, together with the Z6011 and Z6013 distribution assemblies.
• Step 8 — Central Module Verification: Confirm the expected pair of F8650 central modules, verify their identification and revision information, and inspect the connectors before controlled energization.
• Step 9 — Power-On and System Test: Under a suitable laboratory test arrangement, verify power-rail stability, expected module status indications, central-module startup behavior, monitoring response, and redundant-system diagnostics.
• Step 10 — Final QC Record: Record , 997205233, every installed submodule number, hardware/firmware revision where applicable, power-test results, fan-monitoring status, visual condition, test date, and final QC disposition.

Technical Verification Note: HIMA’s official documentation identifies as the H51q-HRS modular safety-system assembly, while the detailed assembly data specifies a K1412A 19-inch, 5U central rack, three F7126 power supplies, one F7131 monitoring module, two F8650 central modules, and the associated Z6011/Z6012/Z6013 rear-side assemblies. The supplied D-68782 designation corresponds to HIMA’s Brühl, Germany address rather than a separate model or electrical variant.
