HIMA Z7128 | H41q Safety System Cable Plug Assembly

Description

• Brand: HIMA
• Full Model Number: Z7128
• System/Series Family: HIMA safety-system cable and field-connection accessories
• One-Sentence Core Function: Pre-wired cable plug assembly providing field-side signal and transmitter-supply connections to compatible HIMA I/O hardware
• Top 3 Hardcore Specs: HIMA cable-plug assembly; available Z7128/6217/C5/ITI configuration; 5 m cable with transmitter supply
• Stock Status: Exact variant, cable length, and stock condition to be confirmed

Module 3: Technical Product Introduction

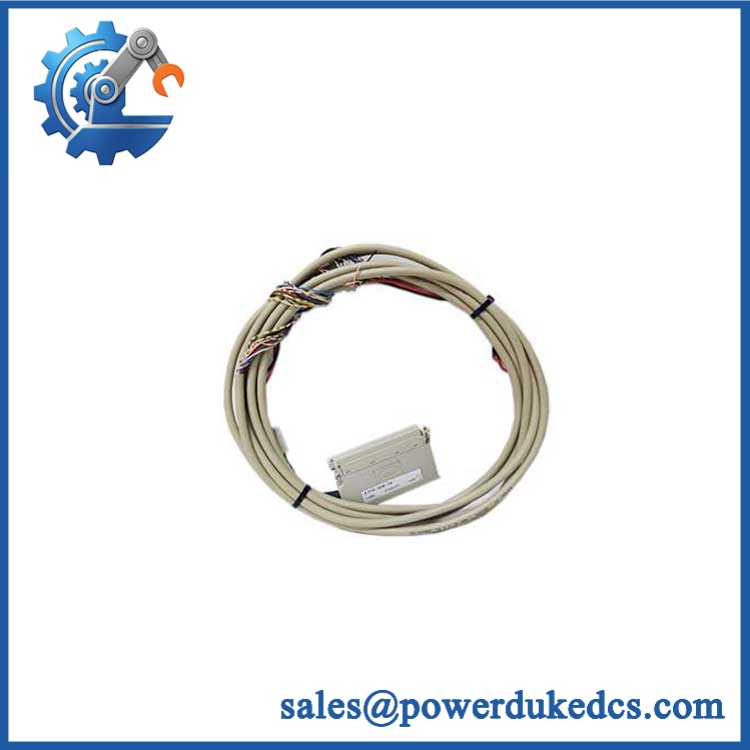

A damaged field cable assembly can keep an otherwise healthy HIMA I/O channel out of service. Z7128 is identified in HIMA spare-parts listings as a cable plug, while detailed listings associate the Z7128 reference with the Z7128/6217/C5/ITI pre-wired configuration. This assembly is supplied with a 5 m cable and transmitter supply, making it a field-connection component rather than a CPU, I/O processing card, or standalone controller.

For replacement work, the complete variant matters more than the short Z7128 designation. Published product references show the longer ordering string /6217/C5/ITI, and other suffix variants also exist, including versions with R2 designations. Because those suffixes define the associated cable and connection arrangement, the installed label should be checked before procurement. Do not assume that every item sold under the short reference has the same cable length or termination.

Module 4: Application Scenarios & Field Realities

• When an HIMA field I/O channel develops an intermittent open circuit, replacing the complete cable-plug assembly can be more practical than troubleshooting individual conductors inside a pre-terminated harness. Check the connector, cable jacket, strain relief, and terminal-side continuity before declaring the I/O module itself defective.
• For transmitter-connected analog channels, the documented C5/ITI configuration includes a 5 m cable and transmitter supply. That makes cable identification critical; a visually similar plug with a different termination or cable arrangement may not match the existing field device wiring.
• During cabinet maintenance on older HIMA installations, photograph the complete part-number label before removal. Listings distinguish the short reference from longer configured variants such as /6217/C5/ITI and /6217/R2, so procurement from the abbreviated number alone can introduce the wrong assembly.
• Where a shutdown schedule leaves little room for field termination work, a pre-wired cable plug reduces the amount of cabinet-side wiring that must be recreated. That advantage depends on receiving the correct factory-terminated variant, however—verify connector orientation, cable length, transmitter-supply arrangement, and the mating HIMA I/O hardware before installation.

HIMA Z7128

Module 5: Migration, Compatibility & Installation Traps

Replacement Matrix

Replacement Classification: Drop-in Replacement Only When the Complete Variant Matches

A should be considered a direct replacement only when the replacement carries the same complete configuration as the installed assembly. The documented /6217/C5/ITI version is a specific pre-wired cable-plug arrangement, while other -derived variants are also documented. No software recompile is normally associated with replacing a passive cable assembly, but electrical and mechanical compatibility must be confirmed before energization.

⚠️ Field Traps — Watch Out

1. Short-part-number ambiguity: Do not order from “” alone when the existing nameplate contains a longer configuration code. The difference between , /6217/C5/ITI, and /6217/C5/ITI/R2 is material for field replacement.

2. Cable and transmitter-supply mismatch: A replacement with the wrong cable length or wiring arrangement can create an installation problem even though the plug body appears identical. Verify the installed cable length, connector termination, mating module, and transmitter-supply wiring against the cabinet drawings before connecting a live field circuit.

Module 6: Quality Assurance SOP

The should be inspected as a complete cable assembly rather than as a simple connector.

• OEM identification visual inspection: Verify HIMA markings, reference, complete suffix where present, label quality, connector body, and cable identification.
• Variant verification: Record the entire ordering string from the nameplate. For the commonly listed configuration, confirm /6217/C5/ITI rather than documenting only .
• Mechanical inspection: Check connector locking features, strain relief, cable jacket, bends, sealing surfaces, and any visible signs of impact, abrasion, contamination, or moisture ingress.
• Cable continuity test: Verify conductor-to-conductor continuity against the approved wiring documentation and confirm that no unintended short exists between adjacent circuits.
• Insulation verification: Where authorized by the HIMA wiring specification, perform insulation-resistance testing with the appropriate test voltage and protect any sensitive connected electronics from the test.
• Transmitter-supply verification: Where the exact variant includes transmitter supply, confirm the supply path and terminal assignment against the approved circuit diagram before applying external power.
• Connector mating test: Verify correct mechanical engagement with the intended HIMA mating interface and confirm that locking hardware operates correctly.
• Power-on functional check: When a complete test setup is available, verify the connected channel’s expected signal path and transmitter-supply behavior after installation.
• Final QC record: Retain photographs of the complete part number, cable length, connector condition, continuity results, test-equipment identification, and final QC approval.

The important identification point is that HIMA is a cable-plug reference, not a generic HIMA I/O module. The detailed product references consistently associate the family with pre-wired cable assemblies, including the /6217/C5/ITI version with a 5 m cable and transmitter supply. Match the complete suffix and physical termination before releasing a replacement to the field.
