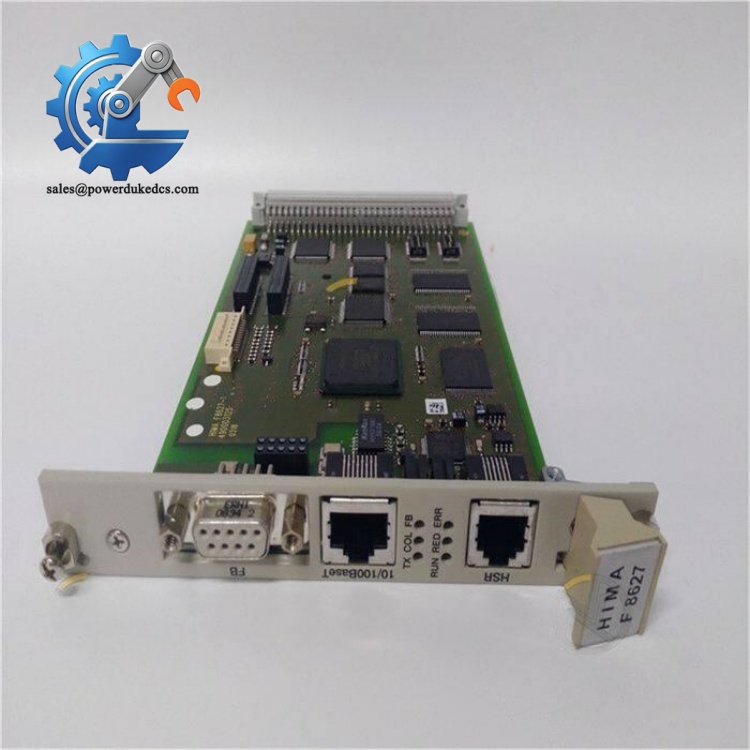

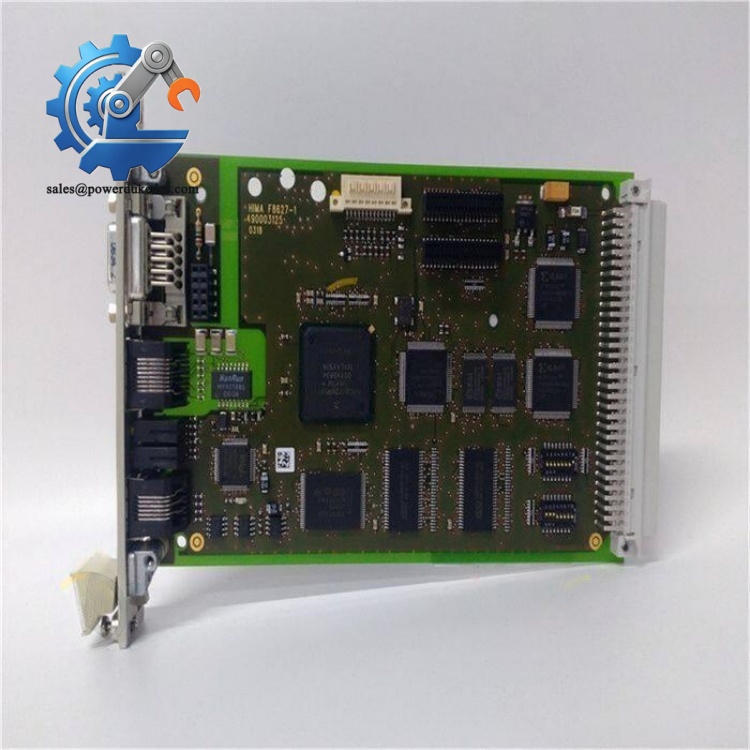

1. HIMA F8627 | Industrial Safety PLC Network Unit

2. Unboxing & Physical Snapshot

• Model & Brand: HIMA F8627 Communication Module. This module provides Ethernet connectivity for HIMA safety systems, supporting safeethernet communication, OPC DA via HIMA OPC server, and Ethernet-based engineering access for compatible H41q/H51q safety systems.
• Approximate Physical Dimensions (W × H × D): Approximately 160 × 100 × 30 mm (6.3 × 3.9 × 1.2 in.) for the standalone module body. Rack installation uses a 19-inch system format, 3 height units (HU), and 4 width units (WU).
• Estimated Shipping Weight: Approximately 0.3–0.5 kg (0.7–1.1 lb) including ESD packaging and protective inserts.
• What’s in the Box:
  • HIMA F8627 communication module
  • Front panel assembly
  • RJ45 Ethernet interface
  • Anti-static (ESD) shielding bag
  • Protective foam packaging
  • Product identification label
  • Documentation when supplied

3. Product Introduction

The HIMA F8627 mounts into the HIMA H41q/H51q safety controller rack architecture, where the module occupies a dedicated communication position and connects through the internal rack bus. Verify the rack type, slot assignment, and Ethernet network configuration before installation. The retaining hardware must secure the module firmly (which prevents vibration-related connector faults in industrial environments).

This communication module provides the network interface required for safety-related data exchange using HIMA safeethernet technology. The hardware supports a 100Base-T Ethernet interface with RJ45 connection, OPC DA integration through the HIMA OPC server, and Ethernet-based programming functions depending on system configuration. Inspect the RJ45 port, front connector area, PCB condition, and module identification label before returning a stored spare to service.

4. Core Technical Specifications

Parameter	Value
Manufacturer	HIMA
Model Number	F8627
Product Type	Safety System Communication Module
Application Platform	HIMA H41q / H51q systems
Primary Function	Ethernet communication interface
Ethernet Interface	100Base-T Ethernet
Connector Type	RJ45
Supported Protocols	safeethernet, OPC DA via HIMA OPC server
Engineering Access	ELOP II programming via Ethernet (system dependent)
Supply Voltage	24 VDC
Data Transfer Rate	Up to 100 Mbps
Mounting Format	19-inch rack system
Rack Height	3 HU
Rack Width	4 WU
Operating Temperature	-20°C to +60°C
Approximate Dimensions	160 × 100 × 30 mm
Cooling Method	Rack airflow / natural convection
Safety Application	HIMA safety controller communication

HIMA F8627

5. Global Compliance & Industry Certifications

Expected regulatory approvals and compliance considerations for the HIMA F8627 include:

• CE Mark compliance for applicable HIMA safety system installations
• IEC 61508 safety lifecycle compliance when used within an approved HIMA safety system configuration
• UL/cUL recognition where applicable to the complete safety controller assembly
• ATEX/IECEx suitability only when installed as part of an approved hazardous-area system
• FM hazardous location approvals may apply to qualified HIMA system configurations
• EMC compliance according to industrial control equipment requirements

For safety communication modules, certification applies to the complete validated safety architecture rather than the isolated circuit board. Incorrect rack configuration, grounding, or network installation can invalidate the approved safety application.

Verify specific lot certifications with OEM.

6. Long-Term Storage & Asset Preservation Guide

Keep the HIMA F8627 inside the original anti-static (ESD) shielding bag during warehouse storage. The RJ45 connector, internal contacts, and PCB surfaces should remain protected from dust and humidity exposure.

Maintain storage humidity below 60% RH to prevent connector oxidation and conformal coating degradation. Avoid placing the module near corrosive chemicals, battery charging areas, or uncontrolled outdoor storage locations.

Before installation, inspect the Ethernet port, housing, mounting tabs, and identification label. Record the serial number, hardware revision, firmware status, and storage history in the spare-part database.

7. Physical Installation Prerequisites

• Install only in a compatible HIMA H41q/H51q rack system.
• Confirm the correct rack position before insertion.
• Verify 24 VDC supply wiring and polarity.
• Ensure protective earth grounding of the controller cabinet.
• Maintain adequate cabinet airflow for convection cooling.
• Leave approximately 50 mm clearance above and below rack ventilation paths where practical.
• Use approved Ethernet cabling and shield termination practices.
• Confirm network configuration before commissioning.


  HIMA F8627

8. Buyer’s FAQ (Logistics & Compliance Focus)

Q: What HS Tariff Code is commonly used for the HIMA F8627?

A: Communication modules for industrial safety systems are commonly evaluated under HS classifications covering electronic control and communication assemblies, often within HS 8537 or HS 8517 categories depending on the declared function. Final classification should be confirmed by the importing customs broker.

Q: Does Country of Origin affect importing the HIMA F8627?

A: Yes. COO affects customs declarations, supplier qualification records, and industrial traceability. Confirm origin through the module label, commercial invoice, and supplier documentation before shipment.

Q: Is shipping insurance recommended for the HIMA F8627?

A: Recommended. Although compact, this safety communication module contains sensitive network electronics and precision connectors. Use ESD protection, impact-resistant packaging, and receiving inspection records.

Q: Does the HIMA F8627 include the latest firmware pre-loaded?

A: Firmware availability depends on the module revision and previous system history. The communication module may contain installed firmware components, but the correct version must be verified against the existing HIMA safety controller configuration before commissioning.
