HIMA Z6013 | Decoupling Fusing Module

Description

• Brand: HIMA
• Full Model Number: Z6013
• System/Series Family: H41q / H51q Safety Controller Systems
• One-Sentence Core Function: Decoupling and fusing module for protected supply of watchdog-related circuits
• Top 3 Hardcore Specs: 1.6 A slow-blow fuse; 5 × 20 mm fuse format; internal HIMA fuse P/N 57 0174169
• Stock Status: New Surplus / Factory Original — verify exact revision and fuse condition before shipment

Module 3: Technical Product Introduction

A watchdog or monitoring circuit should not lose its protective supply because one upstream branch has been wired incorrectly. The HIMA Z6013 is a decoupling and fusing component used in H41q/H51q system assemblies. HIMA system documentation places Z6013 in the protected supply path for the watchdog signal, while the corresponding internal fuse is specified as a 1.6 A slow-blow, 5 × 20 mm fuse, HIMA part number 57 0174169.

This distinction is important during troubleshooting. Z6013 is not an application CPU or conventional I/O card; it provides electrical protection and decoupling within the system power/monitoring architecture. HIMA wiring documentation shows Z6013 alongside F7126 power supplies and F7131 power-supply monitoring in H51q assemblies, with the Z6013 branch carrying the protected circuit associated with the watchdog/I/O-rack supply arrangement.

Module 4: Application Scenarios & Field Realities

• In an H41q-HS/HRS assembly, is used as part of the protected supply arrangement for the watchdog signal. HIMA system documentation lists two modules in the assembly kit, one associated with each redundant supply path.
• When a watchdog or power-monitoring fault appears after maintenance, inspect the branch and its fuse before replacing an F7126 or controller module. The documented 1.6 A fuse is a specific protection element, not a generic spare selected by physical size alone.
• During H51q cabinet refurbishment, the should be checked together with the associated wiring and supply-monitoring circuit. HIMA’s wiring diagrams show connected within the same assembly that contains F7126 power supplies, F7131 monitoring, and the watchdog connection to the I/O rack.
• For legacy spare-part inventory, retain the designation and the specified internal fuse reference together. Confusing with the related Z6011 component is an easy procurement mistake: HIMA documentation specifies 4 A slow-blow internal fusing for Z6011 but 1.6 A slow-blow for .

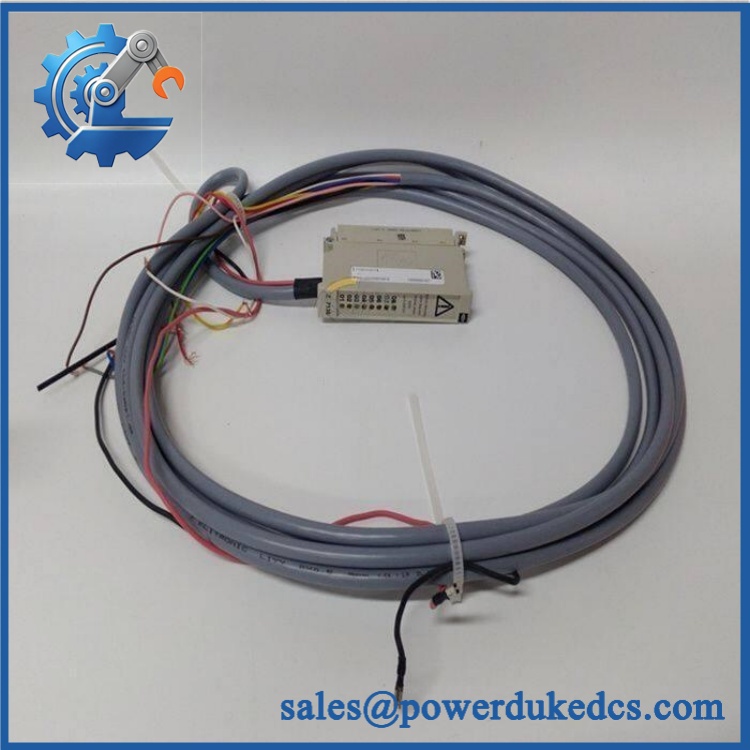

HIMA Z6013

Module 5: Migration, Compatibility & Installation Traps

Replacement Matrix

⚠️ Field Traps — Watch Out

1. Do not substitute the fuse with the Z6011 rating.
The two components are different protection points. HIMA documentation specifies 1.6 A slow-blow, 5 × 20 mm for and 4 A slow-blow, 5 × 20 mm for Z6011. Installing the wrong rating changes the intended fault-protection behavior.

2. Confirm the circuit served by the module.
HIMA documentation identifies as the decoupling/fusing element for the watchdog signal supply in relevant H41q/H51q assemblies. It should not be wired as though it were a general-purpose 24 VDC distribution module.

3. Check the redundant branch before energization.
In redundant H41q/H51q configurations, may appear in more than one supply path. Photograph the original wiring and terminal positions before removal, then verify each branch independently after replacement.

Module 6: Quality Assurance SOP

1. OEM anti-counterfeit visual inspection — inspect HIMA markings, model identification, enclosure, mounting features, terminals, and visible manufacturing details.
2. Exact part-number verification — confirm against the purchase order, physical label, and inventory record.
3. Application verification — confirm that the intended installation is an H41q/H51q assembly and identify whether the module serves the documented watchdog/protected-supply branch.
4. Fuse inspection — verify the internal fuse specification as 1.6 A slow-blow, 5 × 20 mm, with HIMA part number 57 0174169 where the applicable assembly uses that documented fuse.
5. Mechanical inspection — inspect the module housing, fuse holder, connectors, terminals, mounting points, and insulation barriers for damage or contamination.
6. Continuity verification — test the applicable protected supply path from input through the fuse/protection stage to the designated output circuit.
7. Fuse-fault simulation — where the approved test fixture permits, simulate an open-fuse condition and verify the associated monitoring response without exposing connected equipment to uncontrolled fault energy.
8. Supply verification — energize the module within the confirmed system supply conditions and verify correct voltage transfer through the protected branch.
9. Power-on self-test (POST) — not a standalone function. The module should instead be evaluated through the complete H41q/H51q power and watchdog-monitoring architecture.
10. Communication handshake verification — not applicable as a standalone test, because does not provide a digital communications interface.
11. Final QC and packaging — document the exact part number, fuse rating, continuity results, visual inspection, installation configuration, and packaging condition before shipment.

Engineering note: The strongest available technical documentation identifies as a decoupling and fusing component, with a 1.6 A slow-blow 5 × 20 mm internal fuse. HIMA assembly documentation places it in the watchdog/protected-supply circuitry of H41q/H51q systems.
