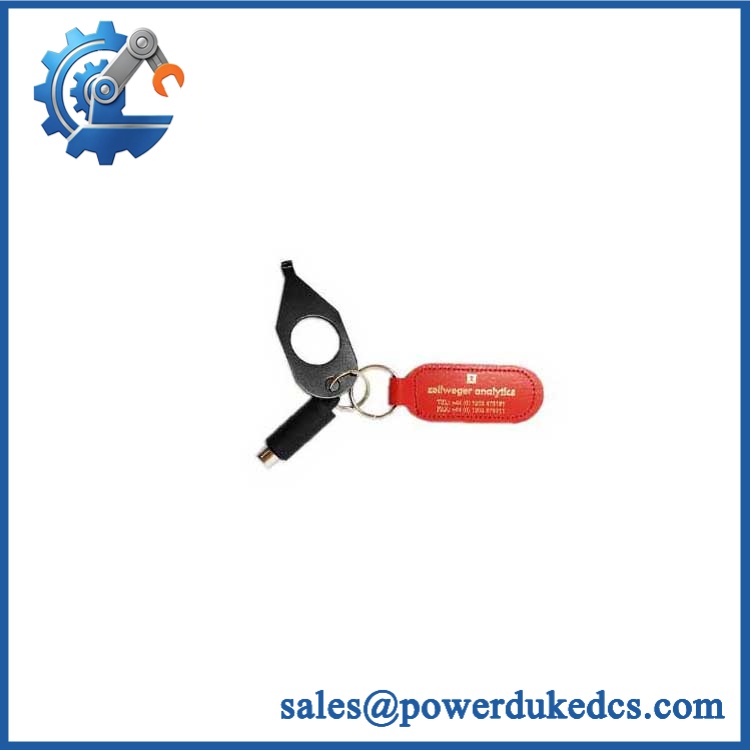

HONEYWELL 05701-A-0550 | 5701 Control System Key Kit Assembly

• Model: HONEYWELL 05701-A-0550
• Brand: Honeywell Analytics
• Series: System 57 / 5701 Control System
• Part Type: Calibration Plug / Key Kit Accessory
• Core Function: Provides the required maintenance interface accessory for System 57 control racks, supporting card access and calibration-related service operations.
• Primary Use: Fixed gas detection systems, fire and gas monitoring panels, and Honeywell System 57 maintenance activities.
• Key Specifications:
  • Compatible with Honeywell System 57 / 5701 controllers
  • Used as a maintenance accessory rather than an active control module
  • Rack service and card handling support
  • Installed during commissioning or maintenance procedures
  • Associated with System 57 spare parts inventory

Product Introduction

Maintenance access becomes critical when servicing fixed gas detection systems that must remain available around the clock. The Honeywell 05701-A-0550 is a System 57 accessory item used during maintenance activities, supporting calibration and service procedures for 5701 control system installations.

In field deployments, this component is normally stored with System 57 spare hardware rather than installed as a continuously operating electronic module. Keep it with the correct controller rack documentation because incorrect service accessories can delay troubleshooting during gas detection system maintenance (especially in facilities with restricted shutdown windows).

Core Technical Specifications

HONEYWELL 05701-A-0550

Application Scenarios & Pain Points

A missing maintenance accessory can extend troubleshooting time when a gas detection controller requires inspection or calibration.

• Oil and gas terminals: System 57 panels rely on proper maintenance procedures to keep fixed gas detection channels available.
• Chemical processing plants: Service accessories are retained with spare parts because safety systems may require controlled intervention during maintenance.
• Power generation facilities: Older Honeywell gas monitoring installations often maintain System 57 accessories as part of lifecycle support.
• Industrial boiler areas: Gas detection panels require periodic inspection, calibration, and service access.
• Legacy safety installations: Facilities operating older 5701 systems often keep original accessories to avoid compatibility issues during maintenance.

Common Error Codes & Diagnostic Symptoms

Symptom/Code: Calibration Procedure Cannot Be Completed
→ Diagnosis: Missing, damaged, or incorrect maintenance accessory may prevent proper service access.
→ Action: Verify the required System 57 calibration accessory and replace the 05701-A-0550 if damaged.

Symptom/Code: Card Removal / Maintenance Access Difficulty
→ Diagnosis: Incorrect extraction or service tooling may be used during controller maintenance.
→ Action: Use the correct Honeywell System 57 accessory kit.

Symptom/Code: Spare Kit Mismatch During Planned Maintenance
→ Diagnosis: Incorrect spare part identification within the System 57 inventory.
→ Action: Confirm part number before maintenance activities.

Cross-Reference & Lifecycle Migration

• Related System 57 Parts:
  • 05701-A-0361 — Engineering Card
  • 05701-A-0325 — DC Input Card
  • 05701-A-0301 — Single Channel Control Card (4–20 mA)
  • 05701-A-0283 — Sensor Drive Module (4–20 mA)
• Compatibility Notes:
  • Designed for Honeywell System 57 / 5701 installations.
  • Verify controller generation before ordering.
  • Confirm accessory requirements from the installed rack documentation.
• Firmware Requirements:
  Not applicable. The 05701-A-0550 is a passive maintenance accessory rather than a programmable control module.
• Lifecycle Status: Legacy / Obsolete Support Item
  • System 57 products remain installed in many industrial facilities.
  • Recommended strategy: retain original maintenance accessories with existing safety system spare inventory.
• Migration Strategy:
  Replacement of System 57 installations may require complete gas detection panel migration, sensor compatibility review, wiring verification, and safety validation.

Field Engineer’s Tech Notes (Anti-Pitfall Guide)

1. Do not classify this item as an electronic I/O spare.
   The 05701-A-0550 does not replace a controller card or sensor module. It belongs to the maintenance accessory category.
2. Store it with the System 57 documentation package.
   Small service items are often misplaced during long maintenance cycles, creating unnecessary delays during emergency troubleshooting.

Strict QA & Testing SOP

Step 1 — Incoming Inspection

• Verify Honeywell 05701-A-0550 marking.
• Confirm accessory type.
• Inspect physical condition.
• Photograph received item.

Step 2 — Mechanical Inspection

• Check connector/key structure.
• Inspect for cracks, wear, or deformation.
• Verify correct dimensions.

Step 3 — Compatibility Verification

• Confirm System 57 / 5701 application.
• Match against maintenance documentation.
• Verify spare inventory records.

Step 4 — Functional Service Check

• Confirm proper fit with compatible System 57 hardware.
• Verify maintenance access operation.

Step 5 — Packaging Control

• Store in protective packaging.
• Prevent contamination of contact surfaces.
• Label clearly with part number.

Test videos are available for verified inspection records.

Buyer’s FAQ (Dynamic Q&A)

Q: Is the Honeywell 05701-A-0550 a controller module?

A: No. It is a System 57 maintenance accessory used for service and calibration activities, not a signal processing or control card.

Q: How do I verify an original 05701-A-0550?

A: Confirm the Honeywell part marking, System 57 compatibility, physical condition, and supplier inspection documentation.

Q: Does this item contain firmware?

A: No. The 05701-A-0550 is a passive accessory and does not contain programmable firmware.

Q: What should be checked before international shipment?

A: Confirm part number accuracy, Country of Origin documentation, packaging protection, and whether the item is supplied as New Original, New Surplus, or refurbished. For legacy safety-system accessories, correct identification is the main compliance concern.
