1. ICS Triplex 9300 | Traceable Trusted System Hardware

Unboxing & Physical Snapshot

• Model & Brand: ICS Triplex 9300
• Product Type: Trusted TMR I/O Backplane / Chassis Assembly
• Application: The ICS Triplex 9300 is associated with the Trusted™ TMR safety system hardware platform and is used as an I/O backplane assembly for connecting Trusted modules within a fault-tolerant controller architecture. Some references identify the 9300 designation with the 9852 hardware family used for Trusted communication/expander applications; verify the exact hardware identification label before replacement.
• Approximate Physical Dimensions (W × H × D):
  • Width: approximately 483 mm (19-inch rack format)
  • Height: approximately 133 mm (3U chassis height)
  • Depth: approximately 300 mm
  • Actual dimensions depend on chassis revision and installed assemblies.
• Estimated Shipping Weight: Approximately 5–8 kg including rack hardware, protective inserts, and export packaging.
• What’s in the Box:

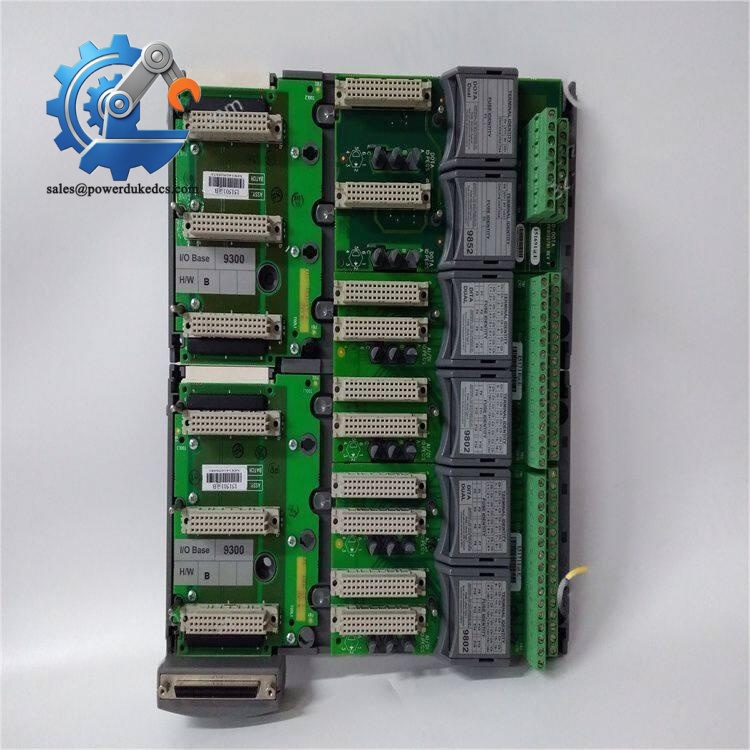

  • ICS Triplex 9300 chassis/backplane assembly
  • Rack frame structure
  • Module slot connectors
  • Mounting hardware
  • Protective ESD packaging where applicable
  • Documentation package when supplied through controlled inventory

Product Introduction

The 9300 provides the mechanical and electrical foundation where Trusted modules communicate through the system backplane. It is not a standalone controller; instead, it forms part of the larger TMR cabinet architecture by providing module interconnection paths, power distribution, and communication continuity between installed safety components (which is critical in high-availability process protection systems).

Treat this assembly as a precision safety infrastructure component. Before installation, inspect the backplane contacts, card guides, chassis rails, grounding points, and mounting hardware. A damaged connector surface or misaligned rack section can create intermittent faults that are difficult to diagnose during commissioning. Confirm the exact part number, revision level, and approved system drawings before replacement.

Core Technical Specifications

ICS Triplex 9300

Global Compliance & Industry Certifications

Expected compliance considerations for the ICS Triplex 9300 include:

• CE Mark for EMC compliance when installed as part of an approved Trusted safety system.
• UL/cUL Listed or Recognized status depending on the complete certified control cabinet assembly.
• IEC 61508 SIL capability when incorporated into a validated Trusted TMR safety architecture.
• ATEX/IECEx consideration for installations operating in classified hazardous areas.
• Marine approvals such as DNV GL where the complete automation package is approved for offshore or marine service.

IEC 61508 relevance is significant because the chassis provides the physical communication path between safety modules. Poor grounding, incorrect assembly, or unapproved hardware substitutions can affect the validated safety installation.

Verify specific lot certifications with OEM.

Long-Term Storage & Asset Preservation Guide

• Store the 9300 chassis in a dry indoor environment with connector areas covered. Protect the backplane contacts from airborne contamination and oxidation.
• Maintain warehouse humidity below 60% RH to reduce corrosion risk on metal contacts, grounding points, and mounting hardware.
• Inspect stored chassis assemblies every 12–24 months. Check card guides, rack rails, connector alignment, and identification labels before releasing the asset.

Keep protective covers installed. Dust inside a safety rack can create unexpected maintenance issues years later.

Physical Installation Prerequisites

• Install inside a compatible 19-inch industrial automation cabinet.
• Secure the chassis using approved rack mounting hardware.
• Leave at least 50 mm clearance above and below the rack assembly to support cabinet airflow.
• Verify cabinet protective earth connection before module installation.
• Inspect backplane connectors for bent contacts, contamination, or mechanical damage.
• Confirm module slot arrangement matches approved system documentation.
• Use ESD protection when handling modules inserted into the chassis.
• Verify power distribution and grounding before commissioning.

ICS Triplex 9300

Buyer’s FAQ (Logistics & Compliance Focus)

Q: What HS Tariff Code is commonly reviewed for the ICS Triplex 9300?
A: Industrial control chassis and backplane assemblies are commonly evaluated under HS 8537 or related electrical control equipment classifications. The final tariff code depends on the importing country’s customs interpretation and the declared function.

Q: Why is Country of Origin (COO) documentation important for the 9300?
A: COO records support customs clearance, supplier qualification, and lifecycle traceability. Match the COO information with the equipment label, commercial invoice, packing list, and receiving inspection records.

Q: Should shipping insurance be purchased for the 9300 chassis?
A: Yes. Rack assemblies contain precision backplane connectors and mechanical alignment structures. Use shock protection, moisture barriers, and declared-value freight insurance for international transport.

Q: Does the ICS Triplex 9300 include the latest firmware pre-loaded?
A: No. A chassis/backplane assembly does not normally contain application firmware. Firmware management applies to installed Trusted processor, communication, and I/O modules. Verify all installed module revisions before system startup.
