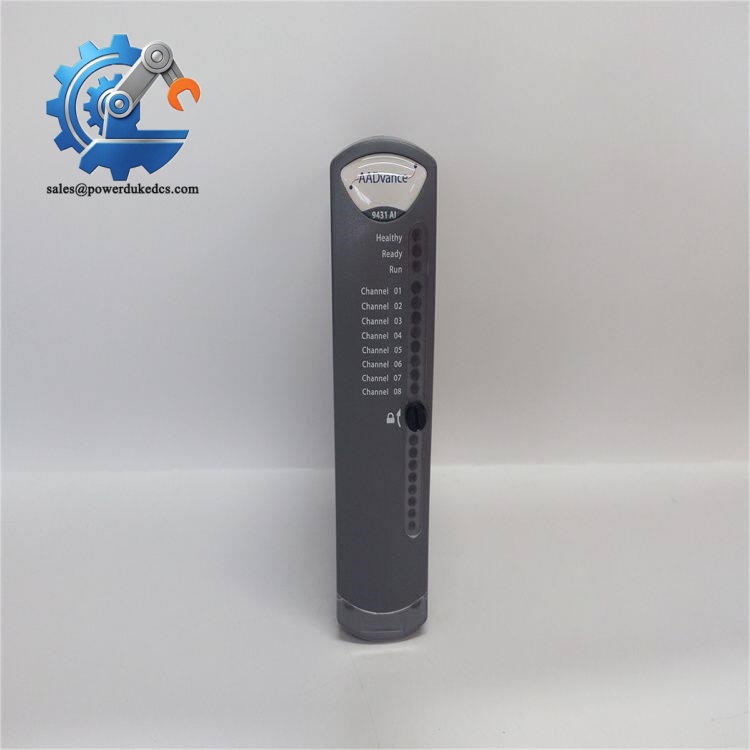

- ICS Triplex T9431 | Authentic Industrial Safety Controller
2. Unboxing & Physical Snapshot
- Model & Brand: ICS Triplex T9431
- Product Type: Trusted™ / AADvance™ Analog Input Module designed for safety-related process monitoring applications. The T9431 provides 8 isolated analog input channels and supports SIL-rated architectures within the ICS Triplex AADvance platform.
- Approximate Physical Dimensions (W × H × D):
- 42 × 166 × 118 mm
- Compact modular controller format designed for AADvance system installation.
- Estimated Shipping Weight:
- Module weight: approximately 280 g (0.62 lb)
- Typical packaged shipping weight: approximately 0.5–0.8 kg depending on protective materials.
- What’s in the Box:
- ICS Triplex T9431 Analog Input Module
- Module identification label
- Terminal interface compatibility documentation
- Anti-static (ESD) shielding bag
- Protective foam packaging
- Original manual or technical documentation when supplied
3. Product Introduction
The ICS Triplex T9431 operates inside the AADvance safety controller architecture where analog process measurements must be acquired with predictable diagnostic behavior. Temperature transmitters, pressure transmitters, flow instruments, and other 4–20 mA devices depend on accurate signal conversion before the safety processor evaluates process conditions (—which is critical during shutdown demand scenarios).
This module is an isolated analog input interface, not a general-purpose PLC analog card. The eight input channels, backplane interface, and diagnostic functions must match the approved safety configuration. The metal contact surfaces, connector alignment features, and retaining mechanism require careful handling during replacement because contamination can introduce measurement errors. Check the hardware revision before commissioning.
4. Core Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ICS Triplex / Rockwell Automation |
| Model | T9431 |
| Product Family | AADvance Controller Series |
| Module Type | Isolated Analog Input Module |
| Input Channels | 8 channels |
| Input Signal Range | 0–24 mA |
| Nominal Input Range | 4–20 mA |
| Input Voltage Capability | 0–32 VDC |
| Channel Isolation | Supported |
| Safety Integrity Level | IEC 61508 SIL 3 capable within approved architectures |
| Safety Configurations | 1oo1D, 1oo2D, 2oo3D |
| Resolution | 15-bit, approximately 0.98 µA |
| Measurement Accuracy | ±0.05 mA at 25°C |
| Self-Test Interval | System dependent, less than 1 hour |
| Sample Update Interval | 6 ms |
| Module Supply Voltage | 18–32 VDC backplane supply |
| Power Consumption | Approximately 3.3 W |
| Heat Dissipation | Approximately 11.3 BTU/hr |
| Maximum Backplane Current | Approximately 260 mA |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5–95% RH non-condensing |
| Housing Material | Non-flammable plastic enclosure |
| Mounting Method | AADvance controller chassis / DIN rail system |
ICS Triplex T9431
5. ? Global Compliance & Industry Certifications
Expected compliance considerations for the ICS Triplex T9431 include:
- CE Mark: Applicable when installed as part of a compliant AADvance safety controller system meeting EMC and electrical safety requirements.
- IEC 61508 Functional Safety: The T9431 supports SIL 3 safety architectures when configured according to certified system requirements.
- UL/cUL Listed: May apply depending on the complete controller assembly and certification scope.
- ATEX / IECEx: The module itself is not a standalone hazardous-area field device. Hazardous-area applications require certified barriers, enclosures, and complete system approval.
- Marine Approvals (DNV GL): Applicable only when installed within approved marine automation equipment.
Functional safety documentation requires accurate module identification. Record the serial number, hardware revision, firmware level, and installed chassis location before returning equipment to service.
Verify specific lot certifications with OEM.
6. ? Long-Term Storage & Asset Preservation Guide
Store the T9431 inside the original anti-static (ESD) shielding bag. The analog input circuitry and connector contacts are sensitive to electrostatic discharge and contamination.
Maintain warehouse humidity below 60% RH. Avoid storage areas with condensation cycles because moisture can affect connector plating and analog measurement stability.
Inspect the module every 12–24 months. Check the connector pins, enclosure surface, terminal interface area, and identification label. Before installation, compare the spare hardware revision with the validated AADvance configuration database.
7. Physical Installation Prerequisites
- Install the T9431 only in a compatible ICS Triplex AADvance controller chassis.
- Confirm the correct module position before insertion.
- Ensure terminal assemblies and field wiring match approved engineering drawings.
- Secure the module using the approved retaining mechanism.
- Maintain cabinet airflow for convection cooling.
- Leave approximately 50 mm clearance above and below rack ventilation areas where required by enclosure design.
- Verify protective earth grounding of the cabinet.
- Separate analog signal cables from high-voltage switching conductors.
- Complete loop calibration and safety validation after replacement.
8. Buyer’s FAQ (Logistics & Compliance Focus)
Q: What HS Tariff Code is commonly used for an ICS Triplex T9431 shipment?
A: Industrial analog input modules are commonly reviewed under HS 8538 or related industrial control equipment classifications. The final tariff code depends on the declared function, customs interpretation, and importing-country regulations.
Q: Does Country of Origin (COO) documentation matter for the T9431?
A: Yes. COO records support customs clearance, import compliance, and safety asset traceability. Verify that the COO information matches the product label, commercial invoice, and shipping documents.
Q: Should the T9431 be shipped with insurance coverage?
A: Recommended. Analog modules contain precision measurement circuits where hidden impact damage may appear only during loop testing or safety validation.
Q: Does the ICS Triplex T9431 include the latest firmware pre-loaded?
A: Firmware availability depends on the manufacturing revision and service history. Confirm the installed firmware version, hardware revision, and AADvance configuration compatibility before commissioning.
