HIMA F60DO801 | HIMatrix F60 Eight Channel Digital Output

Description

• Brand HIMA
• Full Model Number F60DO801 / Order No. 98 2200112
• System/Series Family HIMatrix F60
• Core Function 8-channel safety-related digital output interface for switching field actuators
• Top 3 Hardcore Specs 8 digital outputs | 24 VDC system supply | Up to 0.5 A per output
• Stock Status New Surplus — verify revision and physical condition before shipment

Module 3: Technical Product Introduction

A failed output channel in a HIMatrix safety controller can leave a shutdown valve, solenoid, relay, or other final element unavailable even though the controller CPU remains operational. HIMA F60DO801 is an 8-channel digital output module for the HIMatrix F60 platform, translating safety-logic commands into discrete field signals. Available technical references identify Order No. 98 2200112 and describe the outputs as solid-state, short-circuit protected channels intended for safety-related service.

For replacement work, the useful figures are the channel count, supply architecture, and output loading rather than a generic PLC output description. Published references specify 24 VDC system power and a maximum output load of 0.5 A per channel, while also documenting online channel diagnostics and protection functions. Exact electrical limits and approved load types should be checked against the system’s controlled HIMA documentation before commissioning (particularly for inductive loads and safety-related actuators).

Module 4: Application Scenarios & Field Realities

• In an emergency shutdown cabinet, the F60DO801 can provide discrete commands to field actuators such as shutdown solenoids or interposing relays. The eight-channel arrangement is useful where several independent final-element circuits must remain under the same HIMatrix safety architecture.
• Where a field output develops a short circuit or overload, the module’s documented protection and diagnostic functions become important. Troubleshooting should begin at the load and field wiring before condemning the output electronics, especially when only one channel reports an abnormal condition.
• For fire-and-gas or process shutdown functions, the output card should be evaluated as one element of the complete safety function, not as a standalone SIL claim. The controller configuration, field device, wiring, diagnostics, proof-test interval, and safety calculation all affect the achieved system performance.
• During an outage replacement, verify the order number and revision printed on the installed module. Current secondary references identify F60DO801 as 98 2200112, with a documented Rev. 00 reference; do not assume that every visually identical card has the same approved hardware baseline.

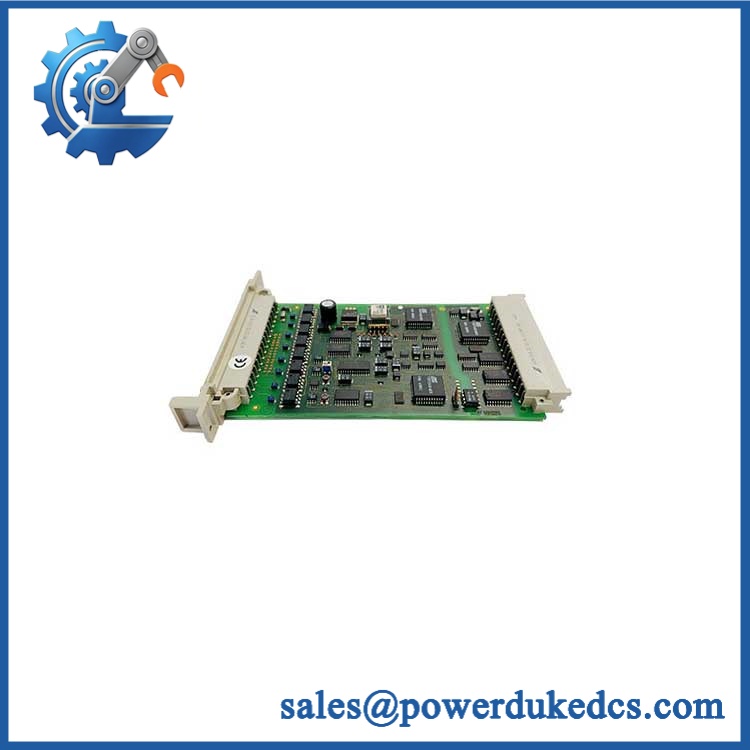

HIMA F60DO801

Module 5: Migration, Compatibility & Installation Traps

Replacement Matrix

⚠️ Field Traps: Watch Out

Do not size the entire module as a 4 A power source. The commonly published specification is up to 0.5 A per output channel. Each output circuit must be evaluated independently for load current, wiring resistance, inrush, and actuator characteristics.

Check the system configuration before powering the replacement. A hardware match alone does not prove system compatibility. Confirm the HIMatrix F60 controller configuration, module revision, backplane/interface condition, and approved engineering database before returning the rack to service. Secondary technical references specifically recommend checking hardware/firmware revision compatibility before replacement.

Inductive loads require particular care. Solenoid valves and contactors can generate switching transients that are not representative of a resistive bench load. Confirm the installed suppression arrangement and the load’s electrical characteristics against the applicable HIMA engineering documentation.

Do not use a generic PLC output card as a substitute. The F60DO801 is part of a safety-related HIMatrix architecture; channel behavior, diagnostics, system configuration, and fault reactions all matter.

Module 6: Quality Assurance SOP

Every surplus should undergo controlled inspection and functional testing before shipment. A visual pass alone is not sufficient for a safety-related output module.

• OEM anti-counterfeit visual inspection: Verify HIMA markings, designation, Order No. 98 2200112, revision marking, connector arrangement, housing, and label quality against controlled reference information.
• Part-number and revision check: Record the complete part number, revision, serial information, and manufacturing markings where available.
• Mechanical inspection: Examine the housing, backplane connector, terminal/field interface, locking features, and accessible hardware for impact, corrosion, contamination, bent contacts, or unauthorized repair.
• Power-on self-test (POST): Install the module in an appropriate HIMatrix F60 test arrangement and verify normal startup behavior and diagnostic status.
• 24 VDC supply verification: Apply a controlled system supply within the approved operating range and monitor voltage stability and abnormal current draw.
• Eight-channel output test: Exercise all eight channels individually using controlled test loads, verifying correct state transitions and output voltage/current behavior.
• Load simulation: Test representative resistive and, where the approved fixture permits, inductive loads within the documented channel limits. The commonly published maximum is 0.5 A per channel.
• Short-circuit protection test: Use a current-limited laboratory fixture to verify the expected protective response. Do not perform uncontrolled hard-short testing on a safety module.
• Diagnostic verification: Check channel status and module-level diagnostics while normal and intentionally induced test faults are applied. Published references describe online diagnostic monitoring and short-circuit/overload protection.
• Communication handshake verification: Because the is an I/O module rather than an Ethernet interface, verify successful module recognition and correct I/O exchange through the associated HIMatrix F60 controller rather than testing a standalone network protocol.
• Application-level functional test: Where the laboratory configuration permits, verify the complete chain from configured safety logic to output state and representative field-load response.
• Thermal observation: During an extended powered test, monitor enclosure and output behavior for abnormal temperature rise, intermittent faults, or channel drift.
• Final QC record: Document revision, supply voltage, eight-channel test results, diagnostic behavior, load conditions, visual inspection, traceability data, and packing status.

Technical Identification Note: is consistently identified in available technical references as an 8-channel HIMatrix F60 digital output module, with Order No. 98 2200112. Published specifications commonly state 24 VDC system operation and up to 0.5 A per output, but safety-system acceptance should rely on the controlled HIMA documentation for the exact hardware revision being installed.
